Riser Block, HiTorque Large Bench Mill
- Adds 2" (50 mm) to the head space
- For solid column bench mills
- Includes proper mounting hardware
- Fits HiTorque Large Bench Mills and SIEG SX3.5 mills
Part Number: 6532
Weight: 15.0 lb
Weight: 15.0 lb
Price: $59.95
Share this page:
http://lmscnc.com/6532
http://lmscnc.com/6532

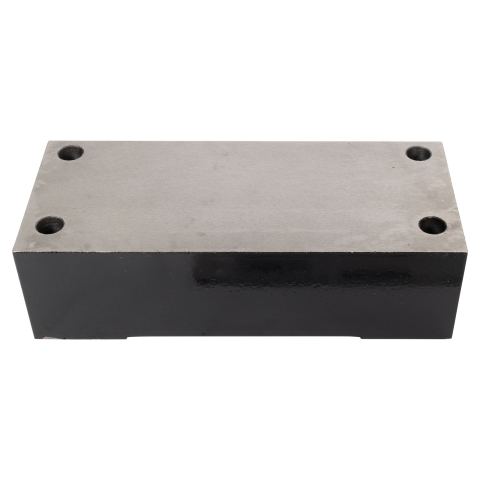

This riser block mounts between the base and the column, adding 50 mm (2") to the head room on the HiTorque Large Bench Mill.
This block is designed for the HiTorque large bench mill column and SIEG SX3.5 bench mills.
Mounting kit: four mounting studs and four locking nuts.
The studs are threaded on both ends and are M10 x1.5 thread, 90mm in length.
See the Compatibility tab for machines that work with this product.
| Length | 8" (215 mm) |
| Width | 4" (90 mm) |
| Height | 2" (50 mm) |
| Studs Threading | M10x1.5 |
| Studs Length | 4" (90 mm) |
Compatibility
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- SIEG X3.5 Large Bench Mill
- LittleMachineShop.com 6700 HiTorque Large Bench Mill
- LittleMachineShop.com 6750 HiTorque Large Bench Mill
- LittleMachineShop.com 6770 HiTorque Large Bench Mill
