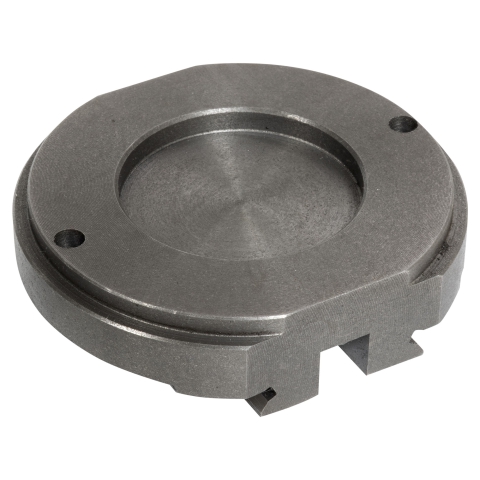

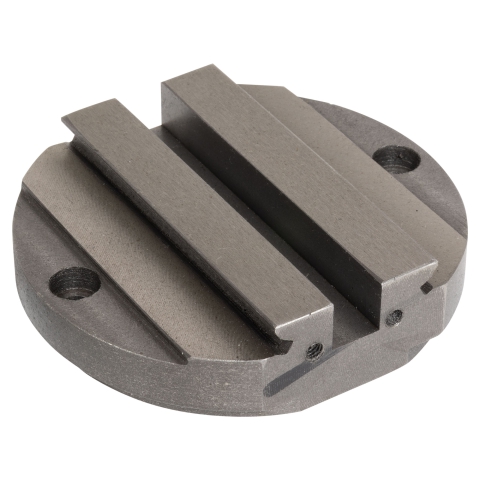

Mounting Disc, Compound Rest, 9x20 Bench Lathe

- Compound rest mounting base
- Circular for rotation
- Fits HiTorque 9x20 and SIEG SC50 bench lathes
Disc base for the compound rest on the HiTorque 9x20 and SIEG SC50 bench lathes.
A scale is mounted onto this disc to measure degrees of rotation.
The disc fits into a base plate and the compound rest top is mounted to the top of this disc.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
Item No | Models |
---|---|
2-02 | LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20 |
