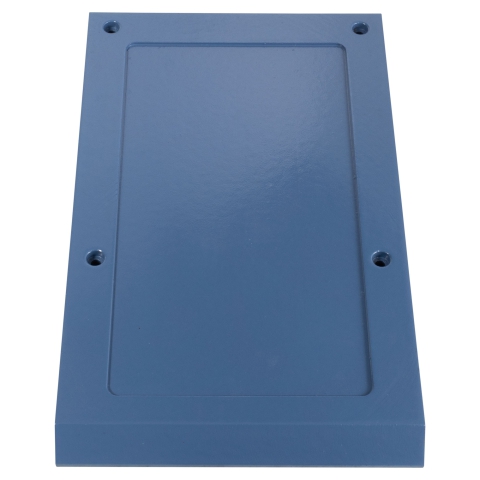

Cover, Headstock, 9x20 Bench Lathe
- Headstock cover plate
- Fits HiTorque 9x20 and SIEG SC50 bench lathes
- Provides foundation for rubber non-skit mat
- Attaches to headstock with four M4x10 cap screws
- Dimensions: 247mm (9.72") x 150mm (5.91") x 14mm (0.55")
Part Number: 6591
Weight: 5.95 lb
Weight: 5.95 lb
Price: $41.95
Share this page:
https://littlemachineshop.com/6591
https://littlemachineshop.com/6591
Headstock cover for the HiTorque 9 x 20 bench lathe and SIEG SC50 bench lathes. This cover holds a rubber mat (drawing #4-24) which is used to give a non-skid surface for the DRO Bluetooth display or as a tool tray.
The headstock cover is 247mm (9.72") x 150mm (5.91") x 14mm (0.55"). Tray is held in place by six M4x16 socket head cap screws (P/N 5128).
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| 4-04 | LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20 |
