Motor Bracket, 9x20 Bench Lathe

- Motor mounting bracket
- HiTorque 9x20 bench lathes
- Mounted using M8x25 socket head cap screws

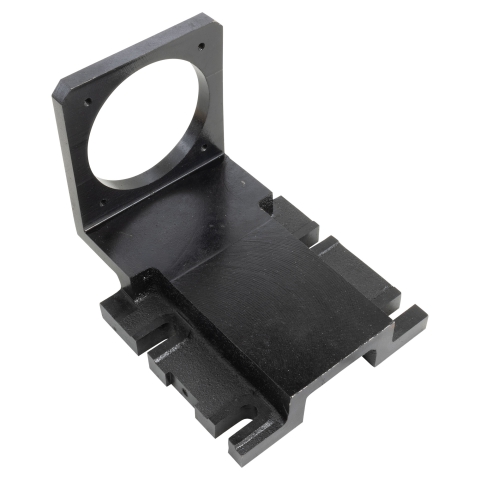

Mounting bracket for the HiTorque 9x20 bench lathes. This bracket is designed to hold the 1000 watt brushless motors for the HiTorque machines and the mounting cutouts are designed specifically to fit the 9x20 bench lathe bed.
The mounted bracket extends through the wall of the change gear cover, allowing the v-belt pulley to mount on the motor drive shaft.
The bracket is mounting using M8x25 socket head cap screws and M8 washers.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
Item No | Models |
---|---|
8-10 | LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20 |
