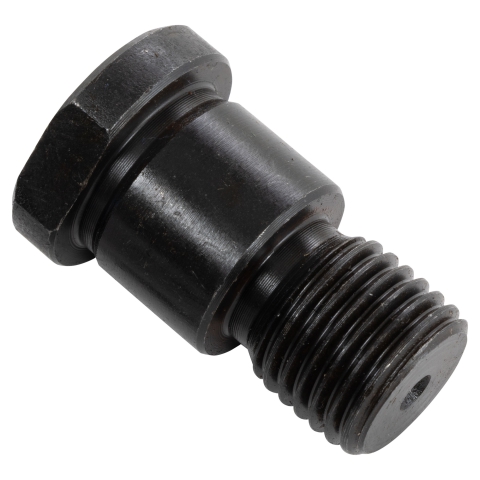

Pin, Belt Tensioner, 9x20 Bench Lathe

- Belt tensioner plate pin
- 14mm Threaded section, 16mm smooth section.
- Tighten with an 18mm wrench
Tensioner plate pin for the 9x20 bench lathes. It has a threaded end and a 16mm unthreaded section to allow the tensioner plate to rotate smoothly.
The pin has flattened sides on the head to allow an 18mm wrench to securely grasp for tightening.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
Item No | Models |
---|---|
8-22 | LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20 |
