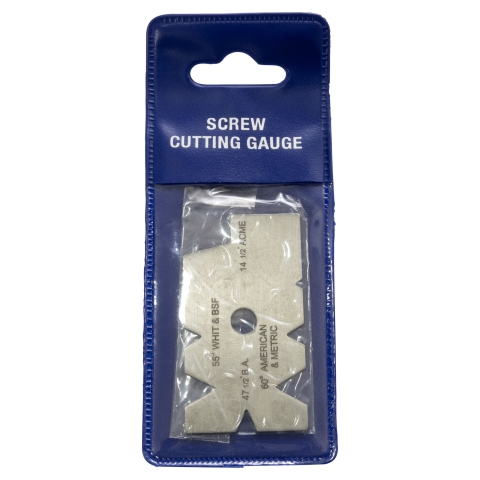

Screw Cutting Gage
- Stainless Screw Cutting Gage
- Cutting Angles of 60, 55, 47.5, and 14.5 degrees
- References for Whitworth, BSF, B.A., Metric, American National, and Acme thread angles
Part Number: 6691
Weight: 0.05 lb
Weight: 0.05 lb
Price: $4.95
Share this page:
https://littlemachineshop.com/6691
https://littlemachineshop.com/6691

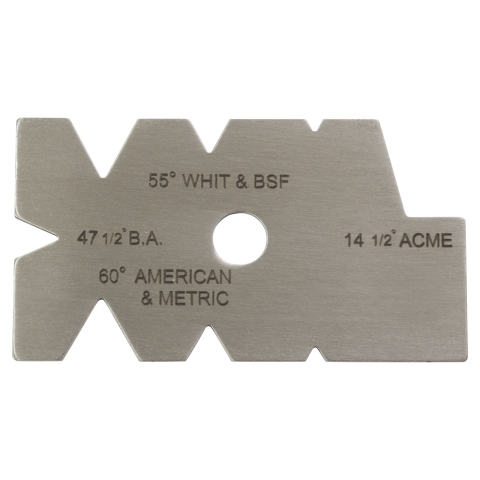

Used for checking tool angles while machining threads, this gage is made from polished stainless steel. Clearly marked on the gage are references for Whitworth, BSF, B.A., Metric, American National, and Acme thread angles.
Angles included are 55 degrees (Whitworth & BSF), 47.5 degrees (B.A.), 60 degrees (American National/Acme, and Metric), and 14.5 degrees (Acme).
