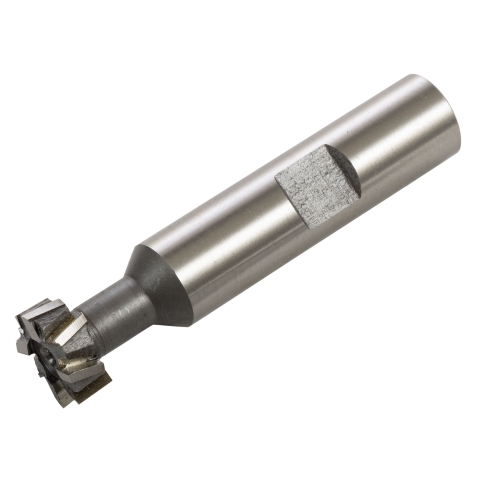

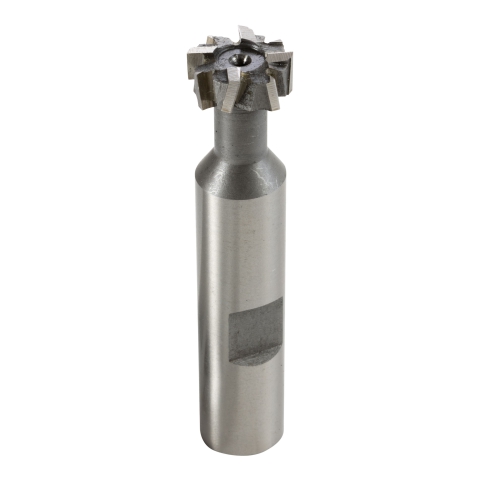

T-Slot Cutter, 1/4" T-slot, HSS
- For 1/4" T-slots (measured at the top of the T-slot)
- Cutting diameter 9/16", cutting width 15/64"
- Neck diameter 17/64", shank diameter 1/2", for bolt size 1/4"
- Undercut length 3/4", OAL 2-19/32, 8 teeth
- Positive radial rake, right and left-hand spiral
Part Number: 6705
Weight: 0.15 lb
Weight: 0.15 lb
Price: $76.95
Share this page:
https://littlemachineshop.com/6705
https://littlemachineshop.com/6705
T-slot cutting tools are designed to make T-slots in tables and beds.
Two milling cutters are required for milling T-slots, an end mill and a T-slot cutter. A 1/4" vertical slot is milled into the piece so that the neck and shank of the T-slot cutter can enter.
Our high speed steel 1/4" T-slot cutters have positive radial rake, right and left hand spiral with alternate side cutting teeth for maximum chip clearance.

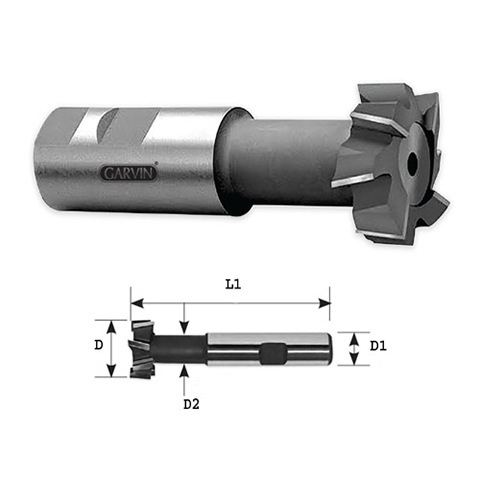

| T-Slot Width | 0.25" (6.3 mm) |
| Cutting Diameter | 0.562" (14.29 mm) |
| Cutter Width (Depth) | 0.234" (5.95 mm) |
| Bolt Size | 1/4" |
| Neck Diameter | 0.266" (6.75 mm) |
| Shank Diameter | 0.50" (12.7 mm) |
| Undercut Length | 0.547" (13.89 mm) |
| Overall Length | 2.5938" (65.883 mm) |
