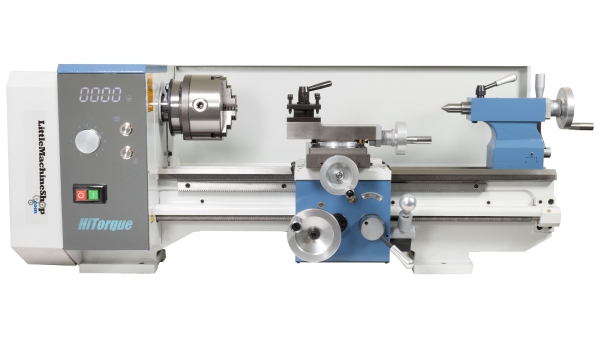

HiTorque 9x20 Bench Lathe, LED Mirror Display

HiTorque 9x20 Bench Lathe, LED Mirror Display
  • Inch dials, inch and metric threading
  • 1000 Watt (1.34 HP) brushless DC drive with spindle speed readout
  • Power longitudinal feed and power cross feed
  • Reversible lead screw for right and left hand threads
  • 5" (125 mm) 3-jaw self centering lathe chuck
Part Number: 7600
Weight: 290 lb

Price: $3,295.00

This product is currently backordered.

Estimated availability:
Unknown
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.


The LittleMachineShop.com model 7600 HiTorque9x20 Bench Lathe is the best in its class. No other metal lathes in this size offer power cross feed.

The 1000 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift. The updated control panel allows you to stop and then restart the lathe at a pre-selected speed.

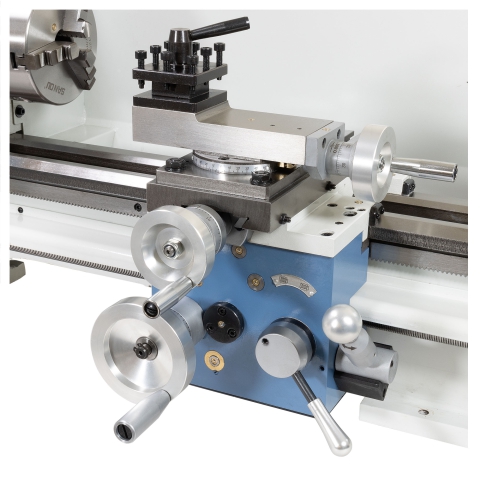

The cross feed and compound rest dials are graduated in 0.001" and advance 0.050" per turn. The metal lathe is equipped with a 4-way indexing tool post set for 10 mm tools.

A reversible 2 mm pitch lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 6 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 4 mm pitch with the change gears that are included. All the gears on this lathe are metal.

The LittleMachineShop.com model 7600 HiTorque 9x20 Bench Lathe is a version of the SIEG SC50 bench lathe.

*NOTE* We ship machines only to the US and Canada.

Chris Chris' Tips
The HiTorque 8.5x20 Bench Lathes offer extended threading capabilities. Here's a document that explains how to set the change gears on the HiTorque Bench Lathes.

View a comparison of the specifications for our lathes.

Here are the user's guides for our machines.

Features for the model 7600 lathe

  • NEW larger spindle through hole - 1.1" (28 mm) accepts 1" stock.
  • NEW greater swing from 8.5" to 9"
  • NEW easy-to-read LED display with built in speed readout
  • 1000 Watt output spindle motor with spindle speed display
  • Genuine NSK bearings
  • Metal gears
  • Induction hardened ways
  • Power longitudinal feed
  • Power cross feed
  • E-stop safety power switch
  • Spindle on-off button
  • Forward/reverse button for spindle and lead screw direction
  • Reversible lead screw allows for right- and left-hand threading
  • Extended threading capability - inch and metric threads
  • Zero-resettable dials graduated at 0.001" and advancing 0.050" per turn

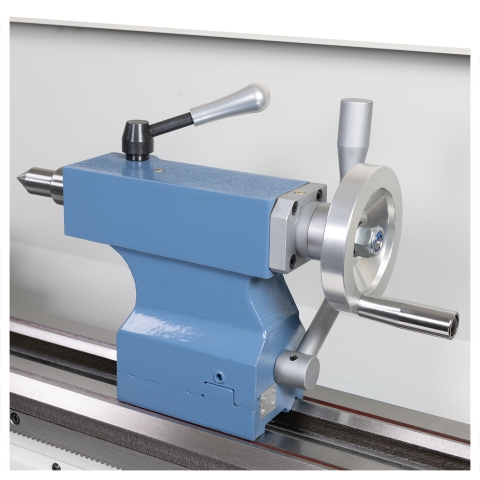

  • Cam-lock tailstock
  • Four-way tool post
  • 5" (125 mm) 3-jaw self centering lathe chuck
Specifications
Swing Over Bed 9" (230 mm)
Distance Between Centers 18.1" (460 mm)
Cross Slide Travel 4.7" (120 mm)
Swing Over Cross Slide 4.3" (110 mm)
Spindle Through Hole 1.1" (28 mm)
Spindle Taper #4 Morse taper
Tailstock Taper #2 Morse taper
Range of Threads 6-80 TPI; 0.25-4.0 mm
Spindle Motor Output 1.34 hp (1000 Watts)
Spindle Speed 100 - 2000 RPM
Power Requirements 120 V 60 Hz 15 Amps
Machine Weight 253 lbs (115 kg)
Crated Weight 315 lbs (143 kg)
Overall Dimensions (W x D x H) 36" x 25" x 18" (910 mm x 630 mm x 450 mm)
Crate Dimensions (W x D x H) 42" x 31" x 24" (1060 mm x 780 mm x 600 mm)

The Bench Lathe comes with the following:

  • 5" (125 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
  • 4-Way rotating tool post
  • A #4 Morse taper dead center for the headstock
  • A #2 Morse taper dead center for the tailstock

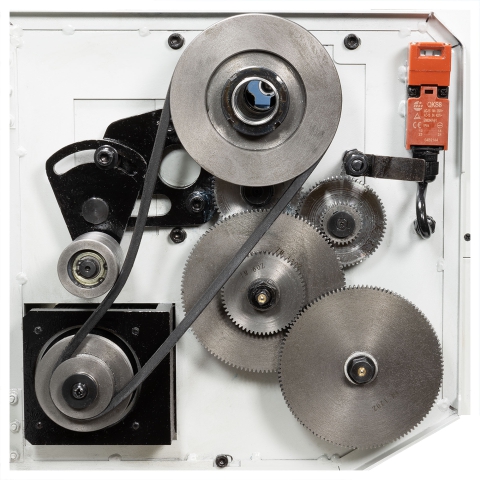

  • Change gear set - 187 Gears - 30*, 35, 40, 45, 49, 50, 55, 56, 60*, 70, 80, 85, 87, 90, 94, 100, 120*, 127 teeth
    * Installed on the lathe
  • Three open end wrenches: 8/10 mm, 14/17 mm, 17/19 mm
  • Five hex (Allen) wrenches: 2, 3, 4, 5, 6 mm
  • Users Manual
  • Inspection Report
