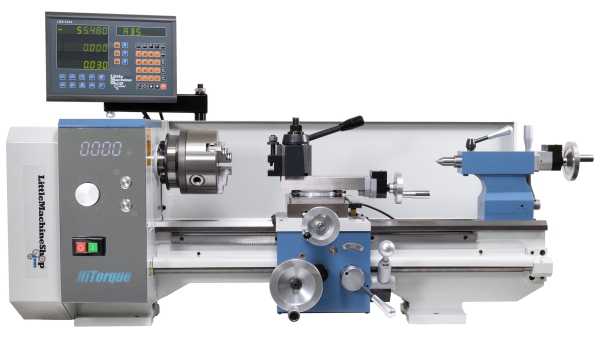

HiTorque 9x20 Deluxe Bench Lathe, LED Mirror Display
- DRO and digital dials, inch and metric threading
- 1000 Watt (1.34 HP) brushless DC drive
- Power longitudinal feed and power cross feed
- Reversible lead screw for right and left hand threads
- 5" (125 mm) 3-jaw self centering lathe chuck
Weight: 295 lb
Price: $3,995.00
This product is currently backordered.
Estimated availability:
Unknown
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.

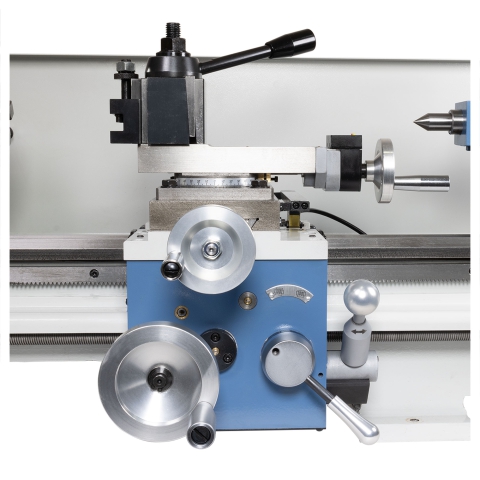

The Deluxe model includes digital readouts (DRO) on the compound rest, cross slide, carriage, and tailstock (cross slide and carriage DROs feed data via magnetic scales to a Bluetooth equipped tablet display). All DROs read equally accurately in inches and mm.
The Deluxe model also includes an AXA quick change tool post set with five tool holders; anodized aluminum hand wheels with black anodizing in the centers; chrome knobs and levers; and a heavy duty splash guard that covers the full bed length. In addition, the compound rest is modified to better accommodate the quick change tool post.
The 1000 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift. The updated control panel allows you to stop and then restart the lathe at a pre-selected speed.
A reversible 2 mm pitch lead screw provide extended threading capability. With our lathe machinery, you can create every American Standard Unified class 2A inch screw thread from 8 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.2 to 8 mm pitch with the change gears that are included. All the gears on this lathe are metal.
The LittleMachineShop.com model 7650 HiTorque 9x20 Bench Lathe for sale is a version of the SIEG SC50 bench lathe.
*NOTE* We ship machines only to the US and Canada.
Features for the model 7650 deluxe lathe
- NEW larger spindle through hole - 1.1" (28 mm) accepts 1" stock.
- NEW greater swing from 8.5" to 9"

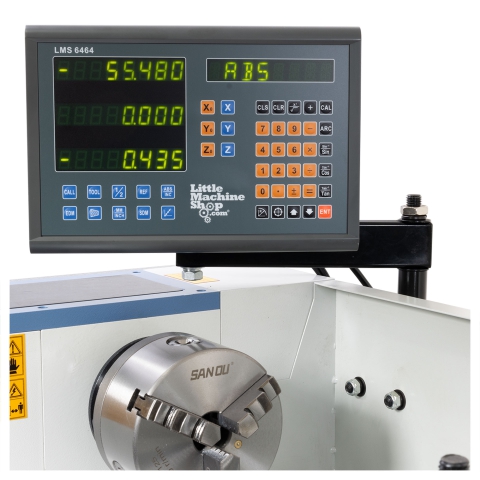

- NEW easy-to-read LED display with built in speed readout

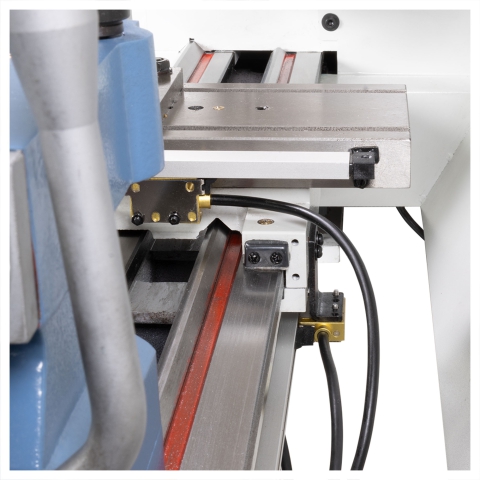

- NEW factory installed hard-wired DRO on cross slide and carriage

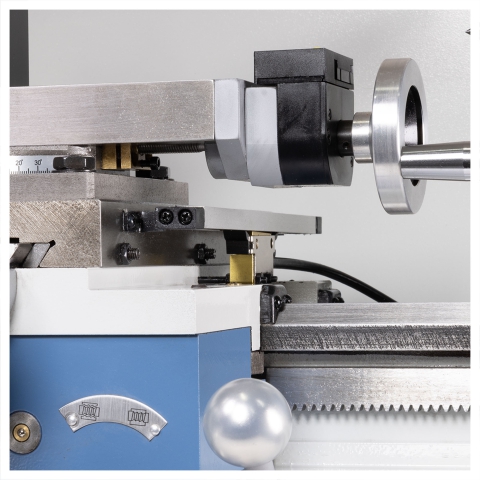

- DRCD digital readout on compound and tailstock
- All DROs read equally accurately in inches and mm.

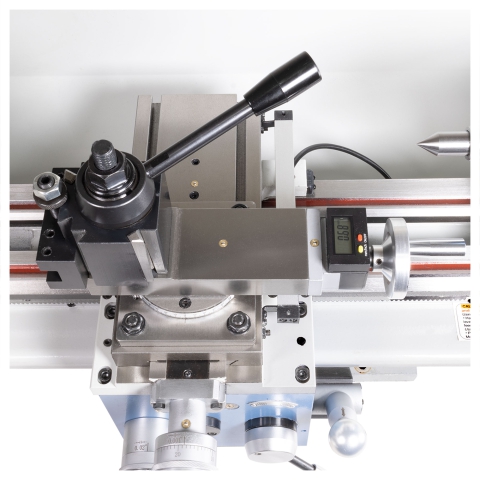

- AXA quick change tool post set
- 1000 Watt output spindle motor with spindle speed display
- Genuine NSK bearings
- Metal gears
- Induction hardened ways

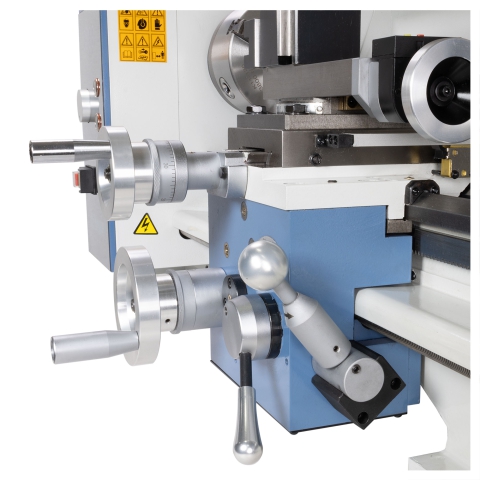

- Power longitudinal feed
- Power cross feed
- E-stop safety power switch
- Spindle on-off button
- Forward/reverse button for spindle and lead screw direction
- Reversible lead screw allows for right- and left-hand threading
- Extended threading capability - inch and metric threads
- Zero-resettable dials graduated at 0.001" and advancing 0.050" per turn

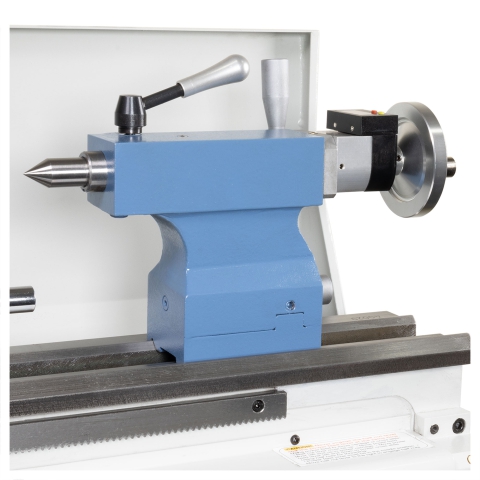

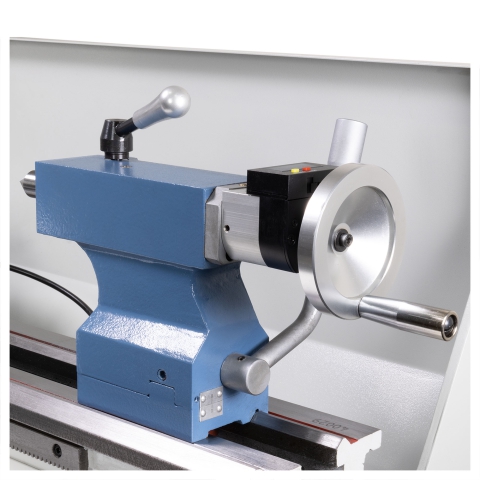

- Cam-lock tailstock
- 5" (125 mm) 3-jaw self centering lathe chuck
Swing Over Bed | 9.1" (230 mm) |
Distance Between Centers | 18.1" (460 mm) |
Cross Slide Travel | 4.7" (120 mm) |
Swing Over Cross Slide | 4.3" (110 mm) |
Spindle Through Hole | 1.1" (28 mm) |
Spindle Taper | #4 Morse taper |
Tailstock Taper | #2 Morse taper |
Range of Threads | 6-80 TPI; 0.25-4.0 mm |
Spindle Motor Output | 1.34 hp (1000 Watts) |
Spindle Speed | 100 - 2000 RPM |
Power Requirements | 120 V 60 Hz 15 Amps |
Machine Weight | 264 lbs (120 kg) |
Crated Weight | 326 lbs (148 kg) |
Overall Dimensions (W x D x H) | 36" x 25" x 18" (910 mm x 630 mm x 450 mm) |
Crate Dimensions (W x D x H) | 42" x 31" x 24" (1060 mm x 780 mm x 600 mm) |

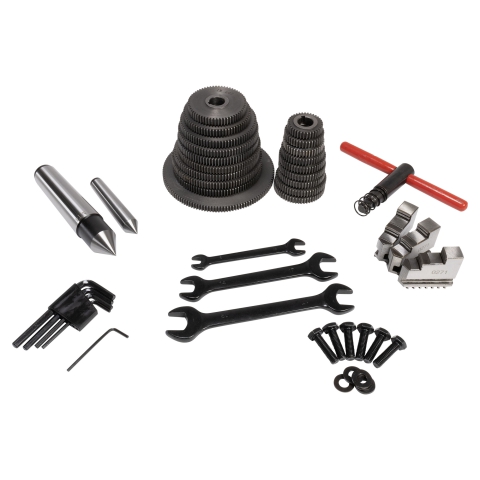

The Bench Lathe comes with the following:
- 5" (125 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
- 4-Way rotating tool post
- A #4 Morse taper dead center for the headstock
- A #2 Morse taper dead center for the tailstock

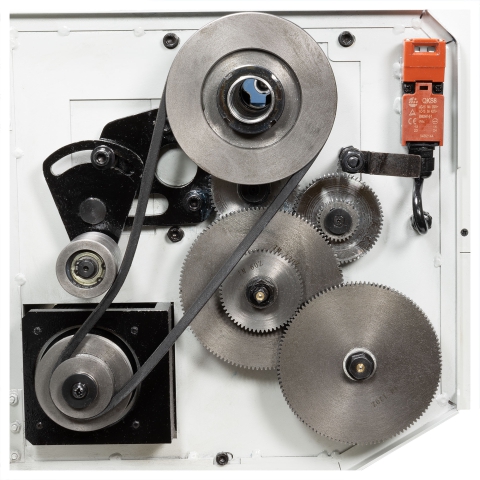

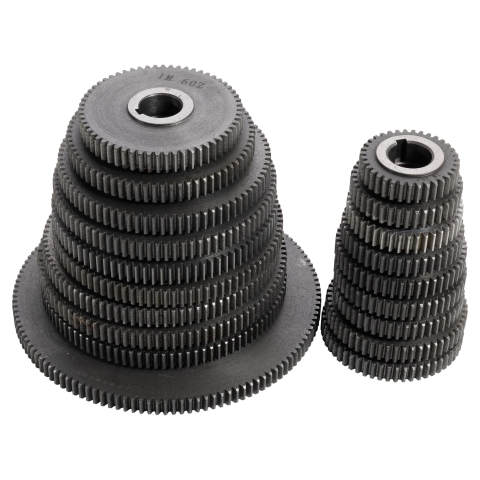

- Change gear set - 187 Gears - 30*, 35, 40, 45, 49, 50, 55, 56, 60*, 70, 80, 85, 87, 90, 94, 100, 120*, 127 teeth
* Installed on the lathe - Three open end wrenches: 8/10 mm, 14/17 mm, 17/19 mm
- Five hex (Allen) wrenches: 2, 3, 4, 5, 6 mm
- Users Manual
- Inspection Report
