Products > Tools & Things > Tools

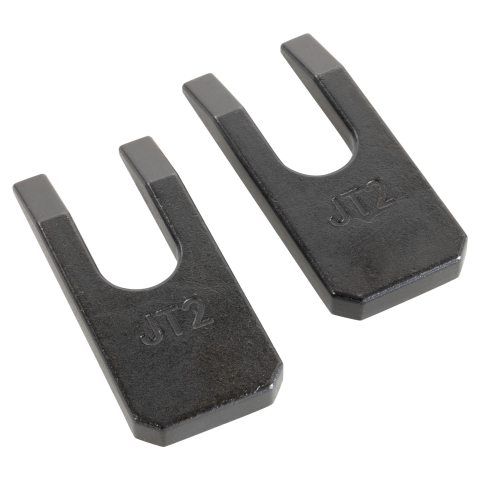

Wedge Set #3, Drill Chuck Removal

         Made in United States
Wedge Set #3, Drill Chuck Removal
Part Number: 3983
Weight: 0.10 lb

Price: $15.95

In stock
Quantity:


Share this page:
http://lmscnc.com/3983

  • Removes taper mount drill chuck from arbor
  • For #3 and #33 Jacobs tapers

Chris' Tips

Chris Chris' Tips
To remove a chuck from an arbor, insert the wedges between the back of the chuck and the shoulder of the arbor (Illus. C). If the mounting taper of the arbor does not provide a shoulder, drill a cross hole through the neck of the arbor (illus. D.) and insert a cross pin. Then the wedges can be used between the chuck back and the cross pin.


Here's Jacobs Drill Chuck Removal Guide
