Slitting Saw Arbor

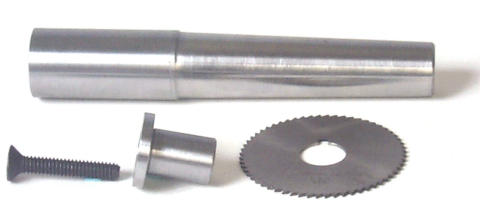

This slitting saw arbor has a #3 Morse Taper that fits the spindle of the mini mill directly. It mounts a saw blade with a 5/8" hole. The arbor extends 2" beyond the spindle to provide flexibility in positioning the saw. It is made from 1" diameter cold rolled steel. It uses a 3/8-16 NC drawbar.

The drawing of the saw arbor is an Adobe Acrobat PDF file. To download a file, right-click the link below and choose Save Target As or Save Link As.

• 5/8" Slitting Saw Arbor Drawing
