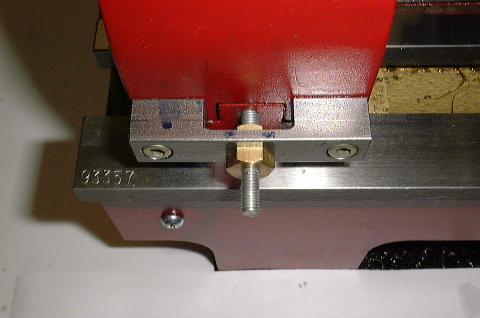

Tailstock Adjuster

This tailstock adjuster makes it much easier to adjust the tailstock to center or to adjust it to cut tapers.

The tailstock adjuster is made from a piece of 1/2" x 1/2" steel and a piece of 7/16" hex steel or brass. You could also use 1/2" hex stock if that's what you can find.

Tailstock Adjuster

Note that to cut tapers, such as a 3 Morse taper, you will probably have to slot the hole that the clamping bolt goes through. There is a locking bolt on the bottom of the tailstock that is in a slotted hole, but the main hold-down bolt's hole is not slotted.

The drawing of the tailstock adjuster is an Adobe Acrobat PDF file. To download a file, right-click the link below and choose Save Target As or Save Link As.
