ANSI Boring Bar Designations

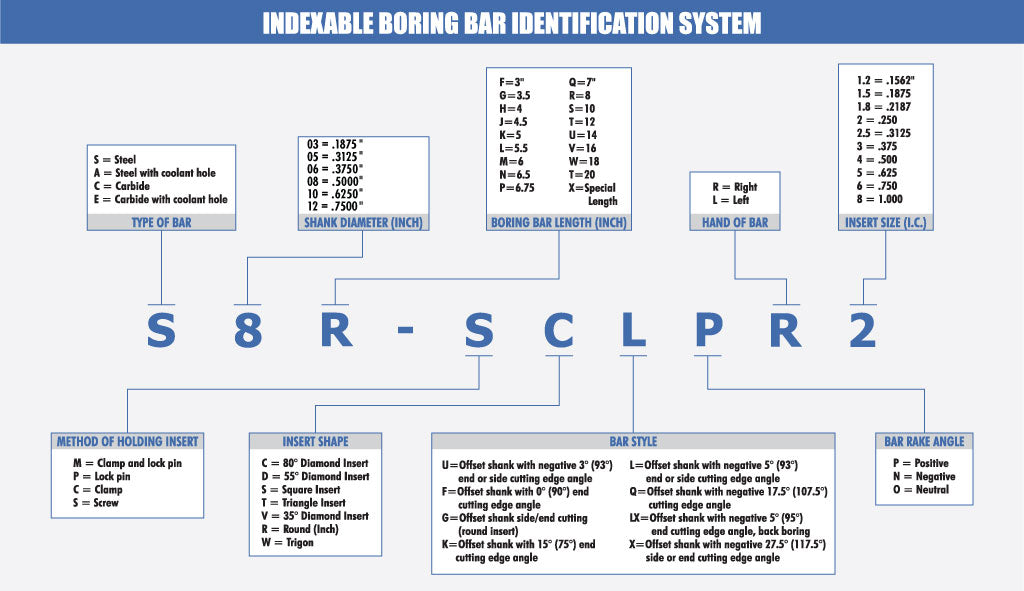

This table shows the ANSI designations for indexable boring bars for internal turning.
