Rotary Table Comparison

ADD INTRODUCTION

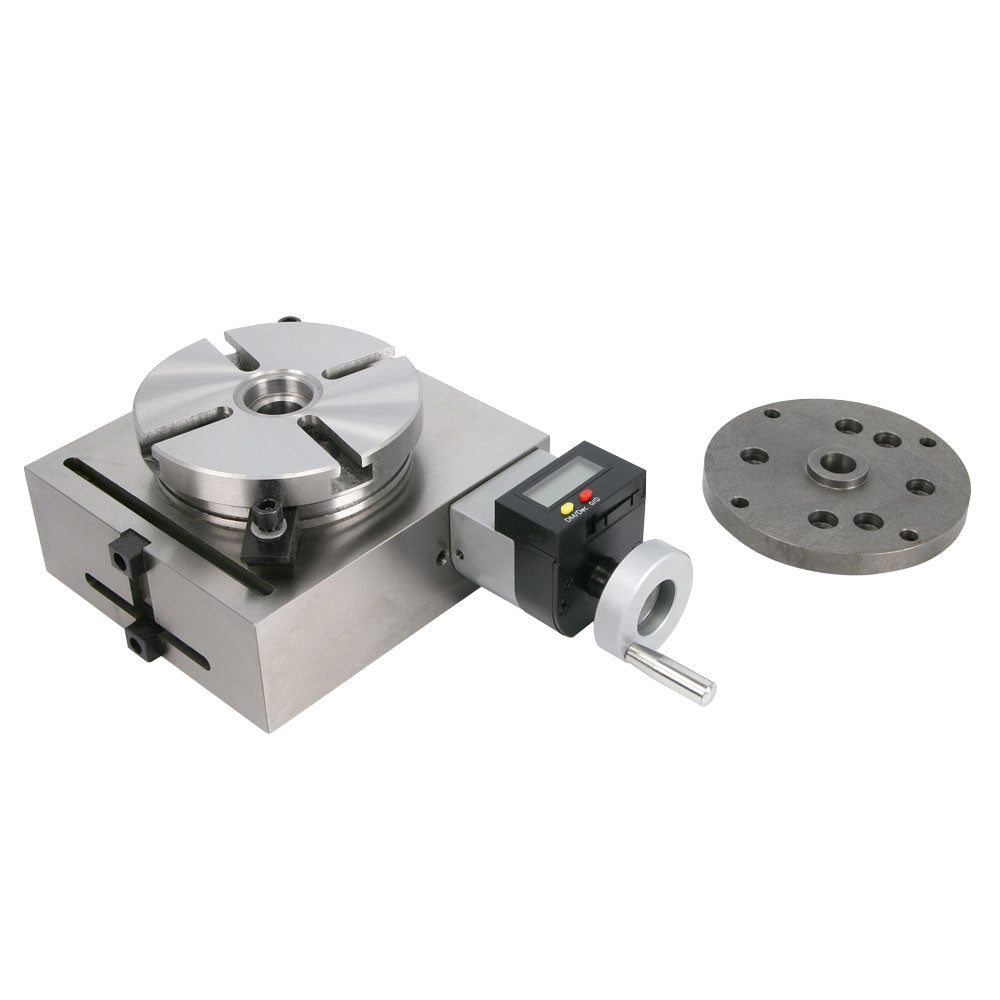

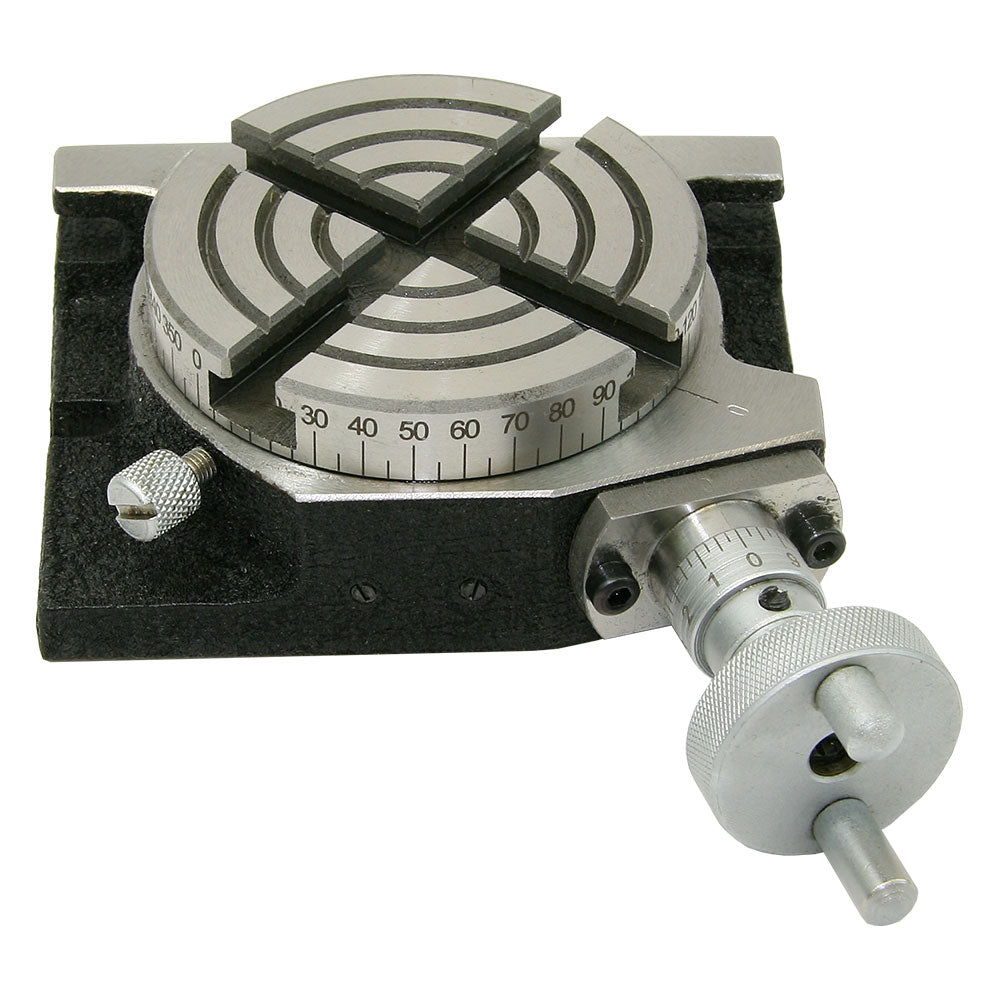

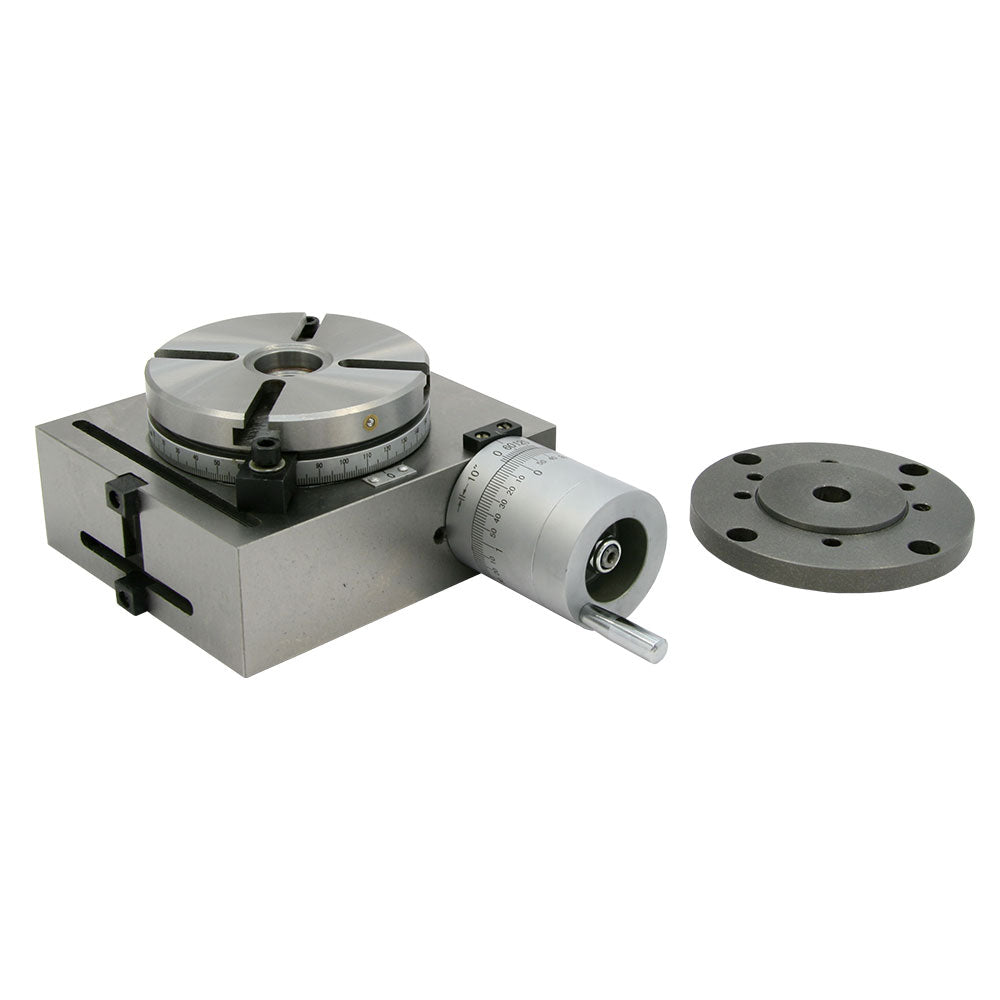

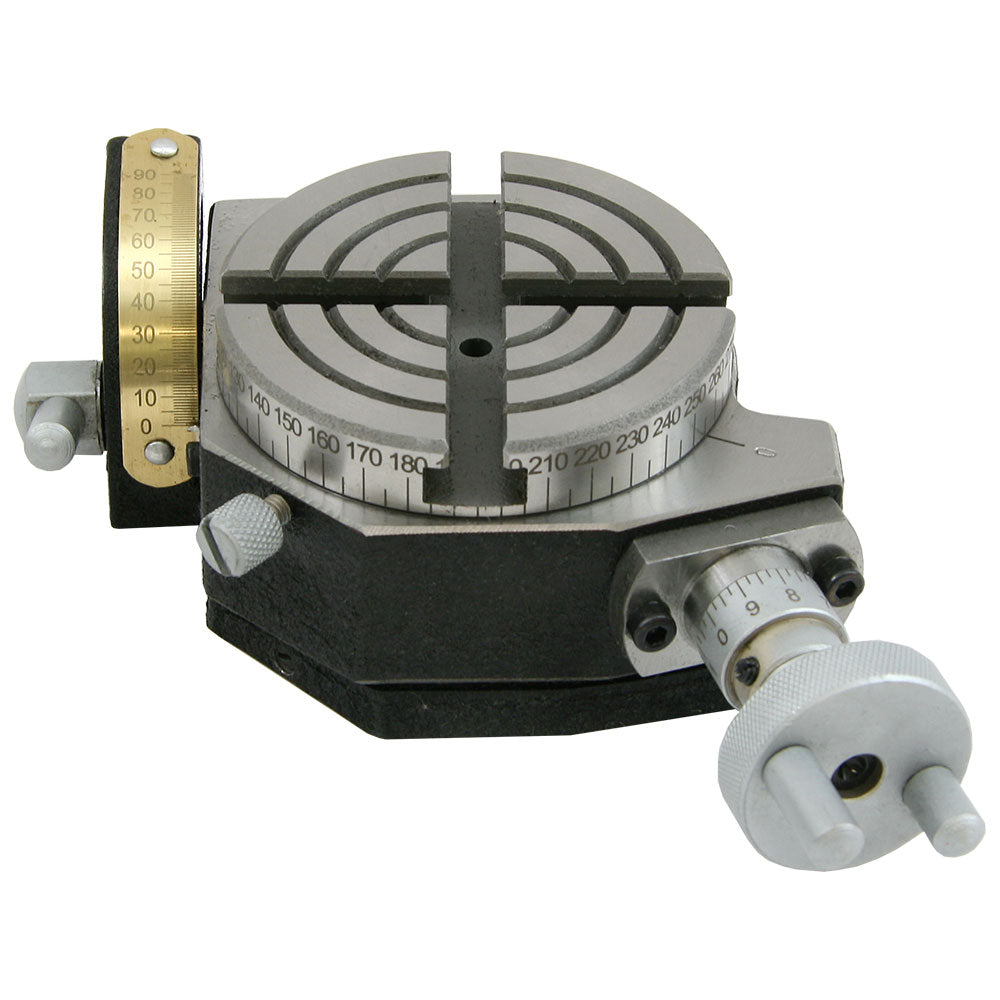

Rotary Table, 3 inch H/V, Standard Rotary Table, 3" Tilting, Standard Rotary Table, 4" H/V, Standard Rotary Table, 4" Tilting, Standard Rotary Table, 4" - Precision Rotary Table, 4" - Precision (Digital Readout) Rotary Table, 4" H/V - Precision Rotary Table, 6" - Precision
Part Number 5601 5602 5603 5604 1810 2420 1927 1787
Product Rotary Table, 3" H/V, Standard Rotary Table, 3" Tilting, Standard Rotary Table, 4" H/V, Standard Rotary Table, 4" Tilting, Standard Rotary Table, 4" - Precision Rotary Table, 4" - Precision (Digital Readout) Rotary Table, 4" H/V - Precision Rotary Table, 6" - Precision
Ratio 36:1 36:1 36:1 36:1 72:1 72:1 72:1 90:1
Table Diameter 3.15" (80.0 mm) 3.1" (80 mm) 4.02" (102.0 mm) 4.02" (102.0 mm) 3.9" (100 mm) 3.9" (100 mm) 3.9" (100 mm) 5.91" (150.0 mm)
Height (Mounted Horizontal) 1.77" (45.0 mm) 2.2" (55 mm) 2.17" (55.0 mm) 2.60" (66.0 mm) 2.9" (73 mm) 2.9" (73 mm) 2.8" (70 mm) 3.1" (80 mm)
Body Length 5.71" (145.0 mm) 6.7" (170 mm) 7.48" (190.0 mm) 8.27" (210.0 mm) 5.5" (140 mm) 5.5" (140 mm) 4.9" (125 mm)
Body Width 5.51" (140.0 mm) 6.1" (155 mm) 7.48" (190.0 mm) 8.27" (210.0 mm) 5.0" (126 mm) 5.0" (126 mm) 5.0" (128 mm)
Center Hole Taper 2 Morse Taper 2 Morse Taper 2 Morse Taper 2 Morse Taper
Center Height (Mounted Vertically) 1.65" (42.0 mm) 2.32" (59.0 mm) 2.13" (54.0 mm) 3.03" (77.0 mm) 2.68" (68.0 mm) 2.68" (68.0 mm) 2.76" (70.0 mm) 3.90" (99.0 mm)
T-Slot Width 0.31" (8.0 mm) 0.31" (8.0 mm) 0.31" (8.0 mm) 0.31" (8.0 mm) 0.31" (8.0 mm) 0.31" (8.0 mm) 0.24" (6.0 mm) 0.43" (11.0 mm)
Minimum Vernier Reading 15" 15" 10" 10" 10" 12" 10" 10"
Flatness of Table Surface (Concave) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0006" (0.015 mm) 0.0006" (0.015 mm)
Parallelism of Table Surface to Base 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm)
Squareness of Table Surface to Base 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0012" (0.030 mm) 0.0012" (0.030 mm) 0.0004" (0.010 mm) 0.0004" (0.010 mm)
Runout of Table Surface 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0006" (0.015 mm) 0.0006" (0.015 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm)
Runout of Center Taper         0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0006" (0.015 mm) 0.0006" (0.015 mm)
Squareness of Table Surface to Angle Face Slot 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0012" (0.030 mm) 0.0012" (0.030 mm) 0.0006" (0.015 mm) 0.0006" (0.015 mm)
Center Hole Parallel with the Angle Face         0.0008" (0.020 mm) 0.0008" (0.020 mm) 0.0006" (0.015 mm) 0.0006" (0.015 mm)
Maximum Spacing Error 20" 20" 30" 30" 70" 70" 120" 80"
