2-Axis DRO Kit, Bench Lathe

2-Axis DRO Kit, Bench Lathe

6387

$599.95 USD
$629.95 USD $599.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Hard wired 2-axis DRO package with mounting arm
  • Designed for LittleMachineShop.com HiTorque bench lathes
  • Complete package, no additional components needed
  • Advanced display functions

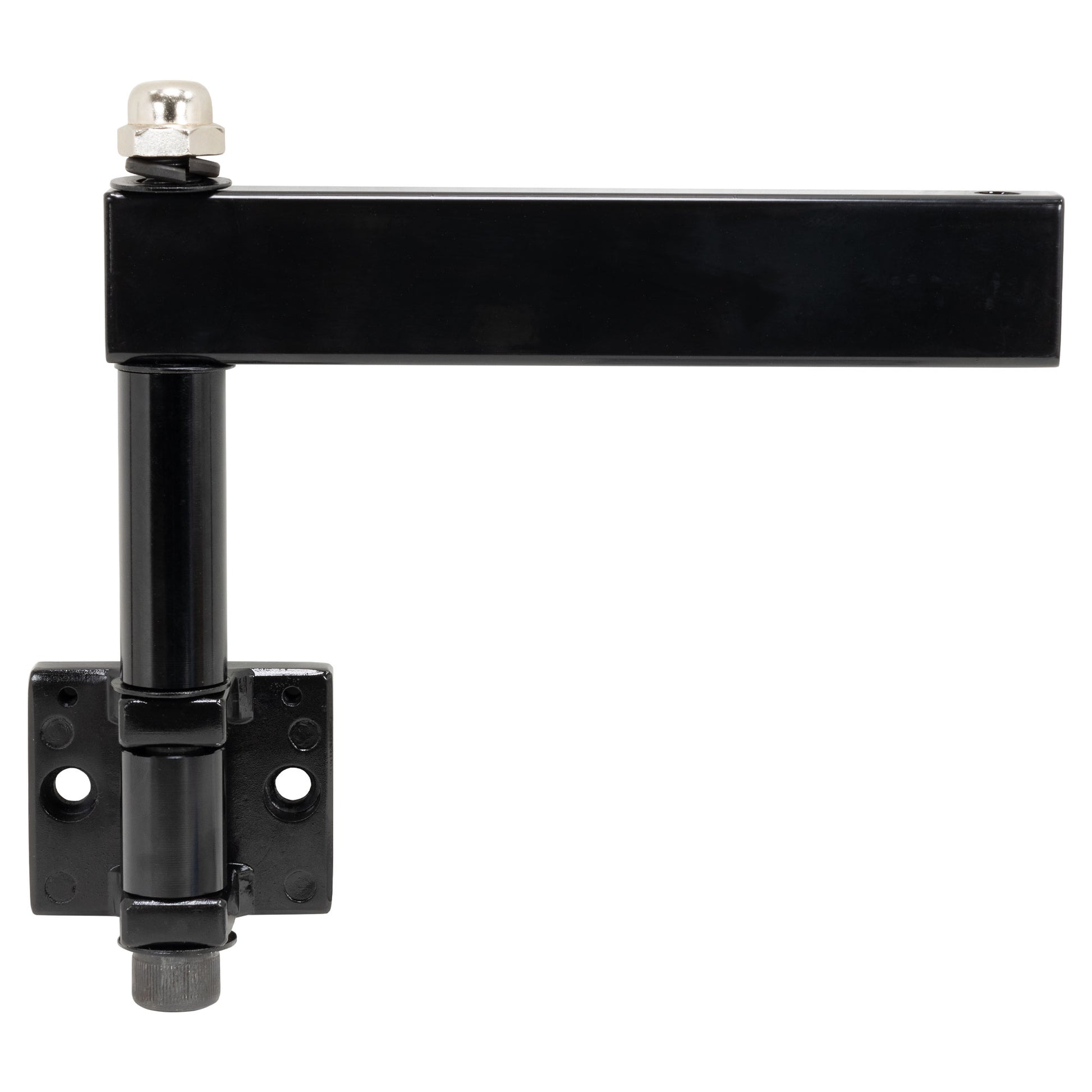

  • Rotating arm included

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

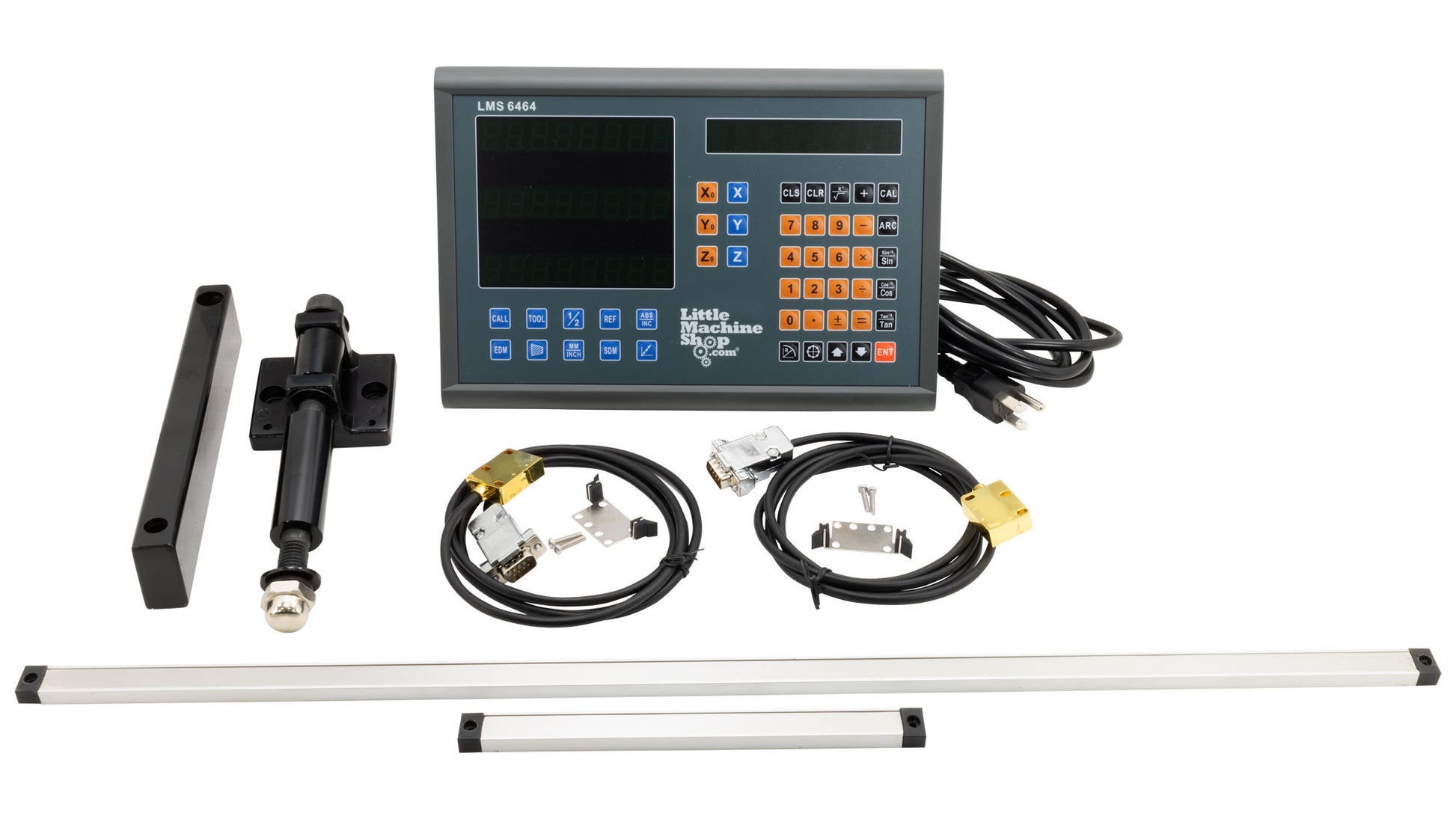

Hard wired DRO kit for the HiTorque bench lathe. This kit comes with everything you need for a lathe 2-axis DRO installation.

The wiring setup eliminates the need for a wireless environment and ensures regular steady connectivity to your lathe.

The display has a protective cover which can be used or removed based on your preferences.

The read head cable is approximately 58" between read head and an 9-Pin connector.

The scales are pre-cut to length for the HiTorque bench lathe.

See the Compatibility tab for products that work with this product.

***NOTE: This is not a simple "plug in" accessory that requires installation. Please review the instructions in Chris's Tips before purchase.

Specifications

X-Axis Scale Length: 24.016" (610 mm)

Y-Axis Scale Length: 7.087" (180 mm)

Repeatability: 0.000" (0.005 mm)

Resolution: 0.000" (.005 mm)

Specified Accuracy: 0.002" / 1 m travel, 0.05 mm

Accuracy / Foot: 0.002" (.05 mm)

Accuracy / 100 Mm: 0.002" (.05 mm)

Scale Technology: Magnetic

Scale Protection: Coolant & dust resistant

Voltage: 120-240 V

Clear to Zero: YES

Direct Entry of Position: YES

Inch/mm Display: YES

Power Off Memory: YES

Reversible Count Direction: YES

Find Center: YES

Bolt Circles: YES

Bolt Lines: YES

Preset Points: YES

Tool Offsets: YES

Radius/Diameter: YES

Incremental/Absolute: YES

Calculator: NO

Arc Machining: NO

Linear Error Compensation: NO

Made In: China

Warranty: 1 year

Phone Tech Support: Free

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  • SIEG C4 8.5x16 Bench Lathe
  • SIEG SC4 8.5x16 Bench Lathe
  • Travers Tools OT218410 OTMT 8x16 Bench Lathe
  • LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7600 HiTorque 9x20 Bench Lathe
  • LittleMachineShop.com 7650 HiTorque 9x20 Bench Lathe

Product Instructions
