2-Axis DRO Kit, Mini Lathe, Bluetooth

2-Axis DRO Kit, Mini Lathe, Bluetooth

5495

$399.95 USD
$399.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Key Features

  • Fits standard mini lathes, 7x10 to 7x16
  • Displays on any Android tablet with Bluetooth capability
  • Resolution of 0.0002" (0.005 mm)
  • 100-240 VAC power supply
  • Coolant and dust resistant (IP50)

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This magnetic technology digital readout package fits all mini lathes from 7x10 to 7x16. Simply cut the long scale to fit.

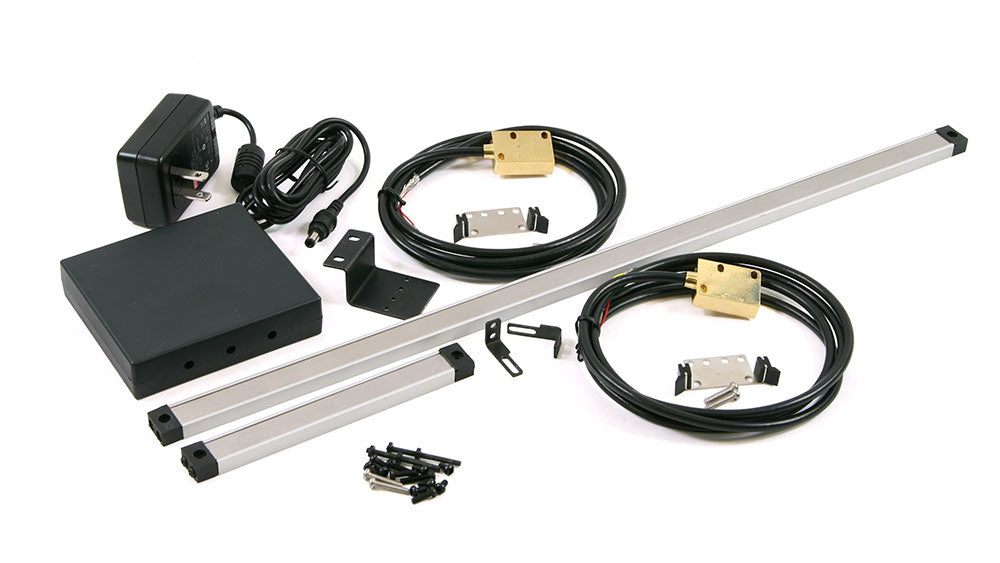

This package includes what you need to put a DRO on most any mini lathe. It includes a two scales, two read heads, and a Bluetooth transceiver and all the mounting brackets and hardware.

You must also get an Android tablet for the display on this DRO. We recommend a 7" screen size, and the tablet must have Bluetooth capability. The specifications shown here show the capabilities of the software included with our Android tablet (PN 5513, available separately) and TouchDRO, and app you can download and install on your own tablet.

***NOTE: This is not a simple "plug in" accessory that requires installation. Please review the instructions in Chris's Tips before purchase.

Chris's Tips

While we sell an Android Tablet with the DRO software installed, you can use most any Android tablet that supports Bluetooth with the Bluetooth DROs that we sell.

Here's how to get going:

  1. On your Android tablet, go to Bluetooth Settings and Pair the DRO to your tablet. The name of the DRO is HC-06 or BT04-E. The PIN is 1234.
  2. Go to the Google Play Store and install Yuriy's Toys TouchDRO.
  3. When you launch TouchDRO and tap Connect in the upper right corner.

Specifications

Repeatability: 0.000" (0.005 mm)

Resolution: 0.000" (.005 mm)

Specified Accuracy: 0.002" / 1 m travel, 0.05 mm

Accuracy / Foot: 0.002" (.05 mm)

Accuracy / 100 Mm: 0.002" (.05 mm)

Scales Cut to Length by User: YES

Scale Technology: Magnetic

Scale Protection: Coolant & dust resistant

Voltage: 100-240 V

Clear to Zero: YES

Direct Entry of Position: YES

Inch/mm Display: YES

Power Off Memory: NO

Reversible Count Direction: YES

Find Center: YES

Bolt Circles: YES

Bolt Lines: YES

Preset Points: YES

Tool Offsets: YES

Radius/Diameter: YES

Incremental/Absolute: YES

Calculator: NO

Arc Machining: NO

Linear Error Compensation: NO

Made In: China

Warranty: 1 year

Phone Tech Support: Free

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Bolton CQ9318 7x12 Mini Lathe
  • Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  • Cummins (Tools Now) 5278 7x12 Mini Lathe
  • Eastwood 32497 7x12 Mini Lathe
  • Grizzly G8688 7x12 Mini Metal Lathe
  • Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  • Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  • LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  • LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  • Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  • Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  • SIEG C2 7x12 Mini Lathe
  • Tormach 30689 7x12 Duality Lathe
  • Travers Tools OT222300 OTMT 7x12 Mini Lathe
  • Warco 3005 7x12 Mini Lathe (Imperial)
  • Warco 3004 7x12 Mini Lathe (Metric)
  • WEN 3455 WEN 7x12 Mini Lathe
  • Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  • LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  • LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  • SIEG SC2 7x12 Mini Lathe
  • Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  • LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  • SIEG C3 7x14 Mini Lathe
  • Big Dog BD-0618Ax300 7x14 Mini Lathe
  • Big Dog BD-0618x300 7x14 Mini Lathe
  • Warco 4820-350 7x14 Mini Lathe (Metric)
  • Warco 4800-350 7x14 Mini Lathe (Imperial)
  • Grizzly G0765 7x14 Mini Lathe
  • Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  • LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe

Product Instructions
