Arbor, Grinding Wheel

Arbor, Grinding Wheel

2195

$9.95 USD
$9.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Grinding wheel arbor for tool post grinder
  • Two discs and two pads
  • Designed to work with P/N 2001 grinder
  • Part #s 4 and 6 in grinder manual

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

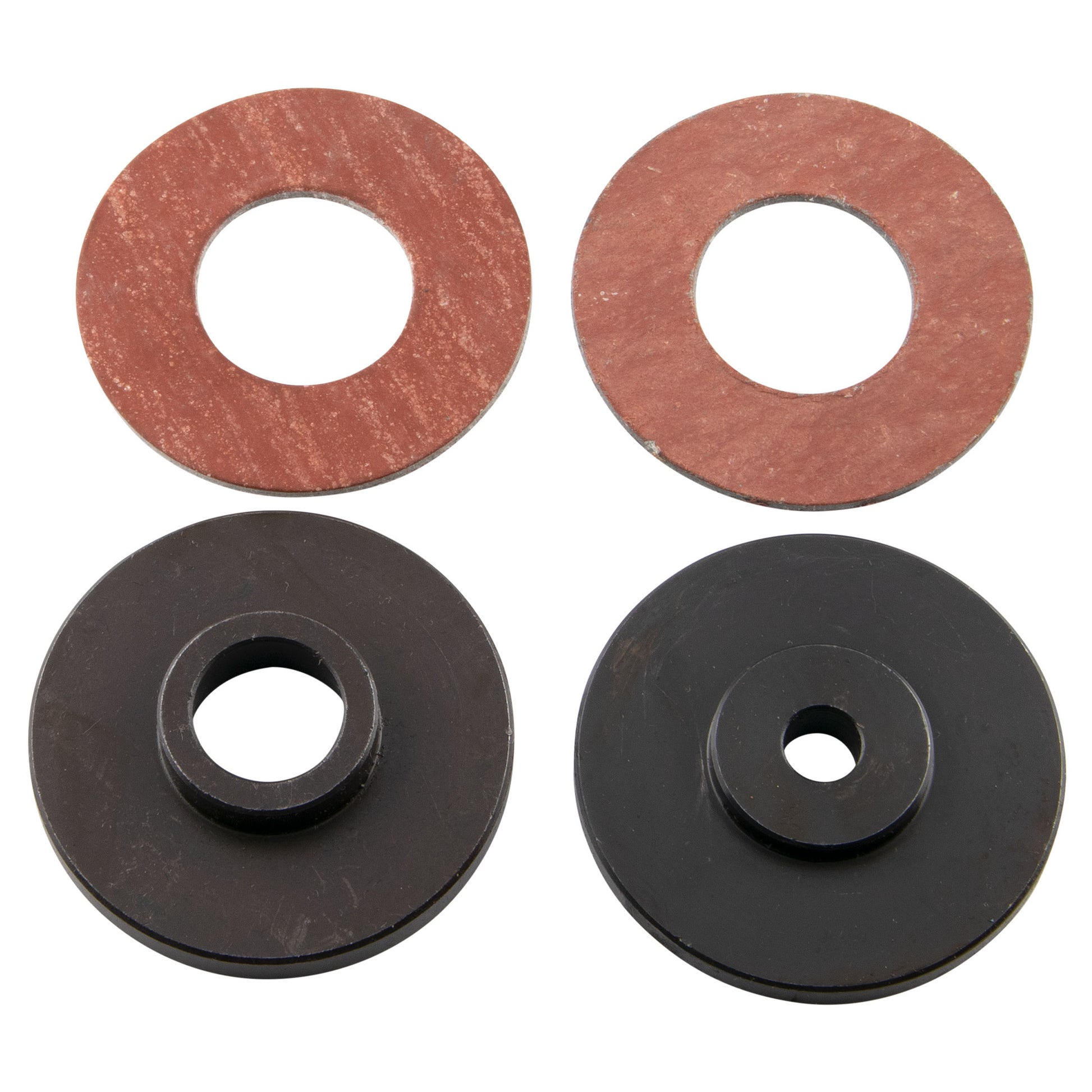

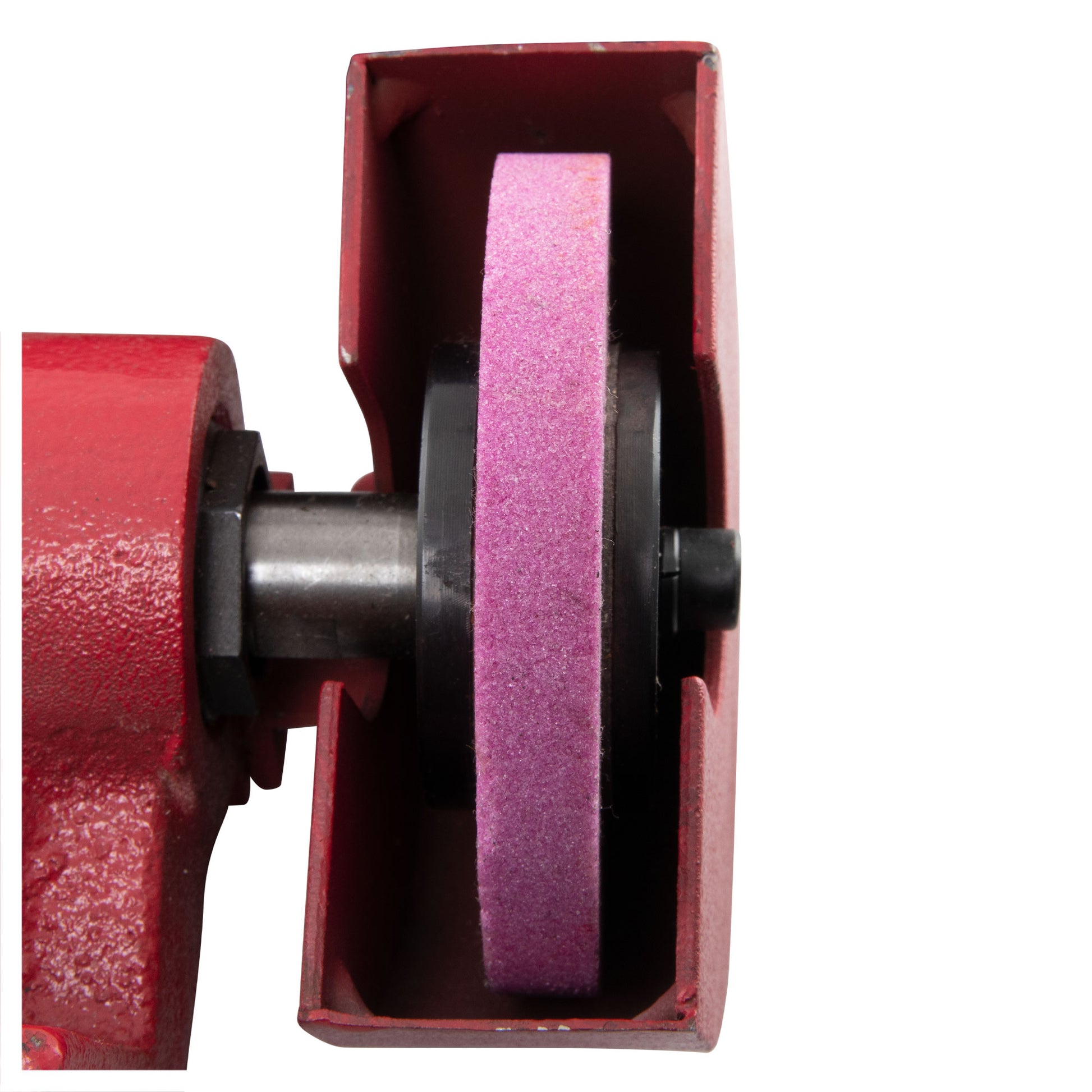

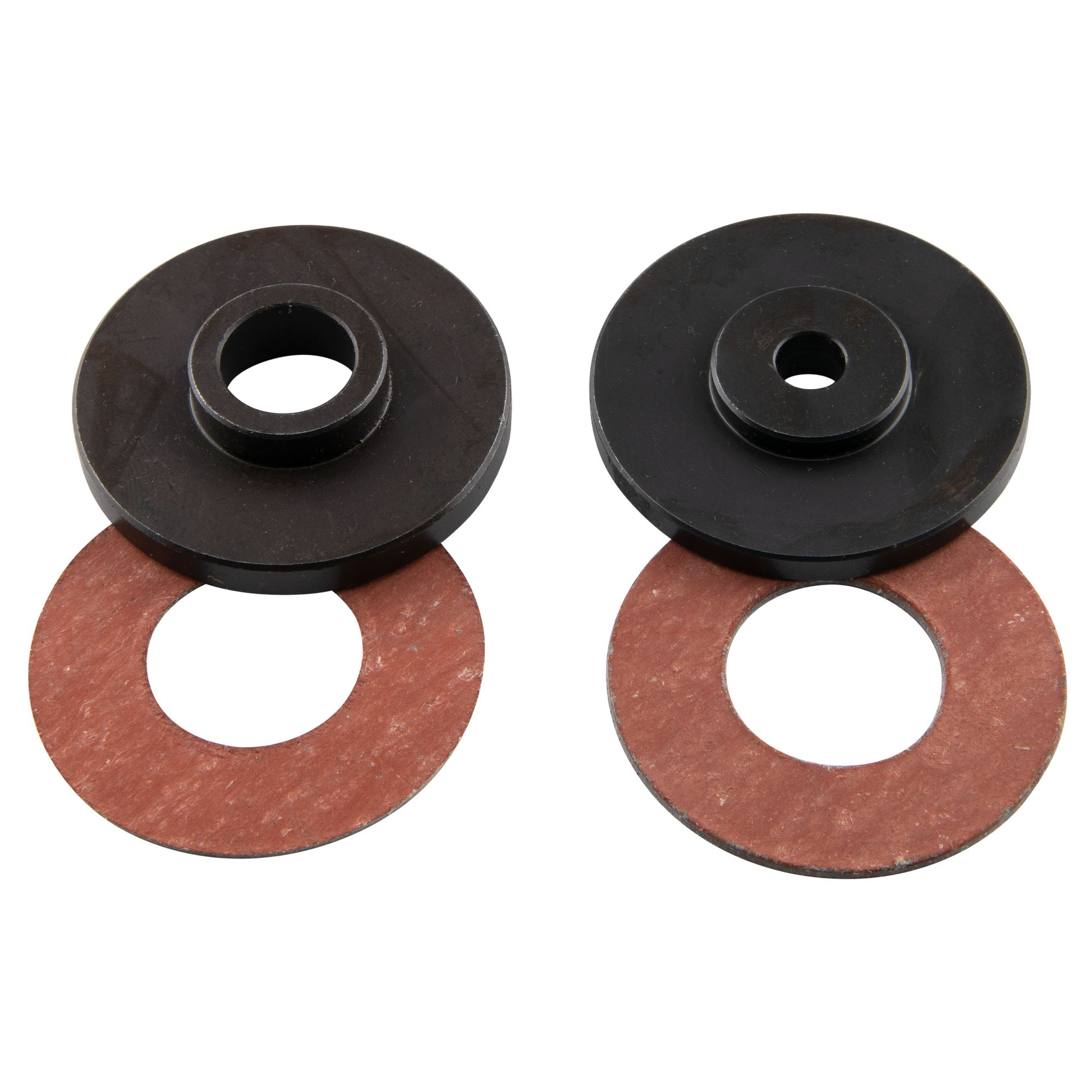

This is the two-piece arbor that retains the grinding wheel on the PN 2001 tool post grinder. It includes the two pads.
The two parts are identified as #4 and #6 in the grinder manual drawing.
Both parts are 45 mm wide with a 20 mm registration to fit into the inside of the grinding wheel. The pads have a 20 mm hole to fit over each part, between the part and the grinding wheel.
See the Compatibility tab for products that work with this product.

Specifications

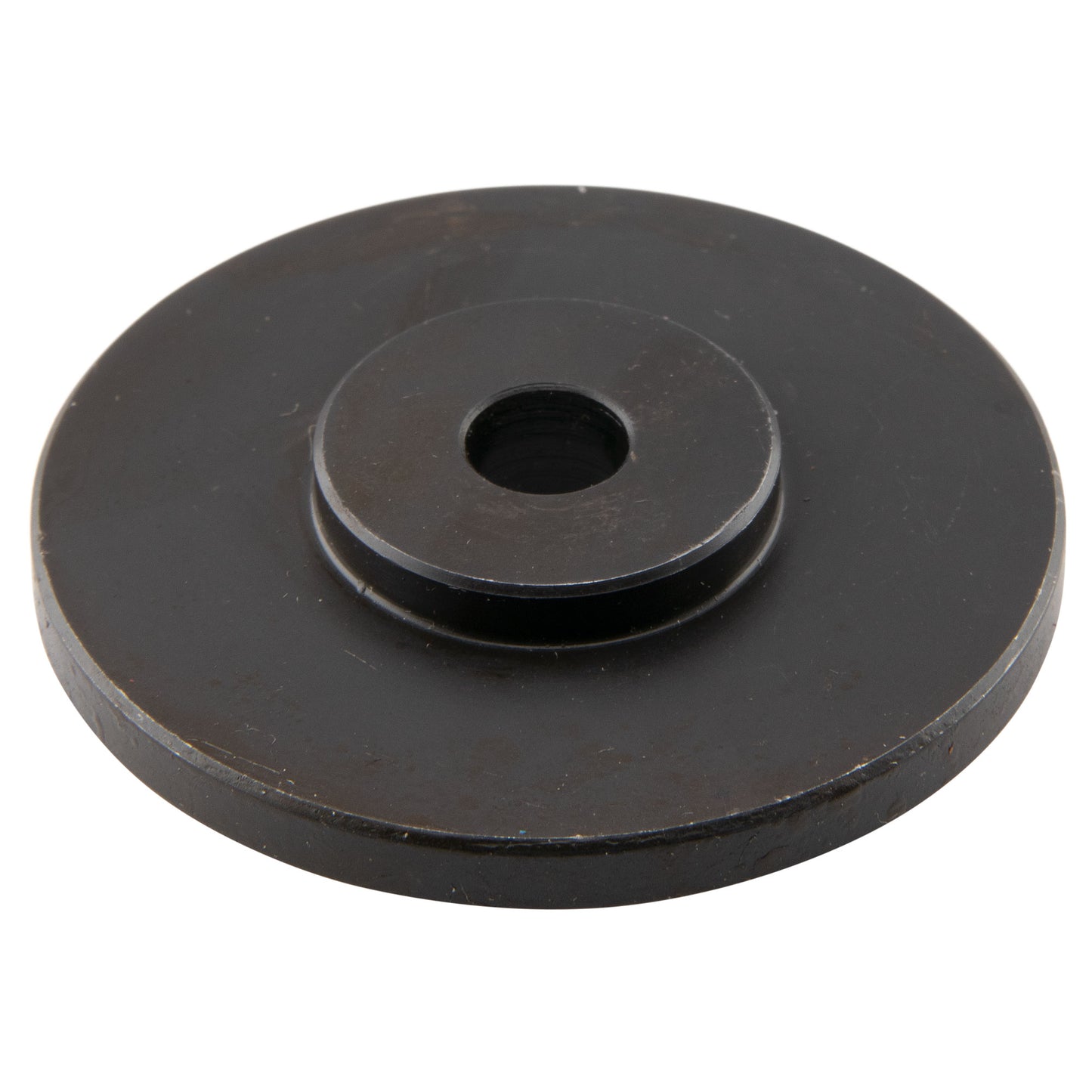

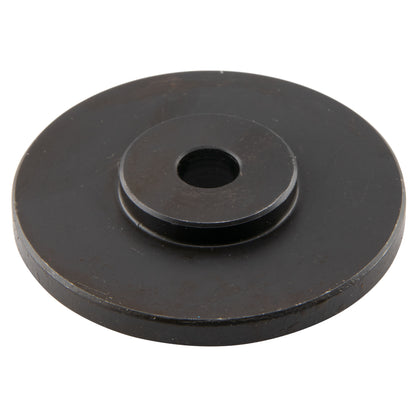

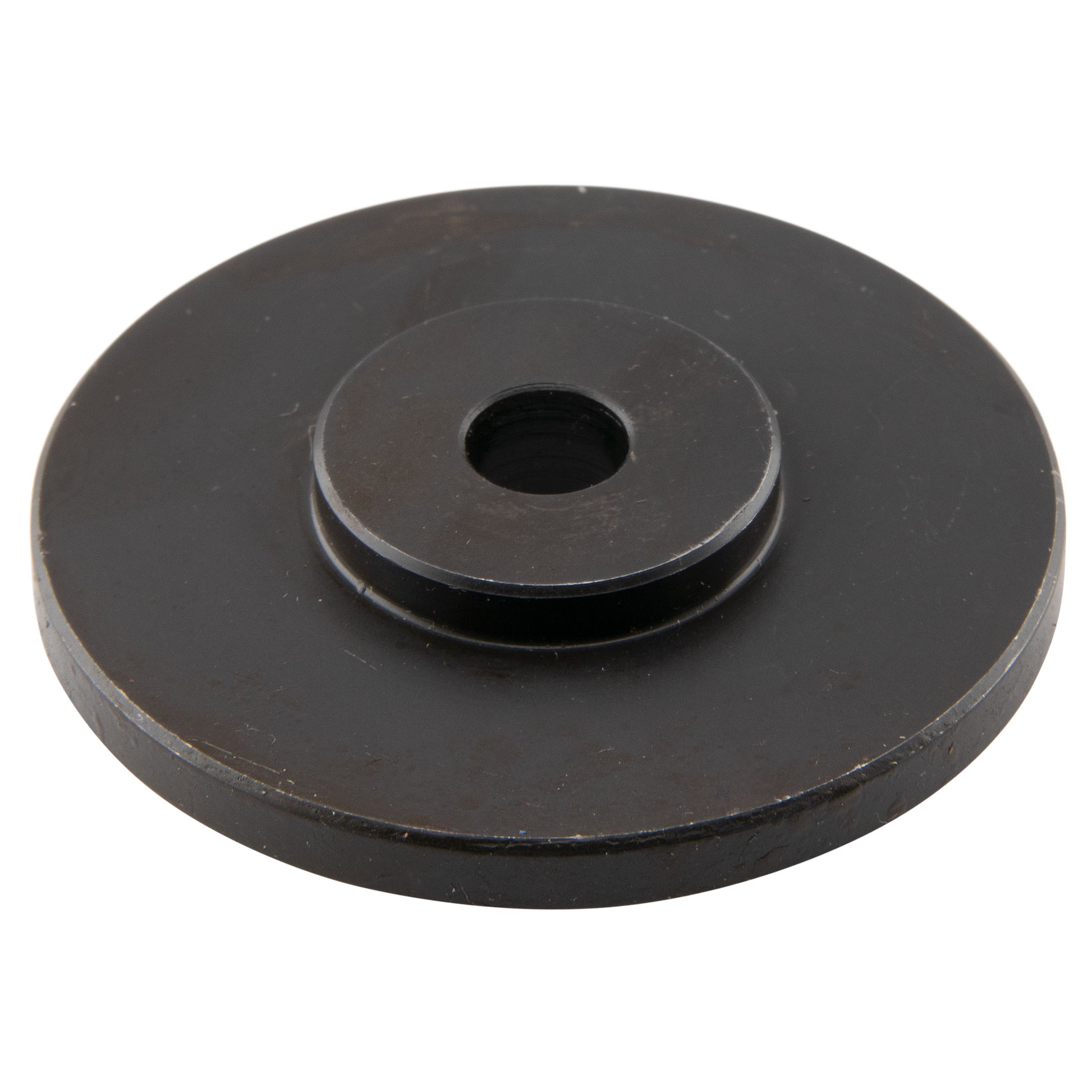

Part #4 Width: 1.772" (45 mm)

Part #4 Registration: 0.787" x 0.118" (20 mm x 3 mm)

Part #4 Inside Hole For Bolt: M6

Part #6 Width: 1.772" (45 mm)

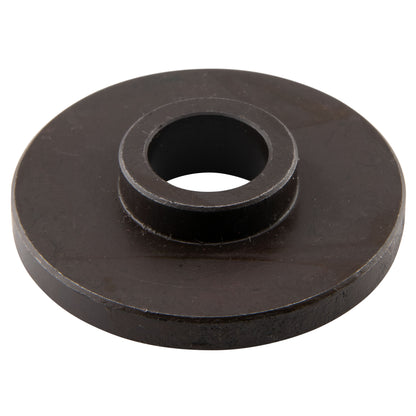

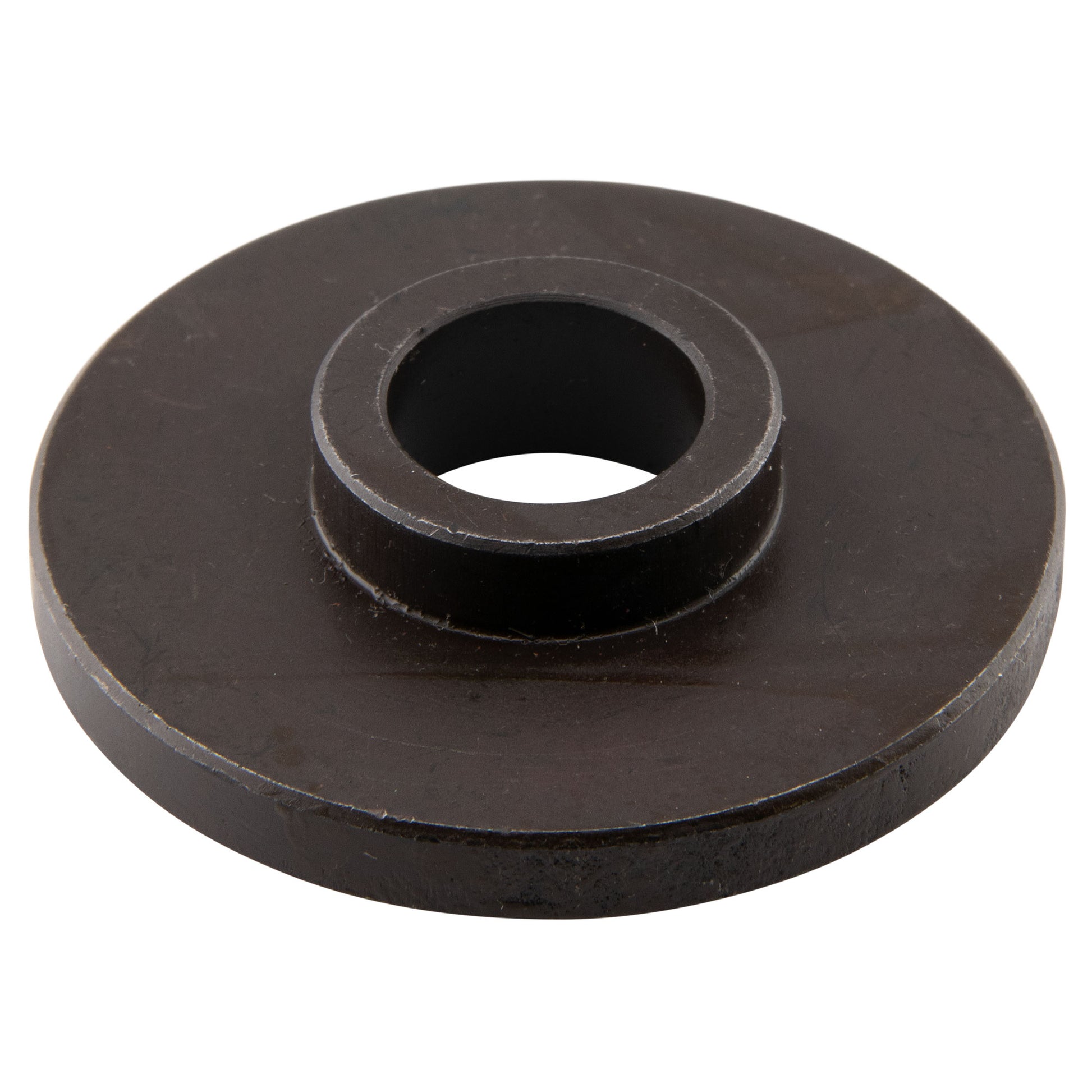

Part #6 Registration: 0.787" x 0.197" (20 mm x 5 mm)

Part #6 Inside Hole: 0.787" (20 mm)

Pads Width: 1.772" (45 mm)

Pads Inside Hole: 0.787" (20 mm)
