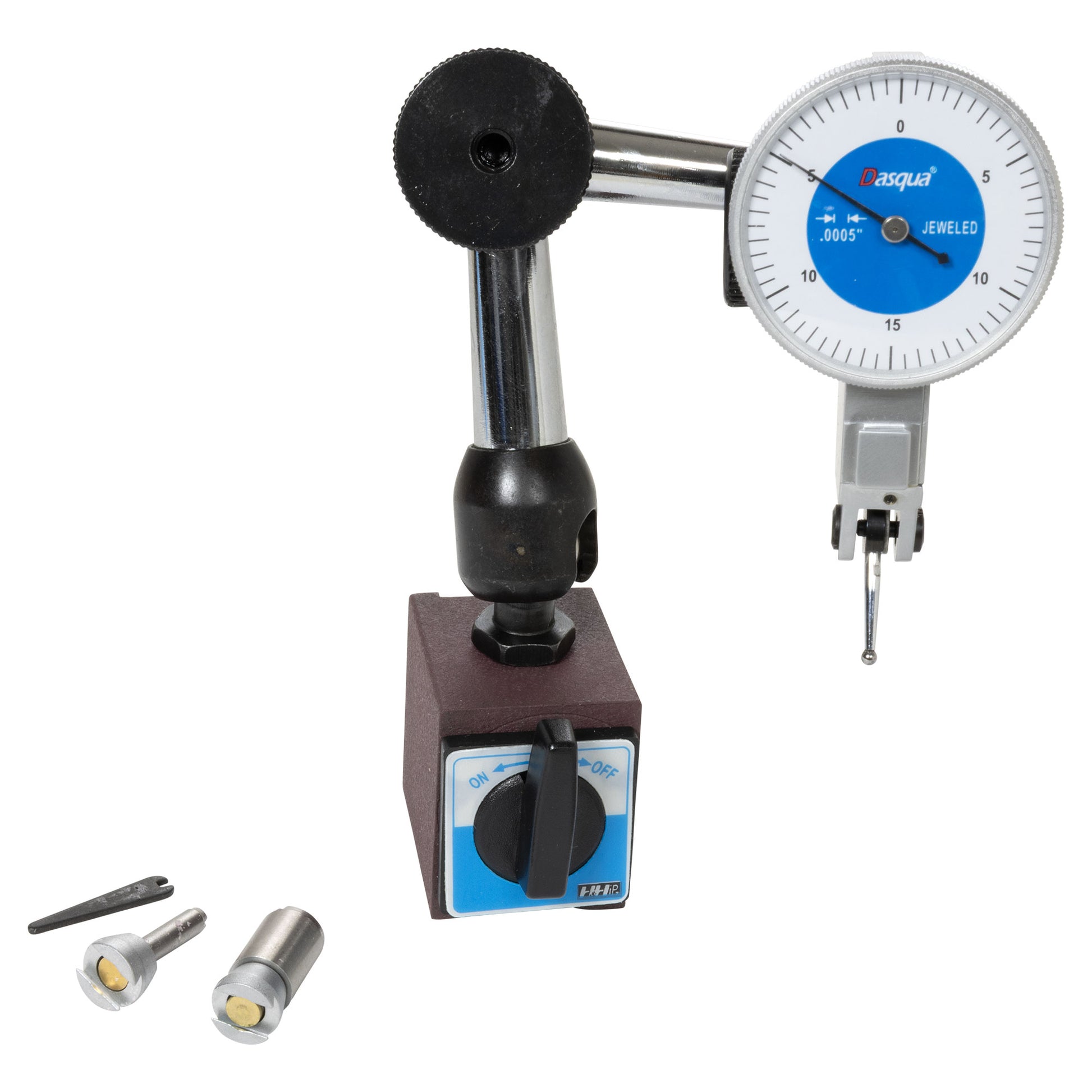

Dial Test Indicator and Magnetic Base Indicator Holder
Dial Test Indicator and Magnetic Base Indicator Holder
SKU:3692
Low stock
Couldn't load pickup availability
Key Features
Key Features
- Dial test indicator with 0-15-0 x 0.0005" graduations
- Range is 0.030" in either direction
- Magnetic base has unique central locking mechanism locks all motion with one knob
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
The dial test indicator has a 7 jewell movement and is graduated 0-15-0 x 0.0005". The range is 0.030" in either direction. It includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point. The dial test indicator comes in a fitted case.
The magnetic base is the perfect size for mini lathes and mini mills. It accepts dial indicators with 3/8" or 8 mm stems and dial test indicators with dovetails.
This magnetic base is smaller than most. It has a unique central locking mechanism locks all motion with one knob. The on/off switch makes it easy to position and the V-groove base allows you to mount it on cylindrical surfaces. The base is 1.2" by 1.5". The maximum reach is 7".
