Digital Position Readout, Drill Press, iGaging

Digital Position Readout, Drill Press, iGaging

4197

$49.95 USD
$49.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Key Features

  • Drill press digital readout (DRO)
  • Easy to read LCD display
  • Hardened stainless steel beam
  • Range: 0 - 5"/125 mm, Accuracy: 0.001"
  • Resolution: 0.0005"/0.01 mm/ 1/64"

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

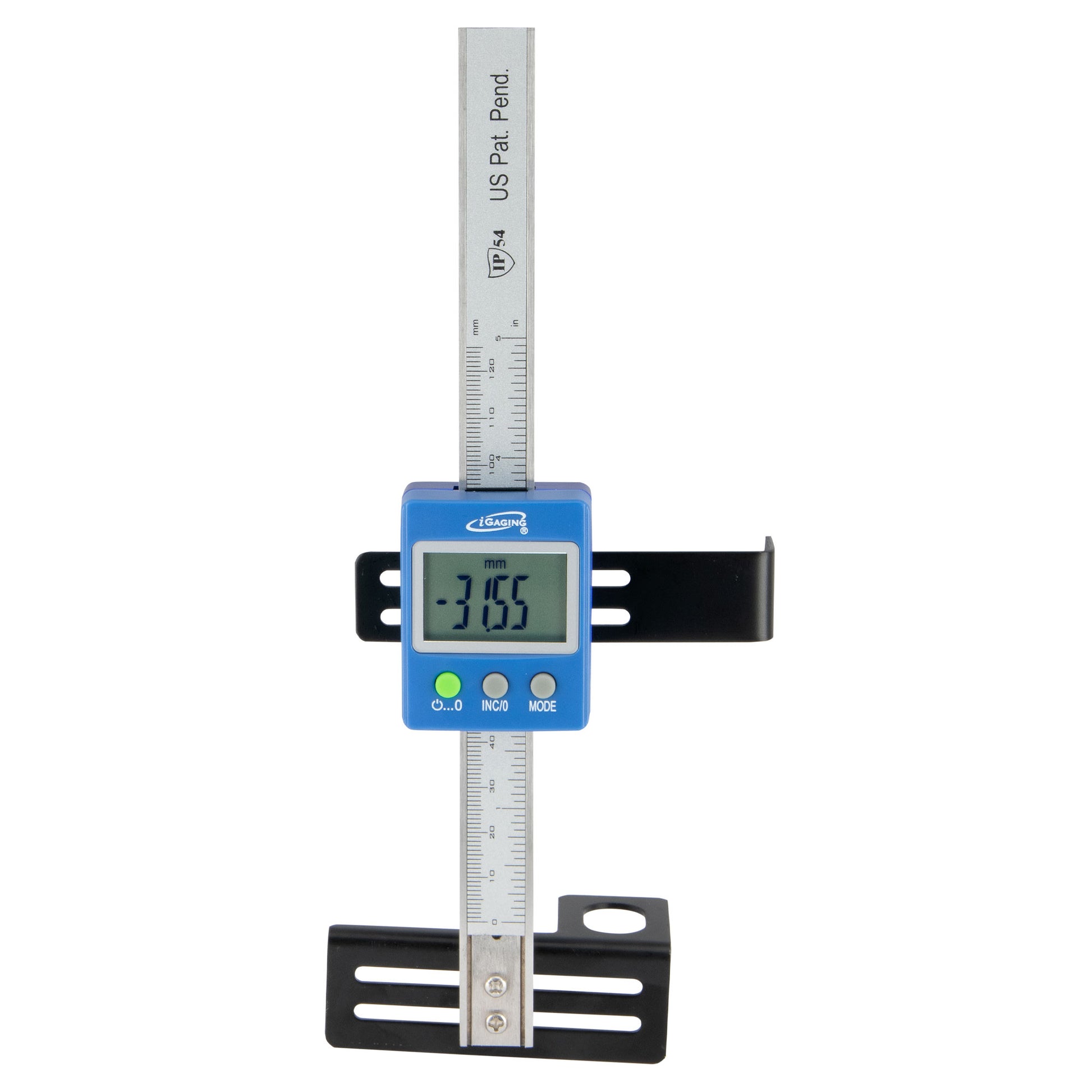

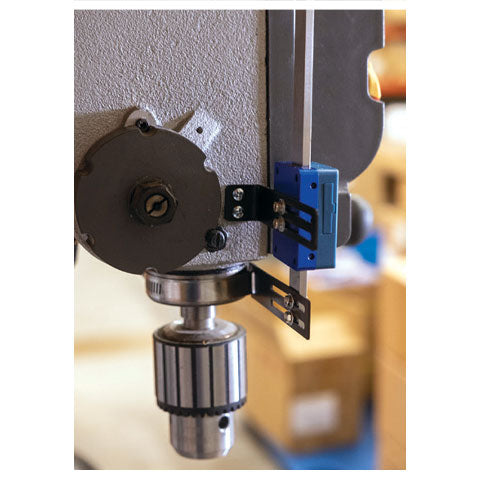

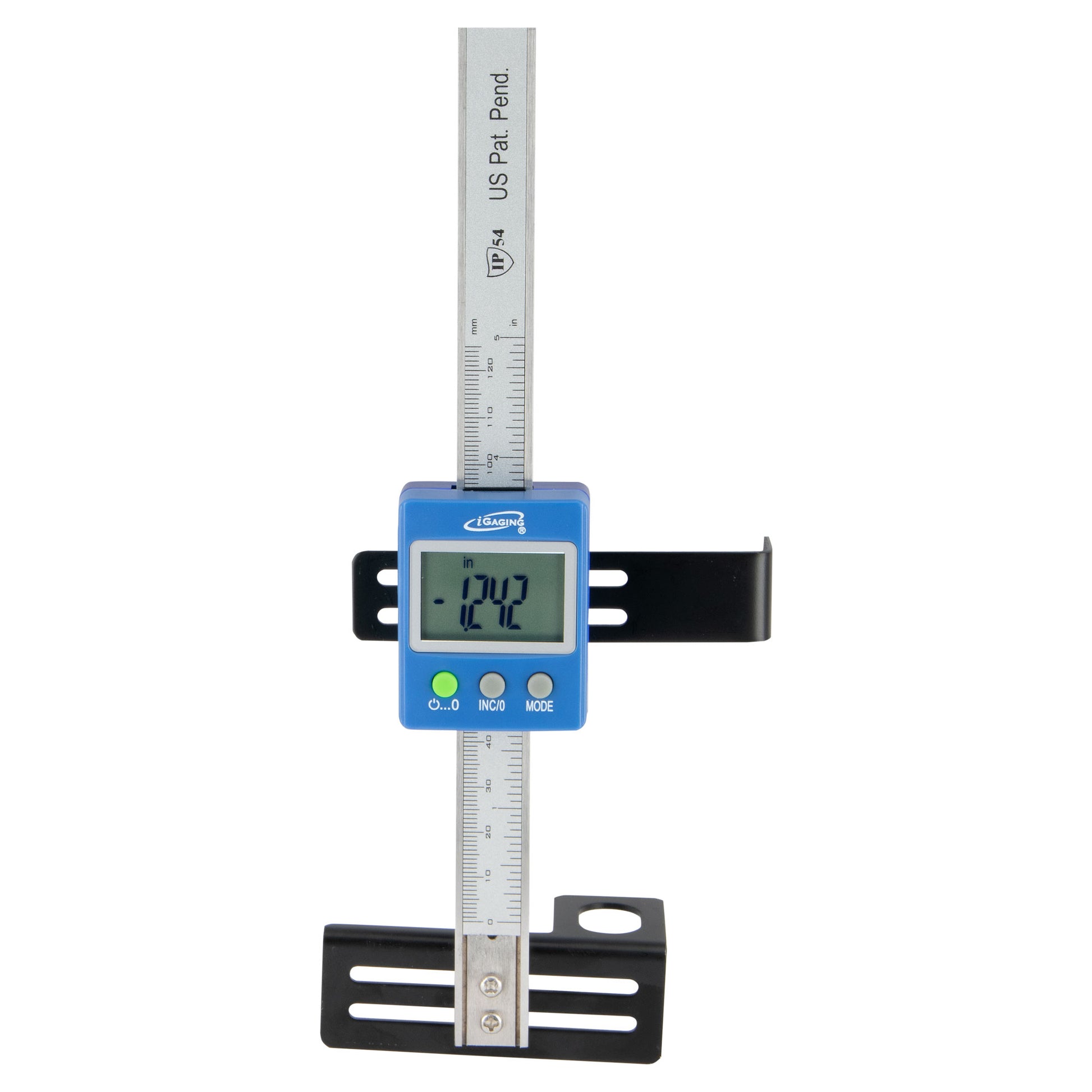

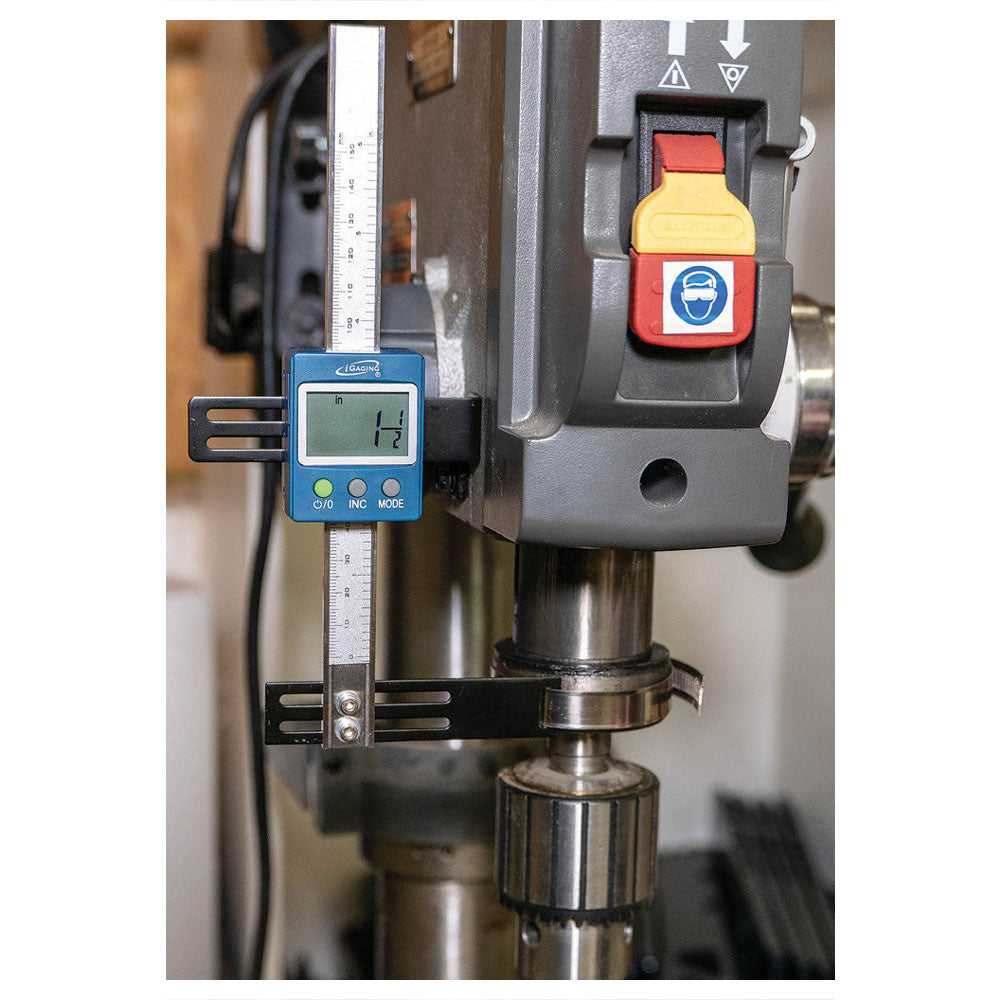

The iGaging EZ-Depth Drill Press DRO improves the accuracy and precision of your hole drilling. It is attached directly to the collar on the quill and the side frame of the drill press. Zero the display with the drill in contact with the workpiece, then use the digital display to measure the drilled depth.
Display includes fractional inch, decimal inch, and millimeters.
Buttons include On/Off/0 button, INC button for toggling between absolute and incremental mode, and a Mode button to change measurement display.
Instructions include four mounting methods to suit different drill press designs.
IP54 protective rating for moisture and dust resistance.

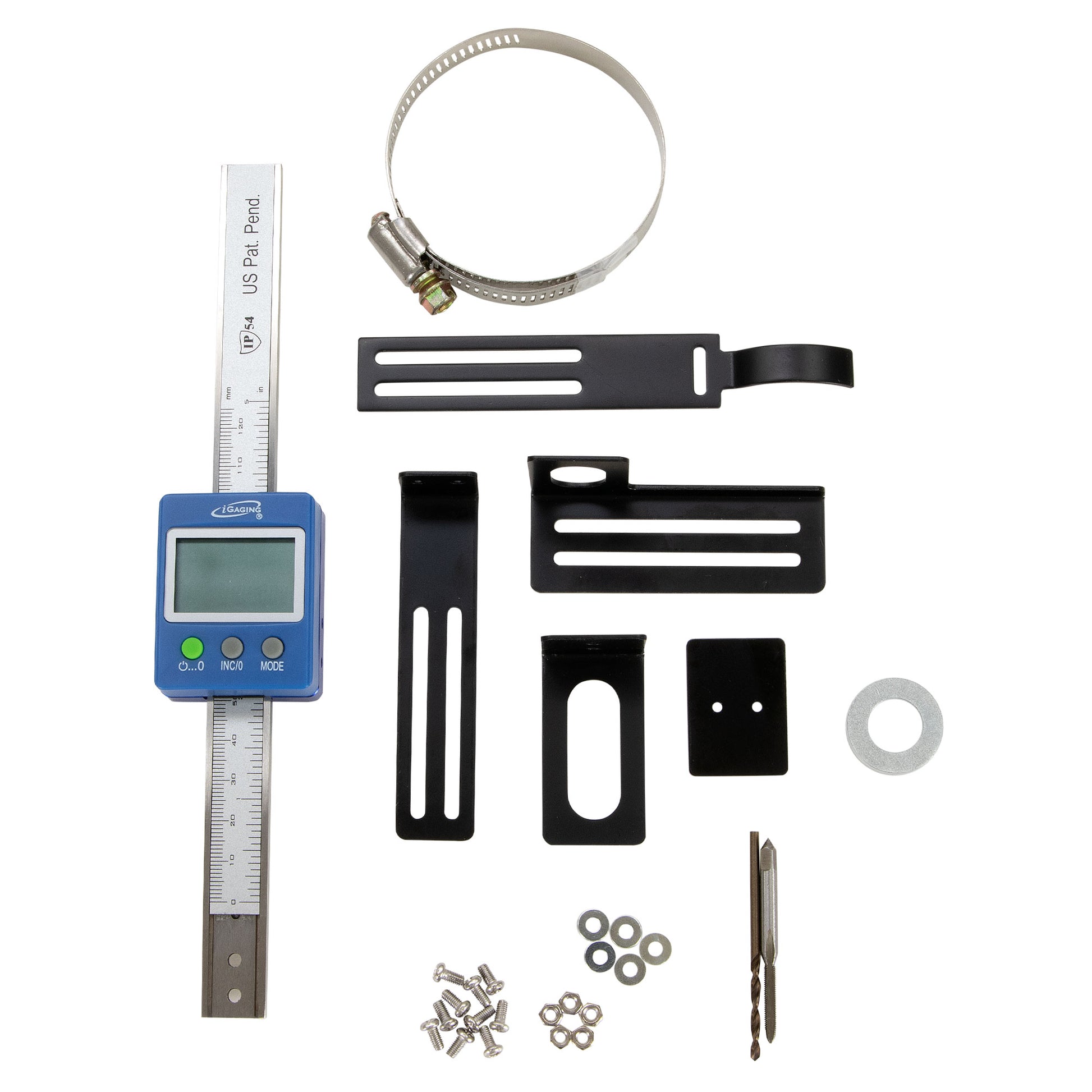

Includes double rail mounting brackets, installation parts and tools as well as a 3V CRF2032 battery.

Specifications

Range: 0" - 5" (0.000 mm - 127.000 mm)

Resolution: 0.0005" (0.013 mm)

Accuracy: 0.001" (0.025 mm)

Clear to Zero: YES

Inch/mm Display: YES

International Protection Rating: IP54

Incremental/Absolute: YES
