Digital Position Readout - Tailstock, Bench Lathe

Digital Position Readout - Tailstock, Bench Lathe

5880

$119.95 USD
$119.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • This DRO kit is specifically made for the C4/SC4 bench lathe tailstocks
  • Mounts right to the back of the tailstock to give you accurate quill depth readings
  • Resolution: 0.0001", accuracy: 0.001"
  • Buttons for on/off, zero, and inch/mm
  • Handwheel: 80 mm OD, 8 mm bore, 2 mm key

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This digital position readout for the tailstock works with C4 lathes made by SIEG and uses a rotary encoder for measurements.
Designed for the C4 and SC4 class of bench lathes including HiTorque bench lathes.

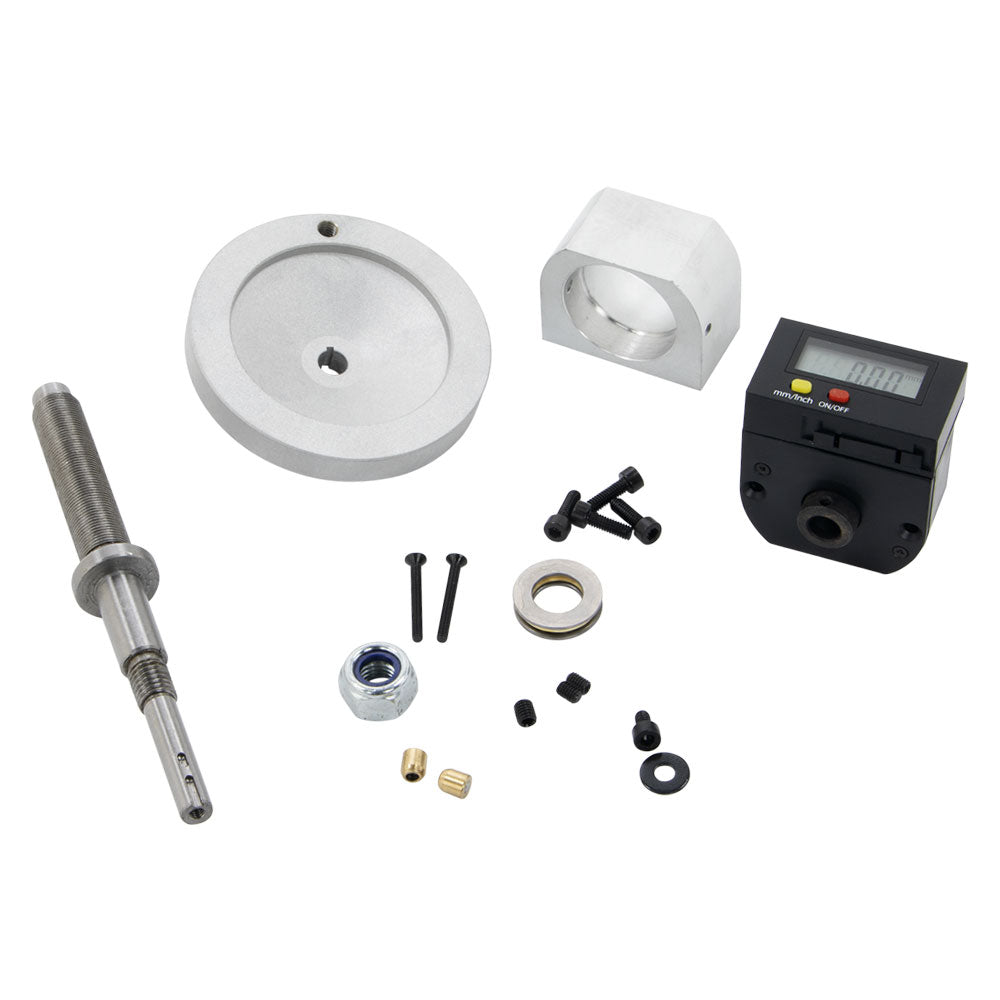

Kit includes a digital readout, handwheel, bracket, feed screw thrust bearing and fasteners.
Handle of handwheel is not provided in kit however the handwheel bolt and handle from your machine should fit. The new handwheel, like the original, has a 6mm thread. For new handle parts, see related products link.
See the Compatibility tab for machines that work with this product.

Specifications

Repeatability: 0.0005" (0.013 mm)

Resolution: 0.0001" (0.003 mm)

Accuracy: 0.001" (0.025 mm)

Technology: Rotary encoder

Clear to Zero: YES

Inch/mm Display: YES

Made In: China

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  • SIEG C4 8.5x16 Bench Lathe
  • SIEG SC4 8.5x16 Bench Lathe
  • Travers Tools OT218410 OTMT 8x16 Bench Lathe
  • LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7600 HiTorque 9x20 Bench Lathe
  • LittleMachineShop.com 7650 HiTorque 9x20 Bench Lathe
