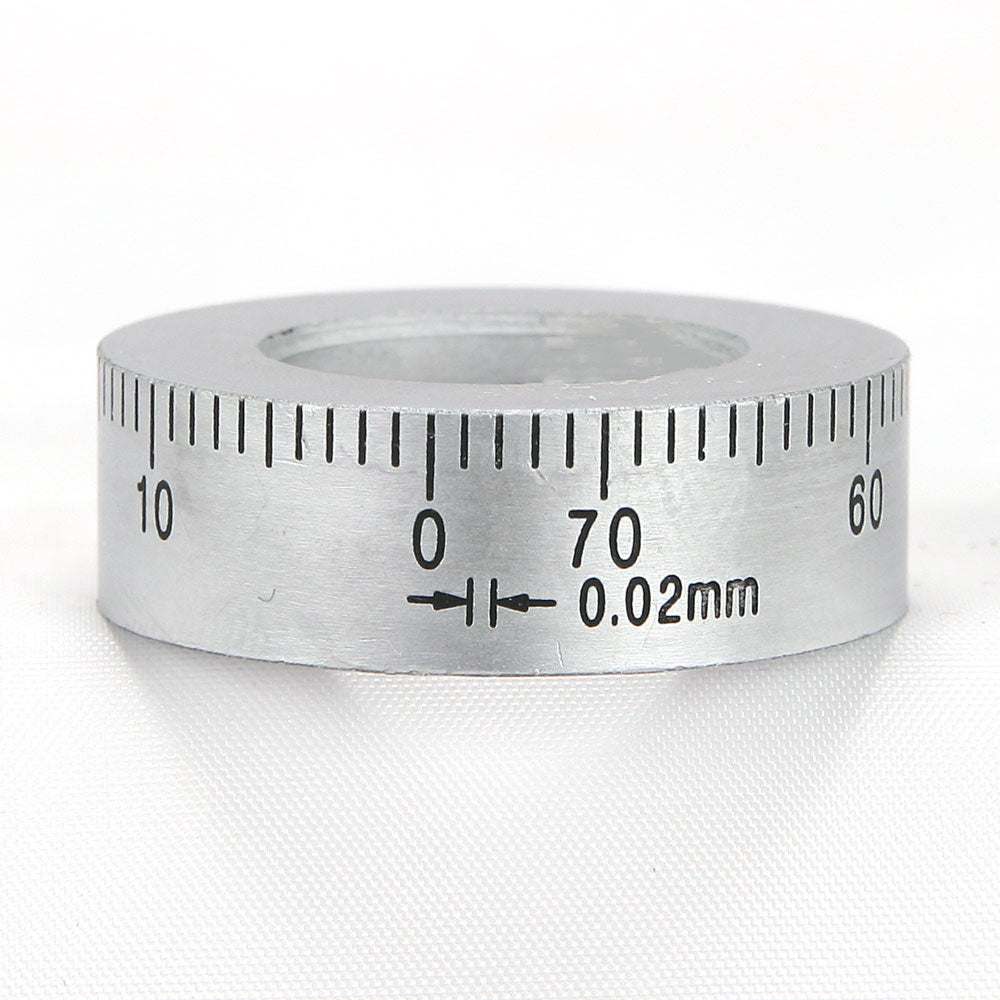

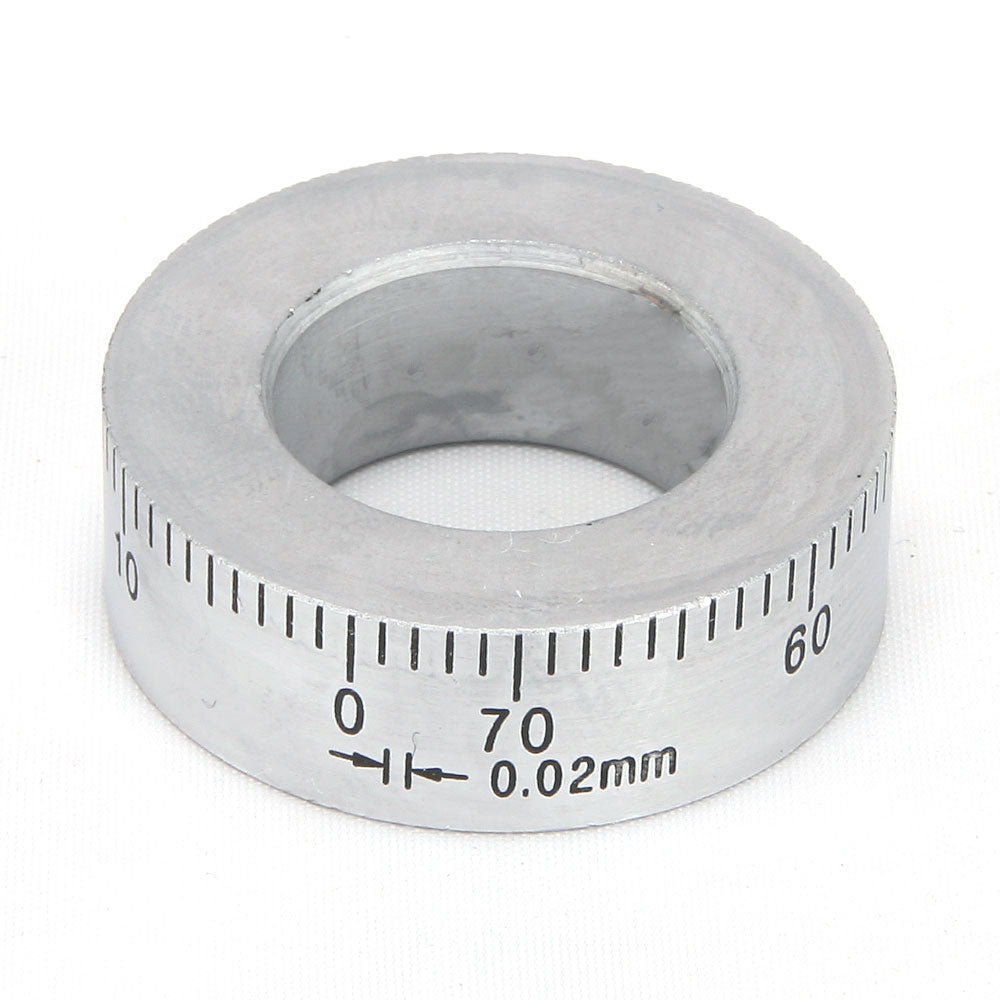

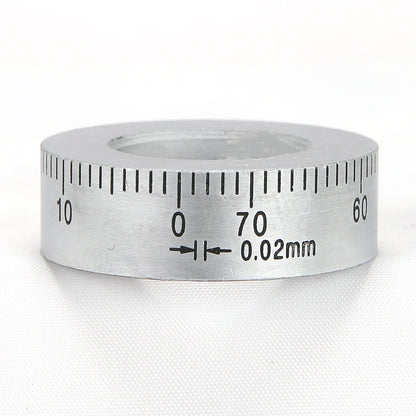

Graduated Dial, 75 Divisions (component)
Graduated Dial, 75 Divisions (component)
SKU:1984
In stock
Couldn't load pickup availability
Key Features
Key Features
- Graduated dial, 75 divisions
- Used on X- and Y-axes of the metric feed kit for mini mills
- OD: 35 mm
- ID: 20 mm
- Width: 11.3 mm
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This graduated dial is used on both the X- and Y-axes of the metric feed kit for the mini mill.
This is not a standard part on any mini mill sold in the US.
The dial is 35 mm OD, 20 mm ID, and 11.3 mm wide.
See the Compatibility tab for products that work with this product.
Chris's Tips
|
|
|
ID |
OD |
Width |
|
1385 |
Dial, 40 Divisions |
12 mm (0.47") |
33 mm (1.30") |
12.0 mm (0.47") |
|
1483 |
Dial, 62.5 Divisions |
20 mm (0.79") |
35 mm (1.38") |
11.2 mm (0.44") |
|
1517 |
Dial, Z-Axis Fine Feed |
20 mm (0.79") |
29 mm (1.14") |
9.0 mm (0.35") |
|
1763 |
Dial, 50 Divisions |
20 mm (0.79") |
35 mm (1.38") |
11.2 mm (0.44") |
|
1947 |
Dial, 50 Divisions |
12 mm (0.47") |
33 mm (1.30") |
12.0 mm (0.47") |
