Knurler, Large Capacity
Knurler, Large Capacity
SKU:1911
In stock
Couldn't load pickup availability
Key Features
Key Features
- 0 to 2" (50 mm) diameter capacity
- Fits standard 4-way and quick change tool posts
- Includes three sets of knurls
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

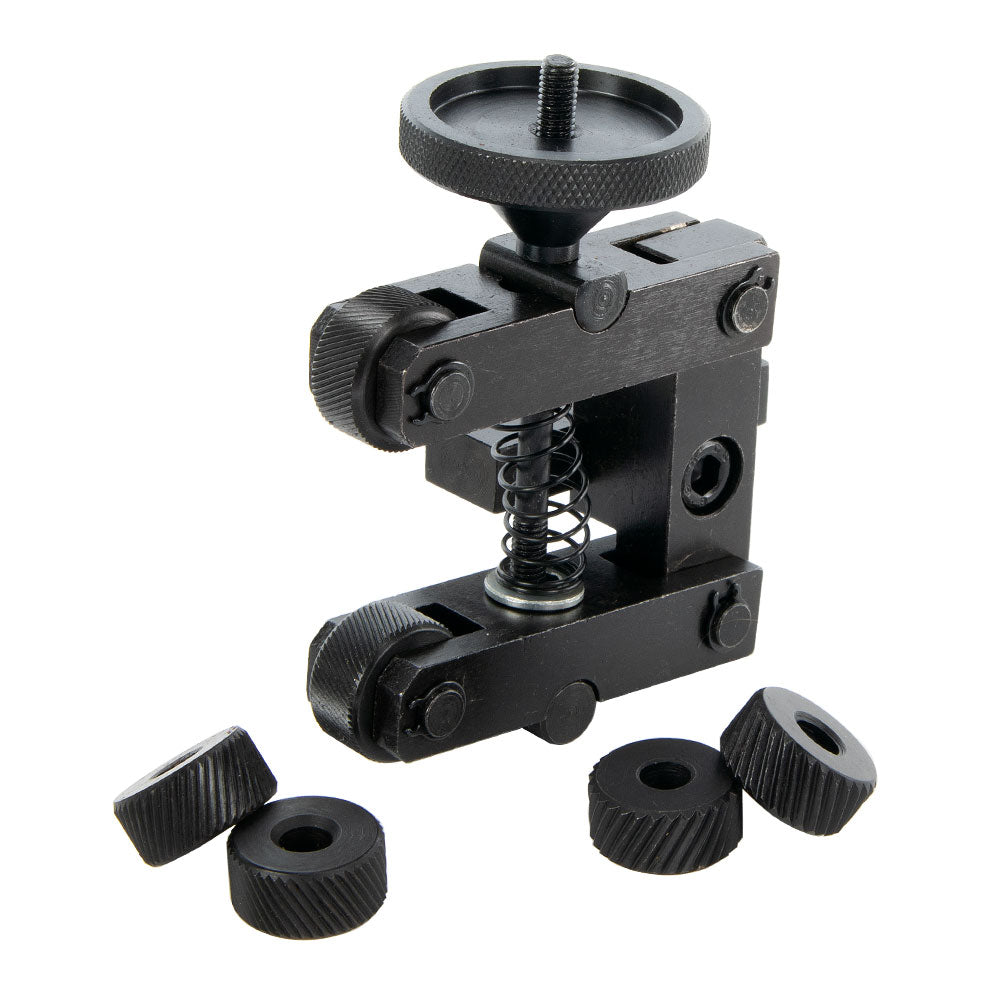

This scissors knurling tool is made to our design, specifically for the mini lathe.
This knurler fits in the standard tool post of the mini lathe without any modification. This knurling tool also works with any of the quick change tool posts we sell.
The mounting bar is 3/8" (9.5 mm) tall so it replaces a 3/8" tool bit.
It comes with fine (33 lines per inch, 0.8 mm pitch), medium (21 lines per inch, 1.2 mm pitch), and coarse (14 lines per inch, 1.8 mm pitch) diamond knurls.
Chris's Tips
Here is how to figure out stock diameters for even knurls, based on work by Walt White.
Knurling is usually pretty forgiving of the diameter of the stock you knurl, but if you use the diameters calculated you are pretty much guaranteed success.
The knurls are held in place with 1/4" retaining rings. If you are going to change the knurls, go to your local hardware store and get some 1/4" retaining rings. (Or get them here.) The ones you get in the US will have proper holes for the pins of the retaining ring pliers and you will be able to re-use them. The retaining rings that come on the knurlers are pretty much one-use clips.
