Clamping Kit, 7/16" T-Slot
- Nuts fit 7/16" (12 mm) T-Slots
- Stud thread: 3/8"-16
- 58 Pieces
- All parts are heat treated
- Storage rack included
Weight: 14.0 lb
Price: $54.95
http://lmscnc.com/1144
This machinist clamping kit fits the 12 mm T-slots on the mini mill.

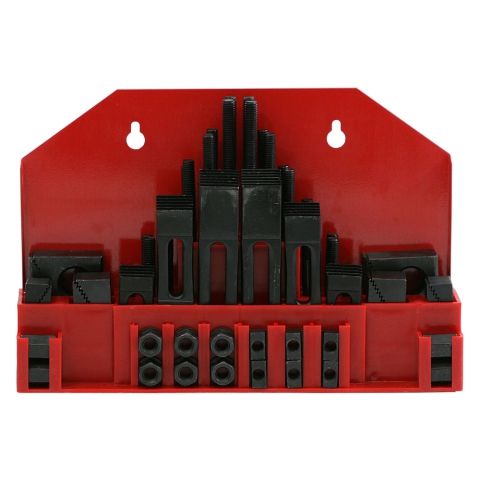

The T-slot clamp kit includes 24 3/8"-16 studs, 12 step blocks in pairs, 6 T-slot nuts, 6 flange nuts, 4 coupling nuts, and 6 step clamps.
Comes in a wall mount rack.
The stated dimension of the clamping kit is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.28" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.2 mm |
4 mm |
10 mm |
12 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M10 |
12 mm |
7 mm |
18 mm |
18 mm |

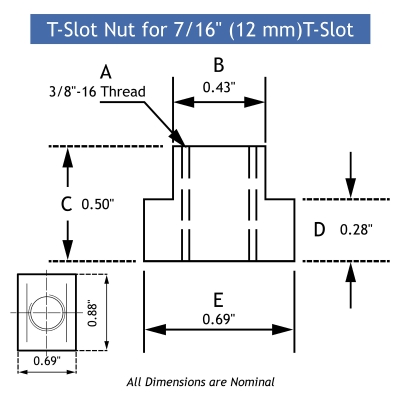

| Stud Thread | 3/8" -16 |
| Nominal T-Slot Width | 7/16" (12 mm) |
| T-Slot Width Range | 0.43" - 0.49" (10.9 mm - 12.6 mm) |
Nominal Sizes for 7/16" T-Slot Nut
Suitable for 12 mm T-Slot tables on common mini mills.
 |
Compatibility
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- SIEG X2P Mini Mill
- LittleMachineShop.com 4962 SIEG Mini Mill
- SIEG X2D Mini Mill
- SIEG X2L Mini Mill
- WEN 33013 WEN Mini Mill
- SIEG X2LF Mini Mill
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
- LittleMachineShop.com 3900 HiTorque Mini Mill
- SIEG SX2L Mini Mill
- LittleMachineShop.com 3960 HiTorque Mini Mill
- LittleMachineShop.com 3990 HiTorque Mini Mill
- LittleMachineShop.com 4190 HiTorque Mini Mill
- SIEG SX2LF Mini Mill
- Grizzly G0781 Mill/Drill
