Bed Extension Kit 16"

Bed Extension Kit 16"
  • Precision ways are approximately 28-3/8" long
  • Rack is approximately 17-3/4" long
  • Lead screw is approximately 29-5/16" long
  • PLEASE CHECK COMPATABILITY BEFORE ORDERING
Part Number: 5000
Weight: 34.1 lb

Price: $199.95

In stock
Quantity:


PayPal Credit

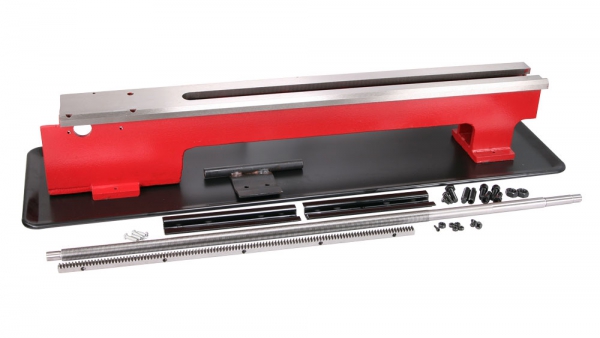

This lathe bed extension kit turns your 7x10, 7x12, or 7x14 lathe into a 7x16 lathe. This lathe conversion kit includes a bed casting, a lead screw, a rack, a motor mount, a chip pan, 2 chip pan braces, several fasteners, and complete instructions.

The 7x16 bed is actually 8" longer than the 7x10 bed. It is 4" longer than the 7x12 bed.

This is NOT a bolt-together kit. You must drill and tap 9 holes in the new bed casting to match your lathe. You need three metric taps: M3x0.5, M6x1, and M8x1.25. If you don't have metric drills, you can use letter and number drills for tap drills. (The sizes are given in the instructions.)

Chris Chris' Tips
This kit comes with complete instructions for installation.

If you don't have the metric taps required, we have a tap and tap drill kit that has just what you need to install this kit.

Here is "not really a review" of the bed extension kit.

Here is a drawing of the bed way cross section.

Buddy at The Radio Shop documents the whole process in this video.

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  •   LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Warco 4800-350 7x14 Mini Lathe (Imperial)
  •   Warco 4820-350 7x14 Mini Lathe (Metric)
  •   Grizzly G0765 7x14 Mini Lathe
