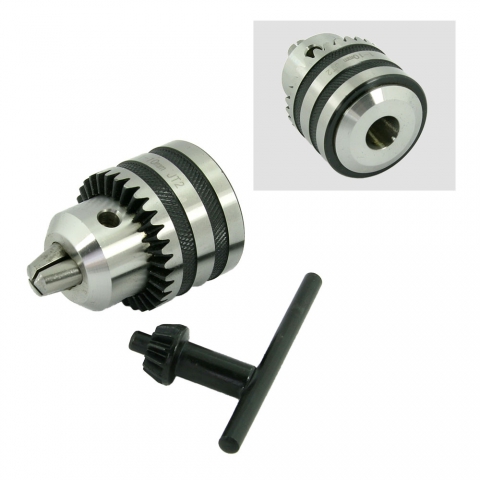

Drill Chuck, 3/8"

Drill Chuck, 3/8"

High degree of accuracy
All working parts hardened
Key included
Capacity: 1/32" - 3/8"
Mounts to 2 Jacobs taper arbor

Part Number: 1213
Weight: 0.94 lb

Price: $13.95

Share this page:
http://lmscnc.com/1213

1/32" - 3/8" Capacity drill chuck designed for bench and floor drill presses, mills, lathes. Hardened ground center jaw improves durability and ensures straight alignment.

Runout of this chuck is 0.008" (0.20 mm) or less.

Chris

Chris' Tips
Use a 2MT to 2JT drill chuck arbor to use this chuck with the mini lathe. Use a 3MT to 2JT drill chuck arbor to use this chuck with the mini mill.

Specifications
Capacity	0.04" - 0.39" (1.0 mm - 10.0 mm)
Maximum Runout	0.008" (0.20 mm)
Mount	2 Jacobs Taper

Compatibility

This product works with these LittleMachineShop.com products:

This product works with lathes with a 0 to 8 inch swing including:

Emco Unimat 3 3x8 Lathe
Emco Unimat 4 3x8 Lathe
Sherline 4400/4410 3.5x17 Lathe
Sherline 4000/4100 3.5x8 Lathe
Grizzly G0745 4x6 Micro Metal Lathe
Harbor Freight 95012 Central Machinery 4x5 Micro Lathe
SIEG C0 4x5 Lathe
Prazi MD200 4x8 Lathe
Proxxon PD 230/E 4.4x9 Lathe
Taig Micro Lathe II 4x9 Micro Lathe
Grizzly M1015 Shop Fox 6x10 Micro Lathe
Micro-Mark 85181 MicroLux 6x10 Micro Lathe
SIEG C1 6x10 Micro Lathe
Woodstock International M1015 Shop Fox 6x10 Micro Lathe
Emco Compact 5 5x14 Lathe
Prazi SD300 5x12 Lathe
Craftsman & Atlas 612 6x18 Lathe
Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3005 7x12 Mini Lathe (Imperial)
Warco 3004 7x12 Mini Lathe (Metric)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Warco 4800-350 7x14 Mini Lathe (Imperial)
Warco 4820-350 7x14 Mini Lathe (Metric)
Grizzly G0765 7x14 Mini Lathe
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
Prazi SD400 7x16 Lathe
MX-8x14 Preenex (and others) 8x14 Lathe
Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
Grizzly G0768 8x16 Benchtop Lathe
Emco Compact 8 8x17 Lathe
Travers Tools OT218410 OTMT 8x16 Bench Lathe

In your instruction manual, this part appears on the parts list as:

Item No	Models
139	Harbor Freight 47158 Central Machinery Micro Mill Clarke CMD10 Metalworker Micro Mill Various X1-US SIEG Micro Mill

Click your model to see the complete parts list.
