Arbor, Drill Chuck 2MT Short to 2JT

Part Number: 1803
Weight: 0.28 lb

Price: $9.85

Share this page:
http://lmscnc.com/1803

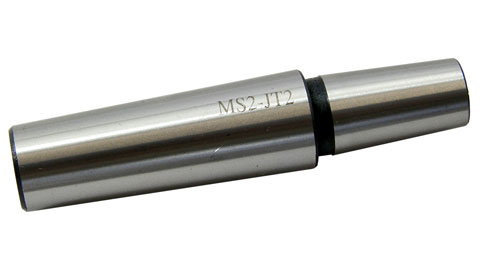

Drill chuck arbor.

2 Morse taper to 2 Jacobs taper. This arbor has a short Morse taper and does not need to be cut to use in the tail stock of the mini lathe.

Chris' Tips

Chris' Tips
This product is specifically designed for use on the mini lathe tailstock.

The 2 Morse taper is the correct length for the lathes listed below. Don't buy this product for other lathes as it won't eject from the tailstock when you retract the quill.

If you want this product for a Grizzly G0765 7x14 lathe, put a note on your order: "For a G0765. Need a standard length drill chuck arbor." We will substitute the correct arbor.

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

1213 Drill Chuck, 3/8"
1659 Drill Chuck, 3/8" Keyless
4862 Drill Chuck, 3/8" Professional Grade

This product works with lathes with a short 2 Morse taper tailstock taper including:

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3005 7x12 Mini Lathe (Imperial)
Warco 3004 7x12 Mini Lathe (Metric)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Warco 4800-350 7x14 Mini Lathe (Imperial)
Warco 4820-350 7x14 Mini Lathe (Metric)
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
