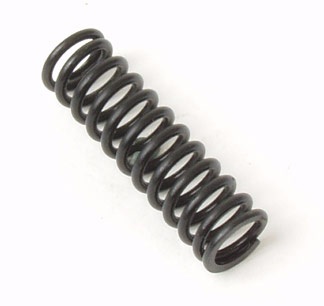

Spring, 10 mm x 33 mm

10mm x 33 xx
Wire Diameter 1.4mm

Part Number: 1349
Weight: 0.01 lb

Price: $1.60

Share this page:
http://lmscnc.com/1349

Description

This is the spring for the back gear shifting mechanism.

1.4x10x33 mm

Specifications

Specifications
Spring Type	Compression
End Type	Closed
Overall Length	1.3" (33 mm)
Outside Diameter	0.39" (10.0 mm)
Wire Diameter	0.06" (1.4 mm)
Wire Shape	Round

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
164	Micro-Mark 84631 MicroLux Mini Lathe - 7x16
174	LittleMachineShop.com 4100 HiTorque Mini Lathe - 7x12 LittleMachineShop.com 4200 HiTorque Mini Lathe - 7x12 LittleMachineShop.com 5100 HiTorque Mini Lathe - 7x16 LittleMachineshop.com 5200 HiTorque Mini Lathe - 7x16 Various SC2-US SIEG Mini Lathe LittleMachineShop.com 7300 HiTorque Mini Lathe - 7x16 LittleMachineShop.com 7350 HiTorque Mini Lathe - 7x16
37	Enco 110-0803 Enco Mini Lathe - 7x10 Harbor Freight 93212 Central Machinery Mini Lathe - 7x10 Harbor Freight 33684 Central Machinery Mini Lathe - 7x10 MSC 0192857 Enco Mini Lathe - 7x10 BusyBee CX704 Craftex Mini Lathe - 7x12 Grizzly G8688 Grizzly Mini Lathe - 7x12 Harbor Freight 93799 Central Machinery Mini Lathe - 7x12 Homier 03911 Speedway Mini Lathe - 7x12 Micro-Mark 82500 MicroLux Mini Lathe - 7x12 Northern Tool 49656 KLUTCH Mini Lathe - 7x12 Cummins 5278 Cummins Mini Lathe - 7x12 Tormach 30689 Tormach Lathe, Duality CNC Various C2-US SIEG Mini Lathe WEN 3455 WEN Mini Lathe - 7x12 Princess Auto 8507659 Powerfist Mini Lathe - 7x12 Travers Tools OT222300 OTMT Mini Lathe - 7x12 Eastwood 32497 Mini Lathe - 7x12 LittleMachineShop.com 1012 LittleMachineShop.com Mini Lathe - 7x12 LittleMachineShop.com 1014 LittleMachineShop.com Mini Lathe - 7x14 LittleMachineShop.com 4959 SIEG Mini Lathe - 7x14 (C3) Micro-Mark 82710 MicroLux Mini Lathe - 7x14 Various C3-US SIEG Mini Lathe - 7x14
80	BusyBee CX611 Craftex Small Mill Grizzly G0619 Grizzly Small Mill Various SX3 SIEG Small Mill Travers Tools OT2225SX3 OTMT Small Mill
89	LittleMachineShop.com 7450 HiTorque Mini Lathe - 7x16

Click your model to see the complete parts list.
