Bushing and Key, Mini Lathe
- Mini lathe bushing and key
- Bushing is 12 mm OD, 8 mm ID, and 16 mm long
- Key is 3 mm x 2.3 mm x 16 mm long, 2.3 thick
- Fits numerious SIEG C3 and SC2 lathes
Part Number: 1362
Weight: 0.02 lb
Weight: 0.02 lb
Price: $4.84
Share this page:
http://lmscnc.com/1362
http://lmscnc.com/1362

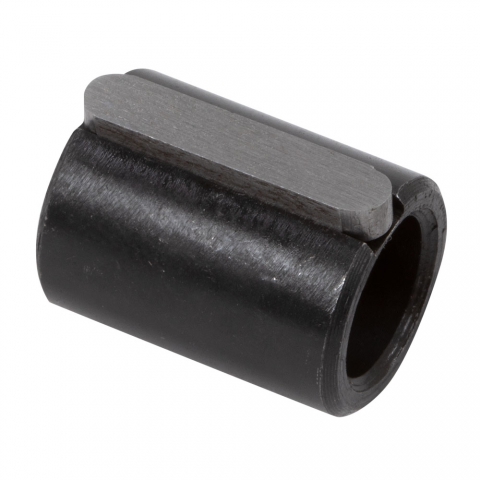

This lathe bushing and external key mounts the B and C change gears.
The machine bushing is 12 mm OD, 8 mm ID, and 16 mm long. The key is 3 mm x 2.3 mm x 16 mm long. The key is 2.3 mm thick because the keyway in the bushing is shallow.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
SIEG C3 7x14 Mini Lathe
