Graduated Dial, 40 Divisions, Mini Lathe

Graduated Dial, 40 Divisions, Mini Lathe

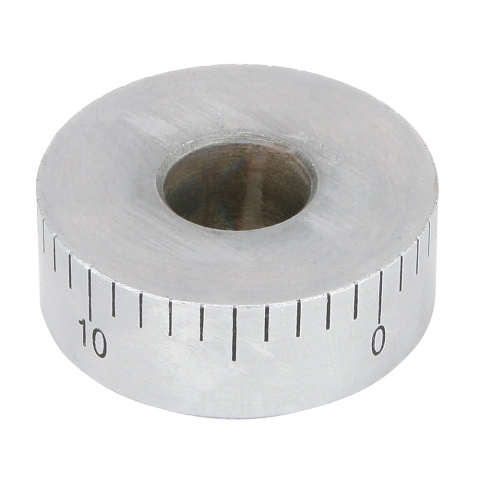

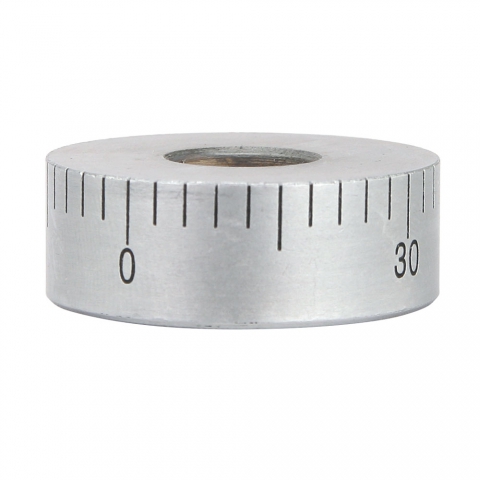

  • Graduated dial, 40 divisions
  • Mini lathe cross slide and compound rest
  • OD: 33 mm
  • ID: 12 mm
  • Width: 12 mm
Part Number: 1385
Weight: 0.15 lb

Price: $13.48

This product is currently backordered.

Estimated availability:
13-Feb-2023
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/1385 copy content icon
This dial is used on the cross slide and the compound rest. It works with screws with a 1 mm pitch (approximately 0.040" per revolution).

The dial is 33 mm OD, 12 mm ID, and 12 mm wide.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Chris Chris' Tips
Here are the dimension of the various dials we have.

    ID OD Width
1385 Dial, 40 Divisions 12 mm (0.47") 33 mm (1.30") 12.0 mm (0.47")
1483 Dial, 62.5 Divisions 20 mm (0.79") 35 mm (1.38") 11.2 mm (0.44")
1517 Dial, Z-Axis Fine Feed 20 mm (0.79") 29 mm (1.14") 9.0 mm (0.35")
1763 Dial, 50 Divisions 20 mm (0.79") 35 mm (1.38") 11.2 mm (0.44")
1947 Dial, 50 Divisions 12 mm (0.47") 33 mm (1.30") 12.0 mm (0.47")
The Z-Axis Fine Feed Dial has a knurled ridge that is 33 mm in diameter and 1.7 mm wide.
