T-Slot Nut, 12 mm
- Fits 12 mm T-slots
- Threaded M8
- Black oxide finish
- Heat treated 1040 steel, case hardened
- Fits T-slots measuring 0.46" to 0.54" in width
Part Number: 1418
Weight: 0.04 lb
Weight: 0.04 lb
Price: $4.95
Share this page:
http://lmscnc.com/1418
http://lmscnc.com/1418
These 12 mm T-slot nuts are threaded M8.
These are the T-slot nuts that come with the mini mill.
They are heat treated and have a black oxide finish.
The stated dimension of the T-slot nut is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.27" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.0 mm |
4 mm |
10 mm |
10 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M8 |
12 mm |
7 mm |
18 mm |
18 mm |

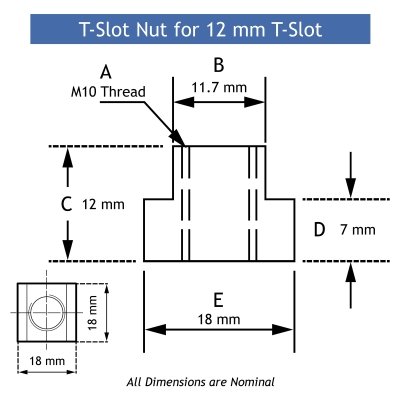

Nominal Sizes for 12 mm T-Slot Nut
 |
Compatibility
This product works with mills with a 0.46 to 0.54 inch T-slot width including:
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- King Canada KC-15VS King Industrial Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- SIEG X2P Mini Mill
- LittleMachineShop.com 4962 SIEG Mini Mill
- SIEG X2D Mini Mill
- SIEG X2L Mini Mill
- WEN 33013 WEN Mini Mill
- SIEG X2LF Mini Mill
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
- LittleMachineShop.com 3900 HiTorque Mini Mill
- SIEG SX2L Mini Mill
- LittleMachineShop.com 3990 HiTorque Mini Mill
- LittleMachineShop.com 3960 HiTorque Mini Mill
- LittleMachineShop.com 4190 HiTorque Mini Mill
- LittleMachineShop.com 6450 HiTorque Mini Mill
- SIEG SX2LF Mini Mill
- Grizzly G0781 Mill/Drill
- SIEG X2.7 Bench Mill
- SIEG X2.7L Bench Mill
- WEN 33075 WEN Bench Mill
- LittleMachineShop.com 5500 HiTorque Bench Mill
- LittleMachineShop.com 6500 HiTorque Bench Mill
- SIEG SX2.7 Bench Mill
- LittleMachineShop.com 6570 HiTorque Bench Mill
- LittleMachineShop.com 5550 HiTorque Bench Mill
- LittleMachineShop.com 6550 HiTorque Bench Mill
- SIEG SX2.7L Bench Mill
- Grizzly G0463 Mill/Drill
- Harbor Freight 93885 Central Machinery Mill/Drill
- SIEG X3 Small Mill
- Woodstock International M1110 Shop Fox Small Mill
- BusyBee CX611 Craftex Small Mill
- Grizzly G0619 Mill/Drill
- SIEG SX3 Small Mill
- Travers Tools OT2225SX3 OTMT Small Mill
- Grizzly G0704 Mill/Drill With Stand
- Grizzly G0759 Mill/Drill With Stand
- Grizzly G3103 Vertical Mill
- Grizzly G3102 Vertical Mill
- Harbor Freight 42976 Central Machinery Mill/Drill
- SIEG X3.5 Large Bench Mill
- LittleMachineShop.com 6750 HiTorque Large Bench Mill
- LittleMachineShop.com 6770 HiTorque Large Bench Mill
- LittleMachineShop.com 6700 HiTorque Large Bench Mill
- Grizzly G0722 Bench Mill
- Grizzly G0720R Bench Mill
- Grizzly G0720 Bench Mill
- SIEG SX4 Bench Mill
