T-Slot Nuts Individual Sizes

T-Slot Nuts Individual Sizes
  • Black oxide finish
  • Heat treated 1040 steel
  • Case hardened
P/N 3097
$1.95
P/N 5592
$2.49

P/N 1269
$2.49

P/N 2021
$2.49

P/N 5971
$2.95

P/N 2059
$2.59

P/N 2058
$2.95

P/N 2991
$4.07

P/N 1418
$7.95

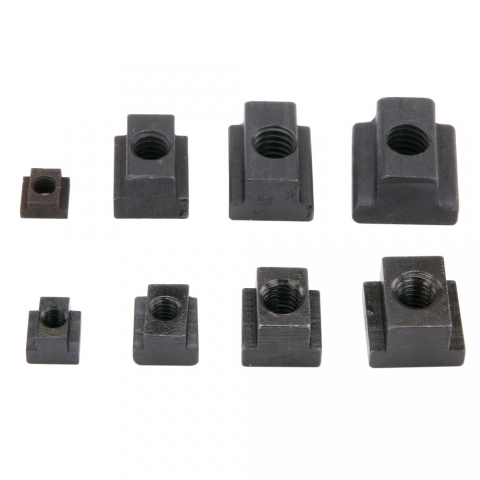

We carry a wide range of T-Slot nuts in both inch and metric measurements.

They are heat treated and have a black oxide finish.

The stated dimension of the T-slot nut is the width at the top of the T-slot.

Chris Chris' Tips
Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

3097, 2718*

1/4"

0.24"

M5

0.23"

0.10"

0.38"

0.38"

5592, 5491*

3/8"

0.37"

5/16" - 18

0.50"

0.19"

0.63"

0.88"

1269, 1144*, 1426*, 5910*, 5975*

7/16"

0.43"

3/8" - 16

0.50"

0.28"

0.69"

0.88"

2021, 1268*

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

5971, 3667*, 4833*

5/8"

0.61"

1/2" - 13

0.63"

0.34"

1.00"

1.13"

2059, 1943*, 2718*

6 mm

5.7 mm

M5

8.2 mm

4 mm

10 mm

12 mm

2058, 1427*, 1813*, 1972*, 2039*, 3442*

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1418

12 mm

11.7 mm

M10

12 mm

7 mm

18 mm

18 mm

*Indicates t-slot nuts included as part of a clamping kit.
