T-Slot Nut, 1/4"

T-Slot Nut, 1/4"
  • Fit 1/4" T-slots
  • Threaded M5
  • Black oxide finish
  • Heat treated 1040 steel, case hardened
  • Fits T-slots measuring 0.25" - 0.30" in width
Part Number: 3097
Weight: 0.00 lb

Price: $1.95

This product is currently backordered.

Estimated availability:
31-Aug-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

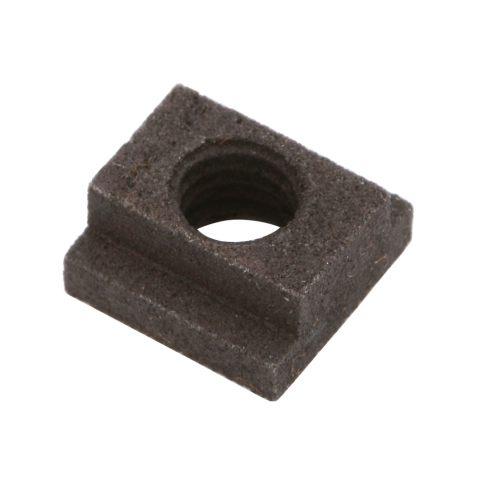

These T-slot nuts fit a 1/4" T-slot and are threaded M5.

These nuts fit T-slots measuring 0.25 - 0.30 in width, including some Sherline mills and Taig micro mills.

They are heat treated and have a black oxide finish.

The stated dimension of the T-slot nut is the width at the top of the T-slot.

Chris Chris' Tips
Measure the width at the top of the T-slot as shown in the photo below. This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.


Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

3097, 2718*

1/4"

0.24"

M5

0.23"

0.10"

0.38"

0.38"

5592, 5491*

3/8"

0.37"

5/16" - 18

0.50"

0.19"

0.63"

0.88"

1269, 1144*, 1426*, 5910*, 5975*

7/16"

0.43"

3/8" - 16

0.50"

0.28"

0.69"

0.88"

2021, 1268*

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

5971, 3667*, 4833*

5/8"

0.61"

1/2" - 13

0.63"

0.34"

1.00"

1.13"

2059, 1943*, 2718*

6 mm

5.7 mm

M5

8.2 mm

4 mm

10 mm

12 mm

2058, 1427*, 1813*, 1972*, 2039*, 3442*

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1418

12 mm

11.7 mm

M10

12 mm

7 mm

18 mm

18 mm

*Indicates t-slot nuts included as part of a clamping kit.

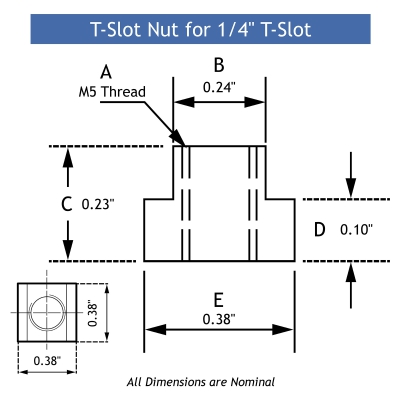

Nominal Sizes for 1/4" T-Slot Nut

1/4 inch t slot nut

Compatibility

This product works with mills with a 0.25 to 0.3 inch T-slot width including:

  •   Taig 2018 Micro Mill
  •   Taig 2019 Micro Mill
  •   Taig 5019 Micro Mill
