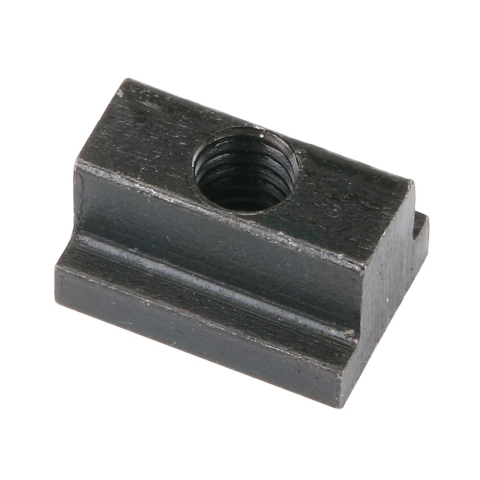

T-Slot Nut, 3/8"
- Fit 3/8" T-slots
- Threaded 5/16"-18
- Black oxide finish
- Heat treated 1040 steel, case hardened
- Fits T-slots measuring 0.375" to 0.42" in width
Weight: 0.05 lb
Price: $2.49
This product is currently backordered.
Estimated availability:
01-Jun-2023
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
http://lmscnc.com/5592
The nuts are the correct size for many mill drills.
They are heat treated and have a black oxide finish.
The stated dimension of the T-slot nut is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.28" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.2 mm |
4 mm |
10 mm |
12 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M10 |
12 mm |
7 mm |
18 mm |
18 mm |
Nominal Sizes for 3/8" T-Slot Nut
 |
Compatibility
This product works with these LittleMachineShop.com products:
This product works with mills with a 0.37 to 0.42 inch T-slot width including:
- Grizzly G0758 Mill/Drill
- BusyBee CX705 Craftex Lathe Mill Combo
- Grizzly G0516 Lathe Mill Combo
- SIEG M6 Multi-purpose Machine
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| Grizzly G0463 Grizzly Small Mill Harbor Freight 93885 Central Machinery Small Mill Various X3-US SIEG Small Mill Woodstock International M1110 Shop Fox Small Mill |
