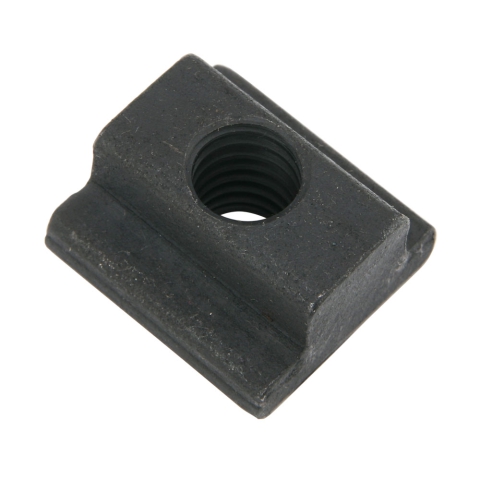

T-Slot Nut, 1/2"
- Fits 1/2" T-slots
- Threaded 3/8"-16
- Black oxide finish
- Heat treated 1040 steel, case hardened
- Fits T-slots measuring 0.5" to 0.6" in width
Part Number: 2021
Weight: 0.05 lb
Weight: 0.05 lb
Price: $2.49
Share this page:
http://lmscnc.com/2021
http://lmscnc.com/2021
These T-slot nuts fit a 1/2" T-slot and are threaded 3/8"-16.
The nuts are the correct size for many mill drills.
They are heat treated and have a black oxide finish.
The stated dimension of the T-slot nut is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.27" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.0 mm |
4 mm |
10 mm |
10 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M8 |
12 mm |
7 mm |
18 mm |
18 mm |
Nominal Sizes for 1/2" T-Slot Nut
 |
Compatibility
This product works with mills with a 0.5 to 0.6 inch T-slot width including:
- Grizzly G3102 Vertical Mill
- Grizzly G3103 Vertical Mill
- Harbor Freight 42976 Central Machinery Mill/Drill
- Grizzly G0720 Bench Mill
- Grizzly G0720R Bench Mill
- Grizzly G0722 Bench Mill
- SIEG SX4 Bench Mill
