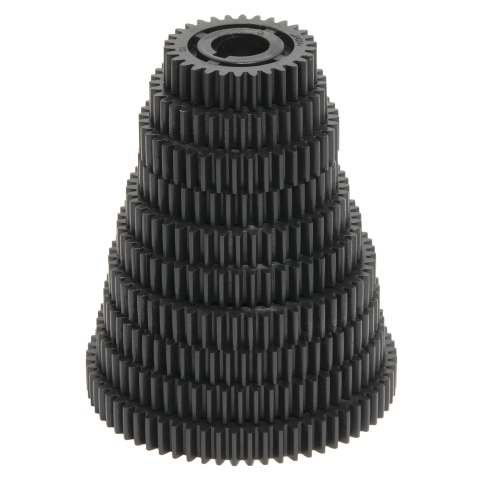

Change Gear Set, Mini Lathe
![Change Gear Set, Mini Lathe](/images/products/480/1523.480.jpg)
- Module 1 Metric gears
- Bore 12 mm
- Keyway 3 mm
- Width 7.5 mm
- Fit SIEG C2, SC2 and C3 classes of mini lathes
Weight: 0.28 lb
Price: $39.95
This product is currently backordered.
Estimated availability:
16-Aug-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
The gears have a 12 mm bore and a 3 mm keyway. The width (thickness) of each gear is 8 mm.
These gears all have teeth complying with ISO Module 1 standard.
See the Compatibility tab for machines that work with this product.
See the Contents tab for information on each part included with this product.
![Chris](/images/chris.gif)
- This set includes the following gears:
- 1 30 Tooth gear
- 1 35 Tooth gear
- 2 40 Tooth gear
- 1 45 Tooth gear
- 1 50 Tooth gear
- 1 55 Tooth gear
- 1 57 Tooth gear
- 1 60 Tooth gear
- 1 65 Tooth gear
Compatibility
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
