Lathe Chuck, 4-Jaw 4", Independent

Lathe Chuck, 4-Jaw 4", Independent

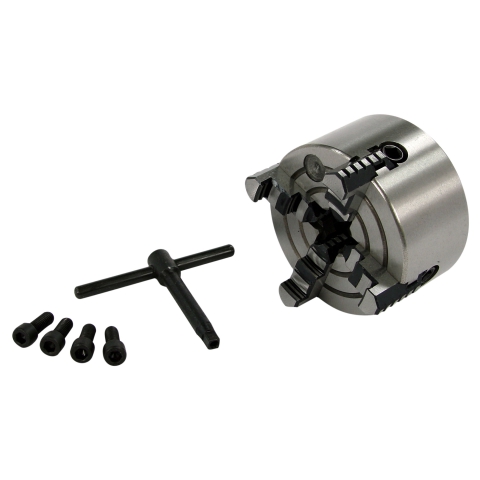

  • 4-Jaw Lathe Chuck
  • 4" (100 mm) diameter
  • Each jaw is independently adjustable and reversible
  • Plain back mounting
  • High quality steel, hardened and ground
Part Number: 1588
Weight: 7.00 lb

Price: $109.95

In stock
Quantity:


PayPal Credit
This 4 inch 4-jaw chuck requires an adapter for the mini lathe, but it fits the standard backplate for 9x20 lathes (with the addition of three more bolt holes).

It includes a chuck key.

This chuck has a 0.98" (25 mm) through hole. The chuck can hold work up to 3.94" (100 mm) in diameter.

Chris Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

To mount this chuck on an 8x12 or 8x14 lathe, simply drill three more bolt holes in the spindle flange. These are clearance holes so you can use a hand drill to drill them without removing the spindle from the lathe.

Specifications
Rated Capacity, Inside Jaws 0.24" - 1.77" (6.0 mm - 45.0 mm)
Rated Capacity, Outside Jaws 1.57" - 3.94" (40.0 mm - 100.0 mm)
Practical Maximum Capacity, Inside Jaws 2.75" (69.8 mm)
Practical Maximum Capacity, Outside Jaws 5.00" (127.0 mm)
Diameter, Overall 3.94" (100.0 mm)
Registration Recess Diameter 2.83" (72.0 mm)
Registration Recess Depth 0.14" (3.5 mm)
Bolt Circle Diameter 3.31" (84.0 mm)
Center Hole Diameter 0.98" (25.0 mm)
Height 2.13" (54.0 mm)
Jaw Height Above Face 0.83" (21.0 mm)
Height with Jaws 2.56" (65.0 mm)
Number and Size of Bolts 4 M8
Chuck Key 0.24" (6.0 mm)
Chuck Designation K72-100

Compatibility

This product works with these LittleMachineShop.com products:

This product works with lathes with a 100 mm flange chuck mount including:

  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   MX-8x14 Preenex (and others) 8x14 Lathe
  •   Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
  •   Grizzly G0768 8x16 Benchtop Lathe
  •   LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  •   SIEG SC4 8.5x16 Bench Lathe
  •   SIEG C4 8.5x16 Bench Lathe
  •   Travers Tools OT218410 OTMT 8x16 Bench Lathe
  •   LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  •   LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
