T-Slot Nuts (1/4") and Clamping Bars 1628 (Discontinued)
Part Number: 1628 (Discontinued)
Weight: 0.75 lb
Weight: 0.75 lb
Price: $14.95

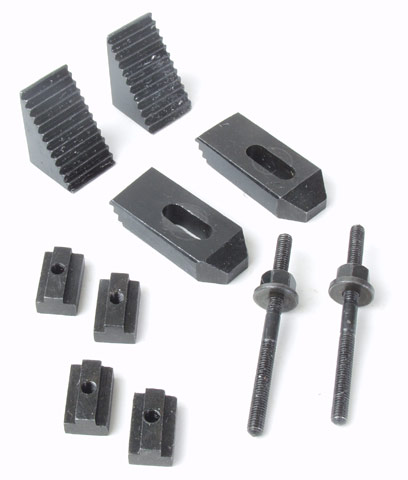

This set of T-slot nuts and clamping bars fits our 4" rotary table (PN 1627). The kit consists of:
Four T-slot nuts for 1/4" T-slots
Two studs
Two flange nuts
Two step clamps
Two step blocks
The studs are M5. The T-slot nuts are 0.32 tall and 0.50 wide. The top part is 0.22 wide. The base is 0.22 tall.
