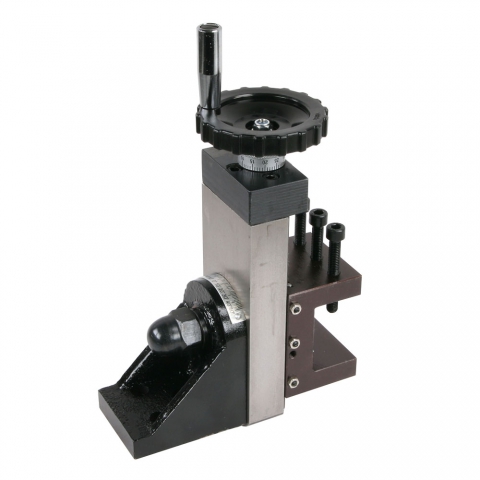

Milling Attachment, Mini Lathe
- Cast iron and steel with moulded handwheel
- Replaces the compound rest
- Travel is 3.6"
- Dial graduations in 0.025 mm, 60 divisions
Weight: 12.3 lb
Price: $249.95
This product is currently backordered.
Estimated availability:
16-Nov-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
The vise opening is 1.9". The width of the vise is 2.6" and the depth is 1.4".
The travel is 3.6". The dial is graduated in 0.025 mm (approximately 0.001") and there are 60 divisions, so the advance is 1.5 mm (0.059") per revolution.
This lathe milling machine attachment should work on most any lathe with 7" or greater swing with the addition of a shop-made adapter block to adapt the bolt pattern to fit the lathe.
Compatibility
This product works with these LittleMachineShop.com products:
- 2224 Drawbar, 3MT x 3/8"-16, 7x14 Mini Lathe
- 1873 Drawbar, 3MT x 3/8"-16, Mini Lathe
- 1632 End Mill Holder, 3MT, 3/8"
- 1242 End Mill Set, 6 Piece 2 Flute, HSS
- 1243 End Mill Set, 6 Piece 4 Flute, HSS
- 3844 Tooling Plate, Milling Attachment
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3005 7x12 Mini Lathe (Imperial)
- Warco 3004 7x12 Mini Lathe (Metric)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- BD-920N Jet 9x20 Lathe
- Grizzly G4000 9x19 Bench Lathe
- Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
