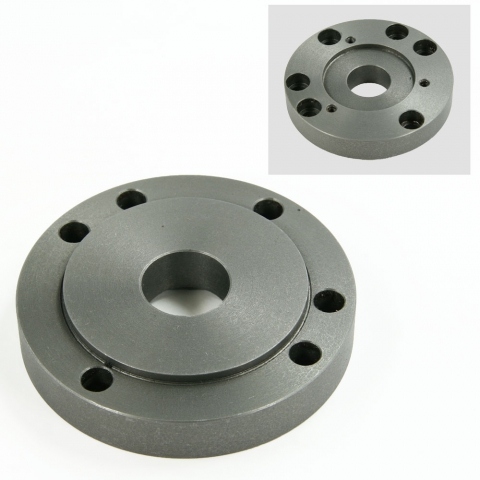

Adapter, 4" Lathe Chuck
- Compatible with 4" 3- or 4-Jaw Lathe Chucks on Mini Lathes
- Use with Chucks with a 72 mm Registration Recess Diameter
- Cast Iron
- Net Thickness of 0.66"
Part Number: 1692
Weight: 1.81 lb
Weight: 1.81 lb
Price: $49.95
This product is currently backordered.
Estimated availability:
29-Nov-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
Share this page:
http://lmscnc.com/1692
http://lmscnc.com/1692
Related Products
This adapter lets you mount 4" 3- or 4-jaw lathe chucks on your mini lathe.
Use this adapter with chucks that have a 72 mm registration recess diameter.
The adapter mounts to the 3-hole pattern on the spindle so it works on spindles with only three holes.
This adapter is cast iron and has a net thickness of 0.66". The net thickness is the distance from the rim of the lathe spindle to the back of the chuck.
Chris' Tips| Outside Diameter | Ø 3.9" (100 mm) |
| Center Hole | Ø 1.0" (25 mm) |
| Spindle Side Registration Recess | Ø 2.2" (55 mm) |
| Spindle Side Bold Circle | Ø 2.6" (66 mm) |
| Chuck Side Registration Boss | Ø 2.8" (72 mm) |
| Chuck Side Bolt Circle | Ø 3.3" (84 mm) |
| Chuck Mounting Holes | 3-bolt & 4-bolt patterns |
Compatibility
This product works with these LittleMachineShop.com products:
- 1222 Studs & Nuts, M6
This product works with lathes with a 80 mm flange chuck mount including:
- Grizzly M1015 Shop Fox 6x10 Micro Lathe
- Micro-Mark 85181 MicroLux 6x10 Micro Lathe
- SIEG C1 6x10 Micro Lathe
- Woodstock International M1015 Shop Fox 6x10 Micro Lathe
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
