Tool Bit, 1/4" x 2-1/2", T-15 HSS, A R Warner
- 1/4 square 2-1/2 inch long
- T-15 High Speed Steel
- American Made
Part Number: 1717
Weight: 0.05 lb
Weight: 0.05 lb
Price: $13.95
Share this page:
http://lmscnc.com/1717
http://lmscnc.com/1717

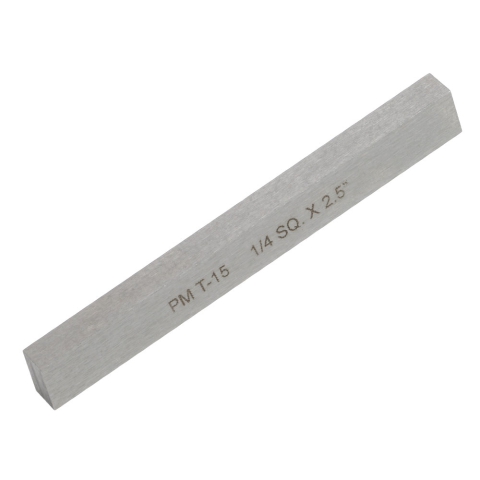

1/4" Square 2-1/2" Long HSS Tool Bit.
These are American-made tool bits made of T-15 high speed steel.
Chris' TipsT-15 is a grade of cobalt tool steel, which offers the highest hardness of most common high speed steel grades.
This heavy-duty, high-speed steel grade offers maximum cutting-edge endurance and wear resistance due to its high Vanadium content. The Cobalt content additionally lends it high temperature hardness and resistance to tempering.
Make sure you get the correct inserts for your indexable turning tools.
Our chart of indexable inserts shows which inserts to use with each of our indexable tools.
Typical Chemistry
• Carbon 1.60%
• Manganese 0.30%
• Chromium 4.00%
• Vanadium 4.90%
• Silicon 0.30%
• Tungsten 12.00%
• Cobalt 5.00%
• Sulfur 0.06%
Typical Hardness
• Rc 65-68
Compatibility
This product works with these LittleMachineShop.com products:
This product works with lathes with a 0.25 to 0.38 inch tool bit size including:
- Sherline 4000/4100 3.5x8 Lathe
- Sherline 4400/4410 3.5x17 Lathe
- Grizzly G0745 4x6 Micro Metal Lathe
- Harbor Freight 95012 Central Machinery 4x5 Micro Lathe
- SIEG C0 4x5 Lathe
- Proxxon PD 230/E 4.4x9 Lathe
- Taig Micro Lathe II 4x9 Micro Lathe
- Grizzly M1015 Shop Fox 6x10 Micro Lathe
- Micro-Mark 85181 MicroLux 6x10 Micro Lathe
- SIEG C1 6x10 Micro Lathe
- Woodstock International M1015 Shop Fox 6x10 Micro Lathe
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- SIEG C4 8.5x16 Bench Lathe
- Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
- Grizzly G0516 10x21 Lathe Mill Combo
- SIEG M6 10x21 Lathe Mill Combo
