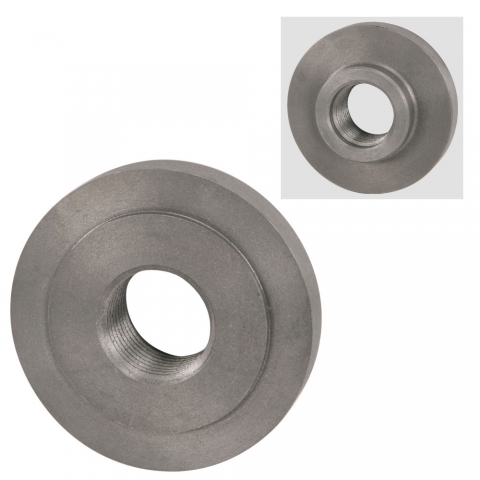

Chuck Adapter, 1-1/2"-8 Thread 4" Diameter
- Cast iron lathe chuck backplate adapter fits lathes with 1-1/2"-8 spindle nose thread
- Adapter is 4" (100 mm) in diameter and has no chuck mounting holes
- For all 3" chucks and 4" 4-jaw chucks
- Includes instructions for final turning of the registration diameter to ensure concentricity
Part Number: 1792
Weight: 2.10 lb
Weight: 2.10 lb
Price: $34.95
Share this page:
http://lmscnc.com/1792
http://lmscnc.com/1792
See LittleMachineShop.com PN 1918 for a 4" diameter adapter pre-drilled for a 3-jaw chuck.
*NOTE* These adapters require machining on the lathe on which they will be used.
Instructions are included for final turning of the registration diameter on your lathe to ensure perfect concentricity.
Chris' TipsWOODWORKERS: Our threaded adapters are not suitable for use on wood turning lathes. Please do not purchase them for this application. These adapters require machining on the lathe on which they will be used, and this is impossible on a wood lathe.
| Nominal Size | 4" |
| Outside Diameter | Ø 3.9" (100 mm) |
| Thread | 1.5"-8 |
| Bolt Holes | None |
| Hub Diameter | Ø 2.2" (56 mm) |
| Hub Length | Ø 0.6" (14 mm) |
| Flange Thickness | Ø 0.6" (16 mm) |
| Registration Boss | Ø 0.1" (3 mm) |
| Registration Diameter | Ø 2.8" (72 mm) |
