Dial Indicator, 1", Starrett

Range: 1.000"
Face diameter: 2-1/4"
Graduations: 0.001"
Shockless, hardened steel gear train and jewel bearings
Lug on center of the back

Part Number: 1835
Weight: 0.50 lb

Price: $186.00

Share this page:
http://lmscnc.com/1835

Description

Starrett catalog number 25-441J.

These indicators have a shockless, hardened steel gear train and jewel bearings. They are furnished with a lug on the center of the back.

This is an AGD Group 2 indicator with a 2.25" Diameter face, 0.375" shank, and #4-48 tip thread.

Chris' Tips

Chris' Tips
At rest, an indicator’s needle points at a random position, usually in the 10 o’clock range. This is completely normal, as the needle’s position at rest is irrelevant to the use of an indicator.

An indicator is only useful when the tip is bearing against a surface to be measured. The action of pressing the tip against the surface moves the needle, also to some random position. But this position is relevant; turn the bezel so that the needle is pointing at zero. Now you can make measurements, both positive and negative, relative to the starting position.

AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Specifications
Range	0" - 1" (0 mm - 25 mm)
Resolution	0.001" (0.03 mm)
A.G.D. Group	2
Face Diameter	2.25" (57.1 mm)
Shank Size	0.375" (9.52 mm)
Thread Tip	#4-48
Dial Reading	0-100-0
Revolution	0.100" (2.54 mm)
Type	Lug backing
Dial Face	Continuous Dial

Photos

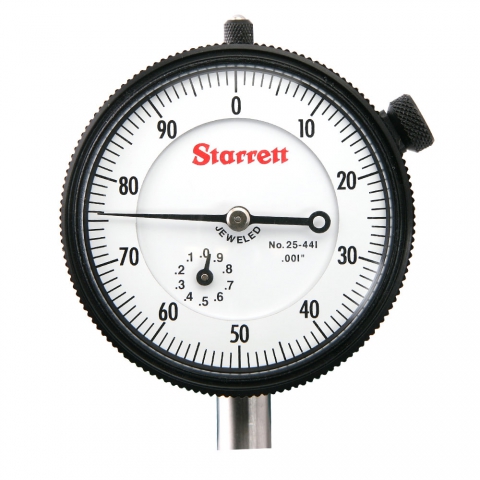

Dial Face
