Adapter, 3" Lathe Chuck, Rotary Table
- For rotary tables with 24 mm registration hole in center
- This adapter is included with the 1810 rotary table and 2183 rotary table package
- Use with a 3" 3- or 4-jaw lathe chuck
- Compatible with rotary table with 2 Morse taper center hole
Part Number: 1888
Weight: 1.44 lb
Weight: 1.44 lb
Price: $34.95
Share this page:
http://lmscnc.com/1888
http://lmscnc.com/1888

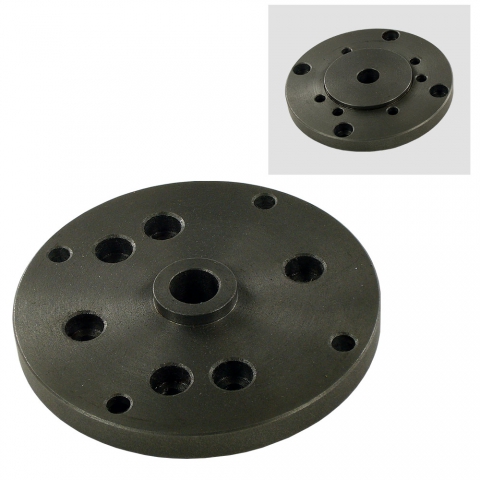

3" Lathe chuck adapter.
This adapter lets you mount a 3" 3- or 4-jaw lathe chuck on a rotary table with a 2 Morse taper center hole. There is an alignment boss that projects into the tapered hole for quick alignment. It is clamped to the rotary table with T-slot nuts that are not included.
You will need to machine the alignment boss to fit your rotary table.
| Outside Diameter | Ø 3.9" (100 mm) |
| Center Hole | Ø 0.6" (14 mm) |
| Table Side Registration Boss | Ø 0.9" (24 mm) |
| Table Side Bolt Circle | Ø 3.6" (91 mm) |
| Adapter Mounting Holes | 4 |
| Chuck Side Registration Boss | Ø 2.2" (55 mm) |
| Chuck Side Bolt Circle | Ø 2.6" (66 mm) |
| Chuck Mounting Holes | 6 |
