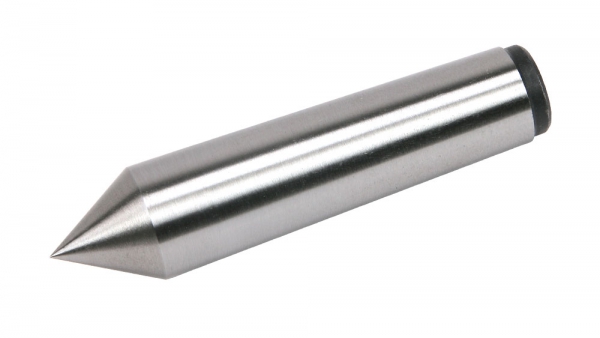

Dead Center, 2MT
- Solid 2 Morse taper dead center
- 60 degree included point angle
- 0.708" (18 mm) diameter
- 3.09" (78.5 mm) overall length
Part Number: 1890
Weight: 0.25 lb
Weight: 0.25 lb
Price: $6.80
Share this page:
http://lmscnc.com/1890
http://lmscnc.com/1890
This center fits the tailstock of the mini lathe. This center is made from hardened steel and ground for accuracy. The point is a 60ยบ included angle.
Chris' TipsUse this to turn between centers, using a live center in the tail stock, and a lathe dog to drive the part.
Compatibility
This product works with lathes with a 2 Morse taper spindle taper and a 2 Morse taper tailstock taper and a short 2 Morse taper tailstock taper including:
- Grizzly M1015 Shop Fox 6x10 Micro Lathe
- Micro-Mark 85181 MicroLux 6x10 Micro Lathe
- SIEG C1 6x10 Micro Lathe
- Woodstock International M1015 Shop Fox 6x10 Micro Lathe
- Emco Compact 5 5x14 Lathe
- Prazi SD300 5x12 Lathe
- Craftsman & Atlas 612 6x18 Lathe
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- Prazi SD400 7x16 Lathe
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- Emco Compact 8 8x17 Lathe
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
- BD-920N Jet 9x20 Lathe
- Grizzly G4000 9x19 Bench Lathe
- Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
- SIEG C6 10x21 Lathe
- Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
- Grizzly G0516 10x21 Lathe Mill Combo
- Prazi SD500 10x20 Lathe
- SIEG M6 10x21 Lathe Mill Combo
- SIEG C8 11x24 Lathe
In your instruction manual, this part appears on the parts list as:
