Clamping Kit, 6 mm T-Slot, 16-Piece
- Four T-slot nuts for 6 mm T-slots
- Four studs of two different lengths
- Two flange nuts
- Two step clamps
- Two pair step blocks
Part Number: 1943
Weight: 1.15 lb
Weight: 1.15 lb
Price: $23.95
Share this page:
http://lmscnc.com/1943
http://lmscnc.com/1943
This set of T-slot nuts and clamping bars fits our 4" H/V rotary table (PN 1927). This mill clamp set also fits Taig micro mills. (See the Compatibility tab for machines that work with this product.)

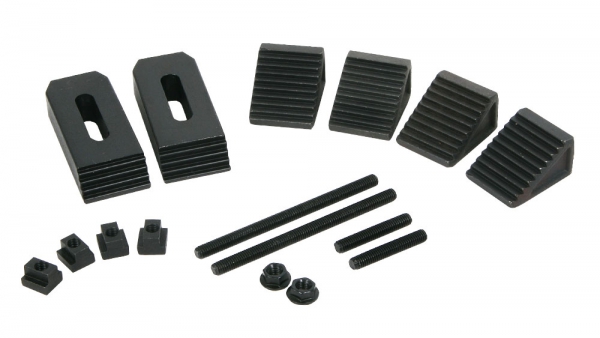

The clamping kit includes 4 studs of two different lengths, 4 step blocks in pairs, 4 T-slot nuts, 2 flange nuts, and 2 step clamps.
The stated dimension of the clamping kit is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.27" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.0 mm |
4 mm |
10 mm |
10 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M8 |
12 mm |
7 mm |
18 mm |
18 mm |
Nominal Sizes for 6 mm T-Slot Nut
 |
Compatibility
This product works with these LittleMachineShop.com products:
This product works with mills with a 0.22 to 0.25 inch T-slot width including:
- Proxxon FF 230 Micro Mill
- Taig 2018 Micro Mill
- Taig 2019 Micro Mill
- Taig 5019 Micro Mill
Upgrade Kit, Mini Mill
Test Indicator Holder, Professional Grade
