Rotary Table, 4" H/V - Precision

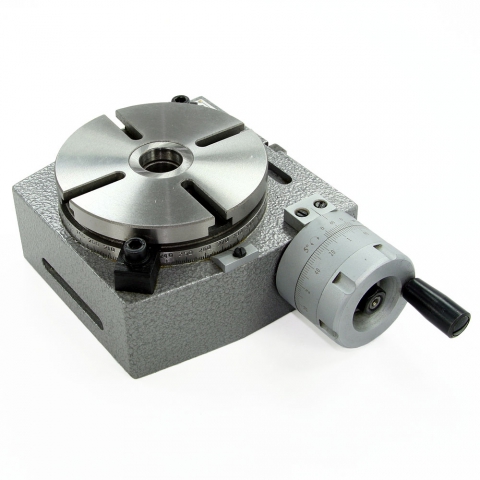

Rotary Table, 4" H/V - Precision
  • 4" (100 mm) diameter
  • Use in horizontal or vertical position
  • Worm ratio is 72 to 1
  • 10 second rotational accuracy
  • 2 Morse taper center hole
Part Number: 1927
Weight: 17.0 lb

Price: $619.95

In stock
Quantity:

This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The meehanite cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a ten second accuracy vernier scale is provided. The rotary table has lock down clamps and the crank can be disengaged.

The worm gear and center hole are hardened and ground.

The table is 2.76" high when horizontal, and the centerline is 2.76" above the table when in the vertical position.

The worm ratio is 72 to 1.

Flatness of clamping surface: 0.0006" TIR

Parallelism of clamping surface to base: 0.0008" TIR

Squareness of clamping surface to angle face: 0.0004" TIR

Squareness of clamping surface to center slot: 0.0008" TIR

Concentricity of center bore: 0.0008" TIR

Maximum spacing error: 1 minute, 20 seconds.

Chris Chris' Tips
The 4" H/V rotary table work with this tail stock, and this dividing plate set.

We provide rotary table instructions and dividing plate instructions.

See the comparison of the specifications for the 4" rotary tables we carry.

Specifications
Ratio 72:1
Table Diameter 3.9" (100 mm)
Height (mounted horizontal) 2.8" (70 mm)
Body Length 4.9" (125 mm)
Body Width 5.0" (128 mm)
Center Hole Taper 2 Morse Taper
Center Height (mounted vertically) 2.76" (70.0 mm)
T-slot Width 0.24" (6.0 mm)
Minimum Vernier Reading 10"
Flatness of table surface (concave) 0.0006" (0.015 mm)
Parallelism of table surface to base 0.0008" (0.020 mm)
Squareness of table surface to base 0.0004" (0.010 mm)
Runout of table surface 0.0008" (0.020 mm)
Runout of center taper 0.0006" (0.015 mm)
Squareness of table surface to angle face slot 0.0006" (0.015 mm)
Center hole parallel with the angle face 0.0006" (0.015 mm)
Maximum spacing error 120"

Alternate Views for 4 inch Horizontal/Vertical Rotary Table

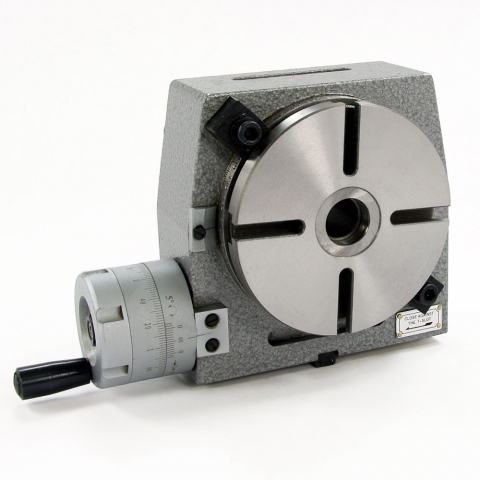

Four inch horizontal/vertical rotary table; vertical orientation Rotary table oriented in vertical position.

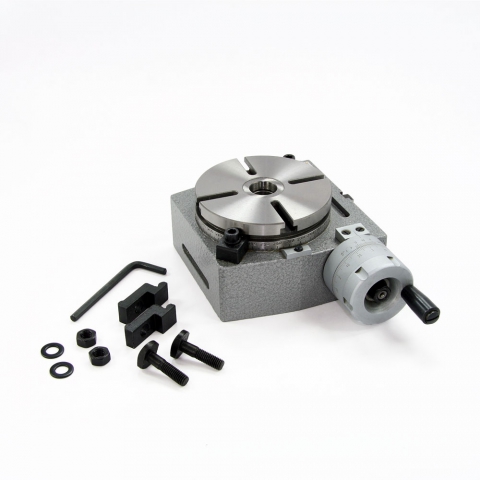

Four inch horizontal/vertical rotary table; full kit contents Four inch H/V Rotary with included parts.

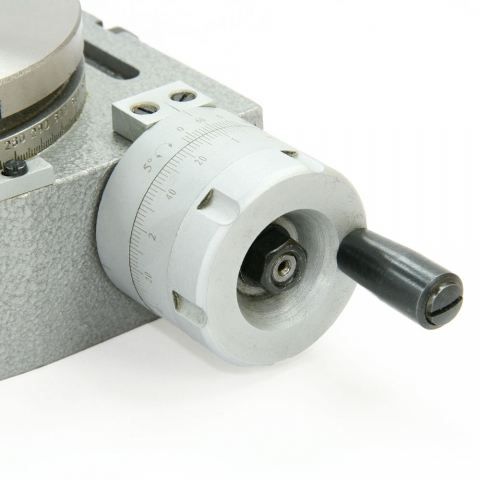

Four inch horizontal/vertical rotary table; dial closeup Detail of Dial

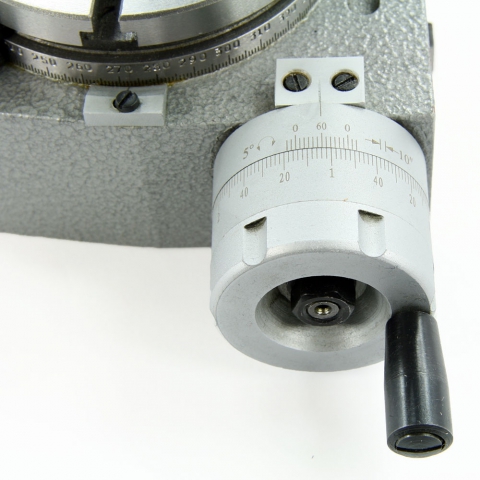

Four inch horizontal/vertical rotary table; dial closeup Detail of Dial

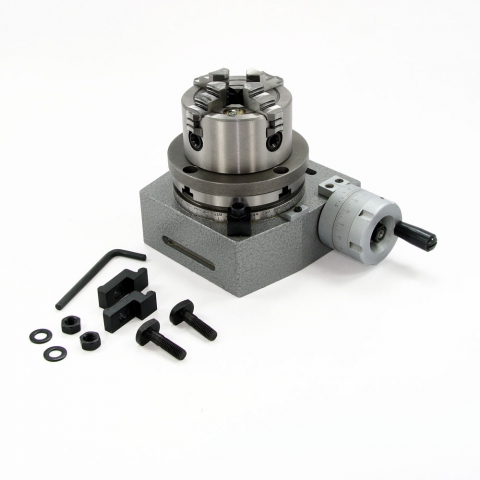

Four inch horizontal/vertical rotary table; with lathe chuck mounted Rotary table with 4-jaw 3 inch lathe chuck - part #1175 and 3 inch lathe chuck adapter.
Chuck adapter and chuck are not included with this rotary table.

For a 3-jaw lathe chuck, see Product #1187 3-jaw 3 inch lathe chuck.
Save on table and chuck packages. Visit our Rotary Table Packages for all our different combinations.
