Rotary Table, 4" H/V - Precision

Rotary Table, 4" H/V - Precision

1927

$749.95 USD
$749.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • 4" (100 mm) diameter
  • Use in horizontal or vertical position
  • Worm ratio is 72 to 1
  • 10 second rotational accuracy
  • 2 Morse taper center hole

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

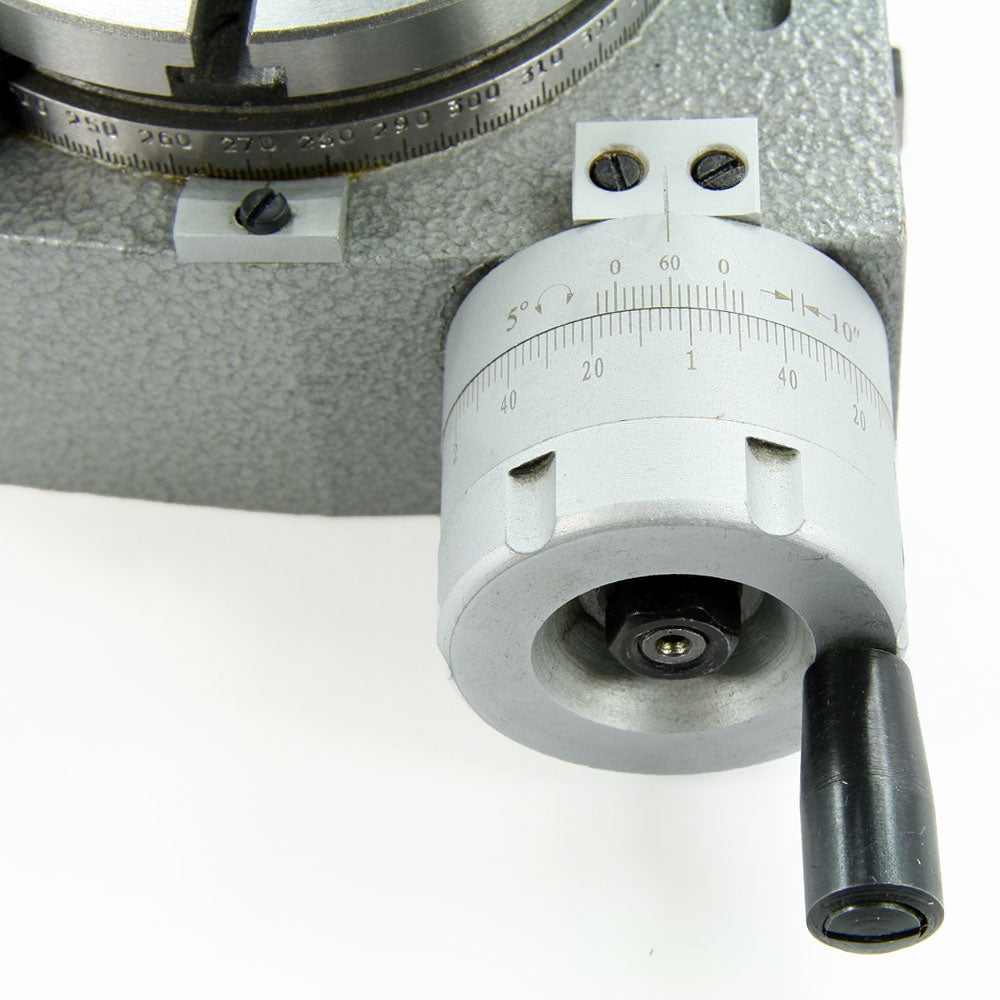

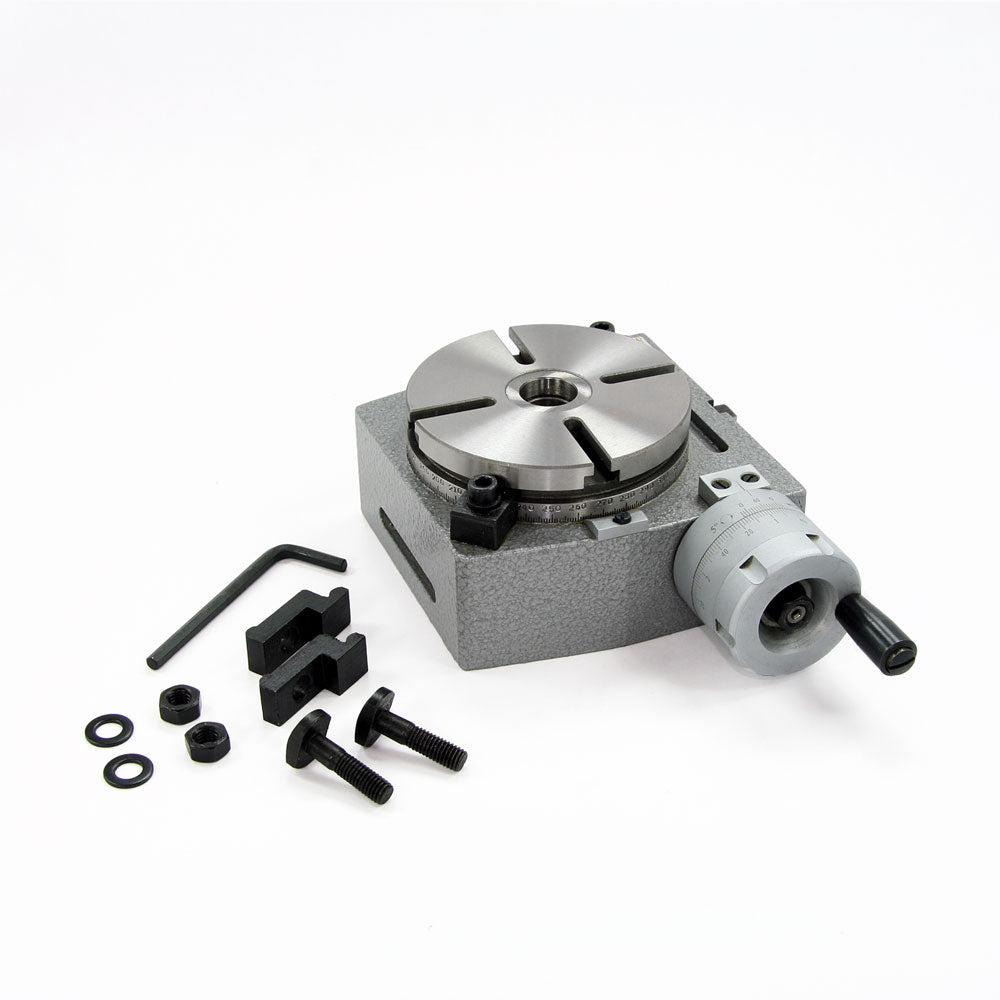

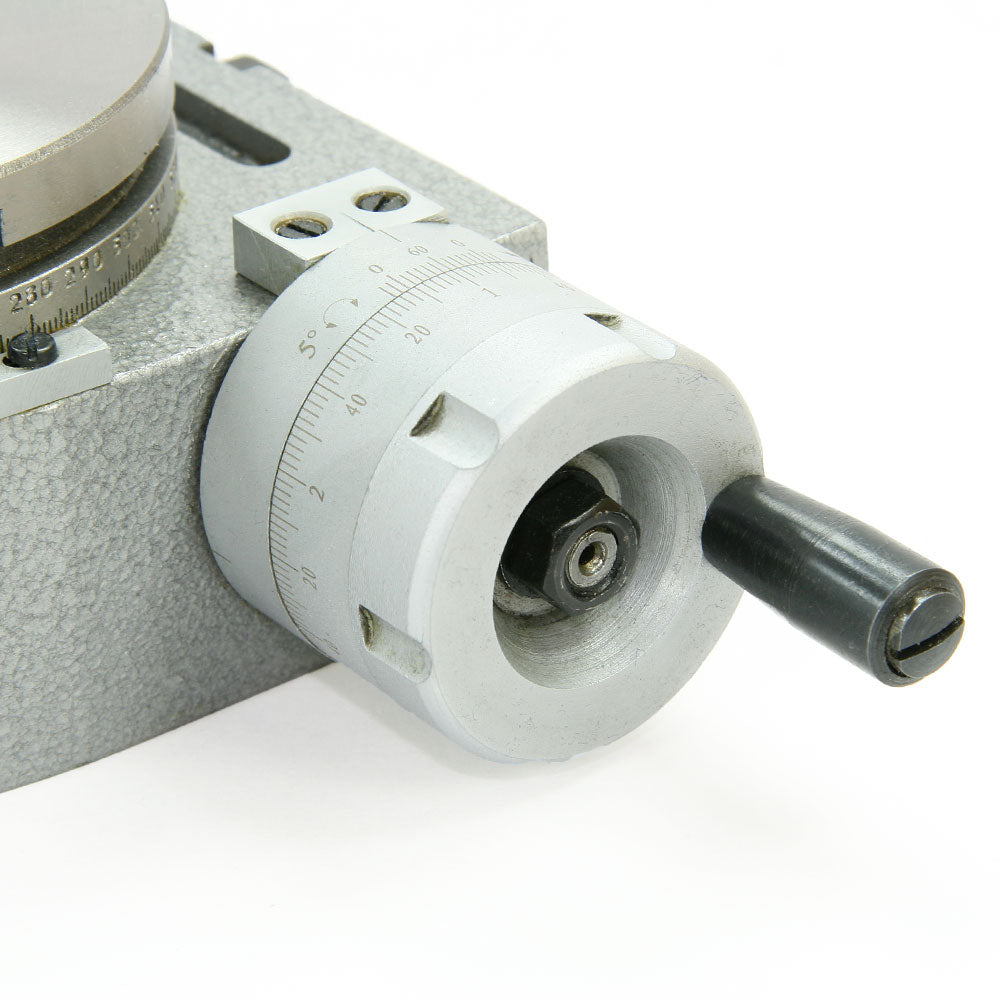

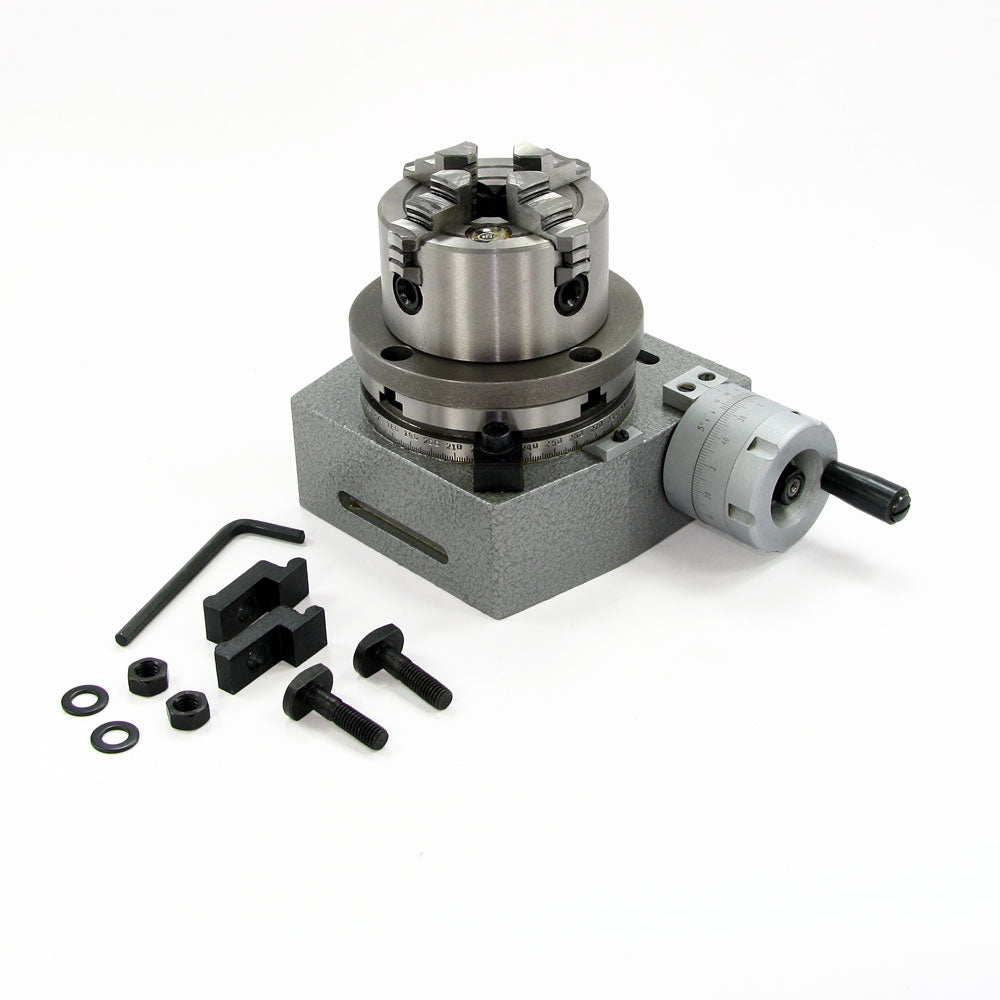

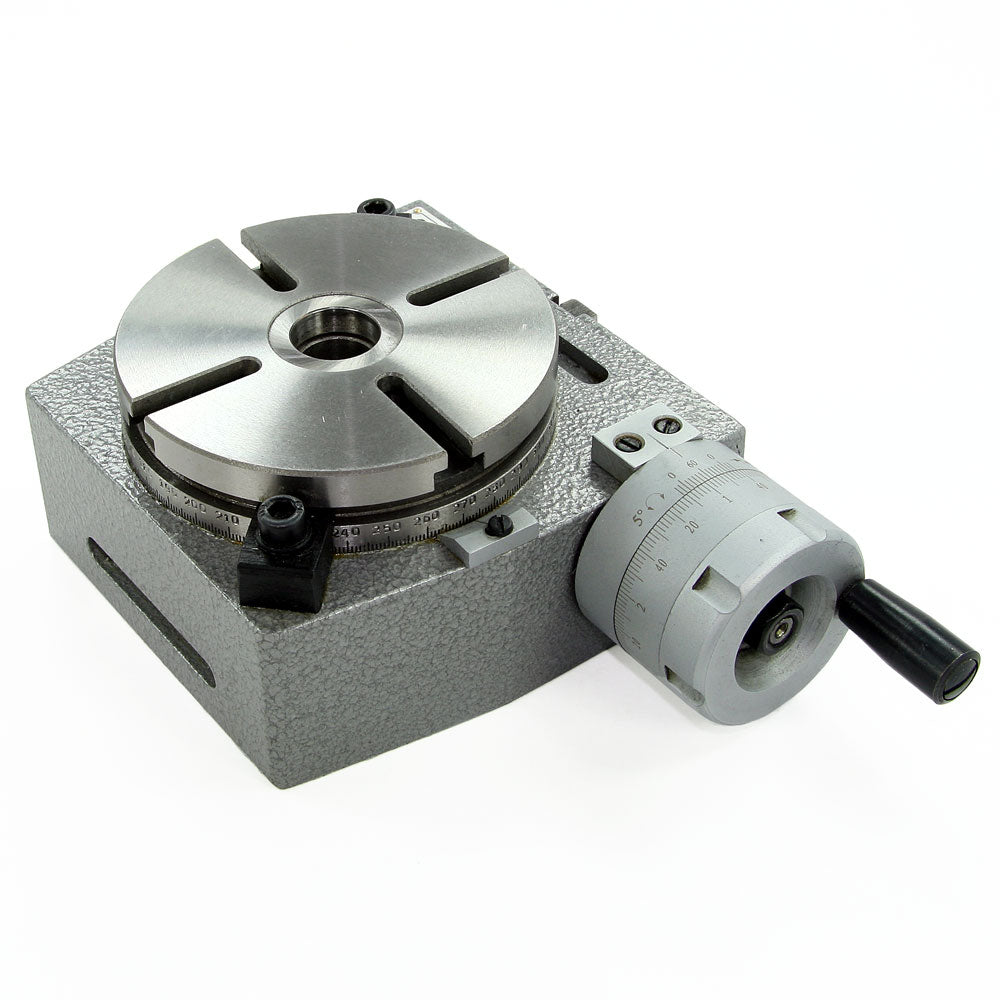

This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The meehanite cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a ten second accuracy vernier scale is provided. The rotary table has lock down clamps and the crank can be disengaged.

The worm gear and center hole are hardened and ground.

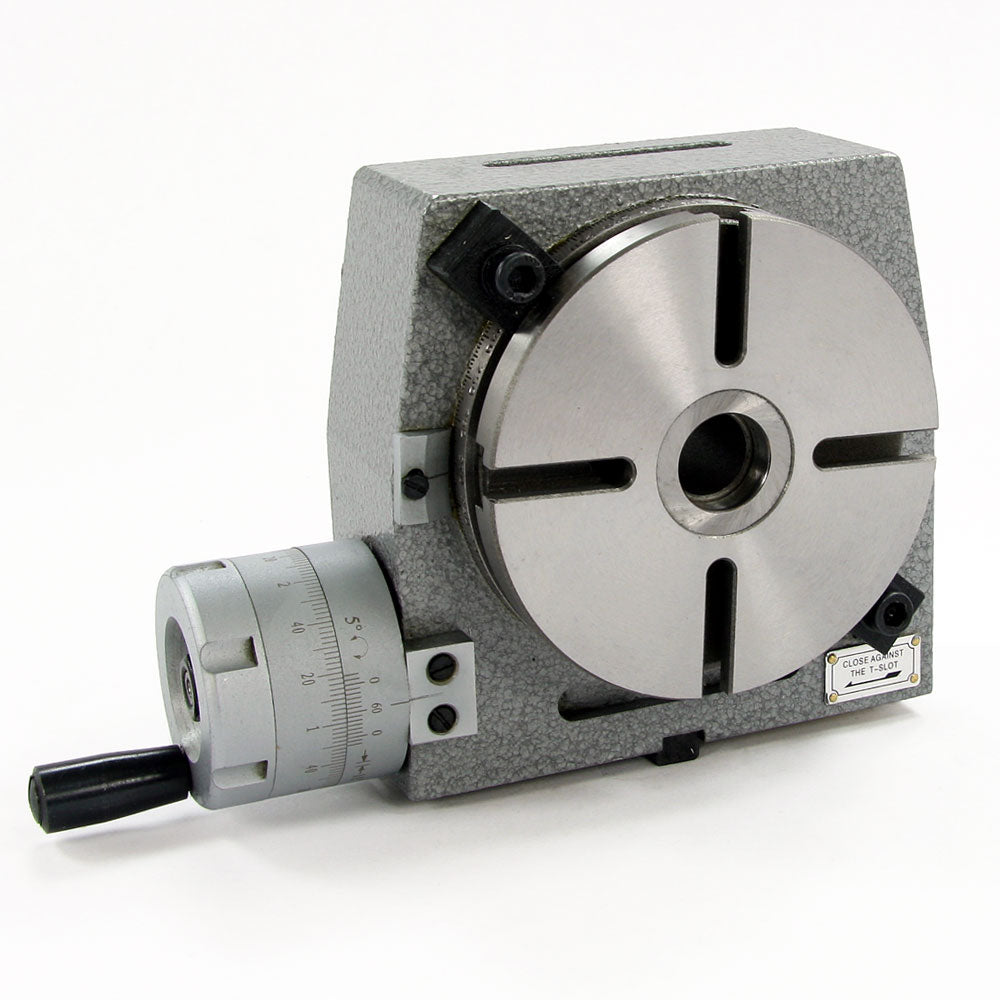

The table is 2.76" high when horizontal, and the centerline is 2.76" above the table when in the vertical position.

The worm ratio is 72 to 1.

Flatness of clamping surface: 0.0006" TIR

Parallelism of clamping surface to base: 0.0008" TIR

Squareness of clamping surface to angle face: 0.0004" TIR

Squareness of clamping surface to center slot: 0.0008" TIR

Concentricity of center bore: 0.0008" TIR

Maximum spacing error: 1 minute, 20 seconds.

Chris's Tips

The 4" H/V rotary table work with this tail stock, and this dividing plate set.

See the comparison of the specifications for the rotary tables we carry.

Specifications

Ratio: 72:1

Table Diameter: 3.937" (100 mm)

Height (mounted horizontal): 2.756" (70 mm)

Body Length: 4.921" (125 mm)

Body Width: 5.039" (128 mm)

Center Hole Taper: 2 Morse Taper

Center Height (mounted vertically): 2.756" (70 mm)

T-slot Width: 0.236" (6 mm)

Minimum Vernier Reading: 10"

Flatness of table surface (concave): .0006" (0.015 mm)

Parallelism of table surface to base: .0008" (0.020 mm)

Squareness of table surface to base: .0004" (0.010 mm)

Runout of table surface: 0.001" (.02 mm)

Runout of center taper: 0.001" (.015 mm)

Squareness of table surface to angle face slot: 0.001" (.015 mm)

Center hole parallel with the angle face: 0.001" (.015 mm)

Maximum spacing error: 120"
