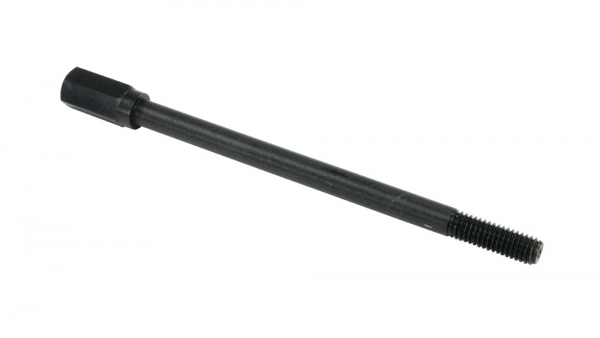

Drawbar, 2MT x 3/8"-16, Micro Mill

For SIEG X1 class of micro mills
3/8"-16 thread
For 2MT spindle
5-5/8" long when measured like a bolt

Part Number: 2034
Weight: 0.30 lb

Price: $9.95

Share this page:
http://lmscnc.com/2034

This drawbar is for the micro mill. It has a 3/8"-16 drawbar thread which is needed for American Tooling. If you need the metric drawbar that typically comes with X1 Micro Mills from the factory, see product #2088

See compatibility tab for reference to machines or other related products that use this product. See Used On tab for reference to machines using this part and the corresponding drawing number.

Compatibility

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

Clarke CMD10 Metalworker Micro Mill
Harbor Freight 47158 Central Machinery Micro Mill
SIEG X1 Micro Mill

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
77	Harbor Freight 47158 Central Machinery Micro Mill Clarke CMD10 Metalworker Micro Mill Various X1-US SIEG Micro Mill

Click your model to see the complete parts list.
