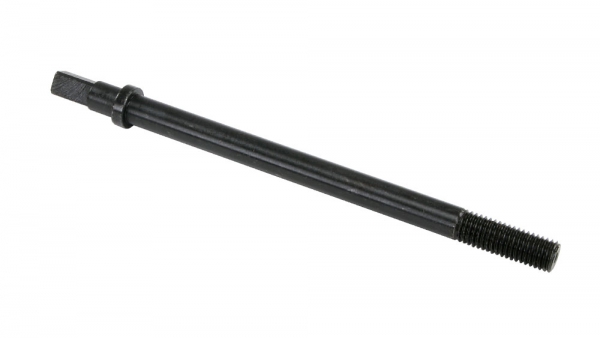

Drawbar, X1 Micro Mill, Metric Thread
- For SIEG X1 class of micro mills
- M10 thread
- For 2MT spindle
- 5.625" (143 mm) long when measured like a bolt
Metric thread drawbar for SIEG X1 class of micro mills with a 2 morse taper spindle. Overall length is 5 5/8" (143 mm) long when measured like a bolt. This drawbar is what is typically shipped with an X1 micro mill. If you desire 16TPI threading for American tooling, see part #2034.
Note: Does not fit the HiTorque Micro Mills, it is too short for the redesigned headstock.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
|77||Harbor Freight 47158 Central Machinery Micro Mill|
Clarke CMD10 Metalworker Micro Mill
Various X1-US SIEG Micro Mill
