Bench Grinder, 8" Low Speed
- Powerful 1 HP motor
- No load speed 1750 RPM
- Adjustable tool rests
- Adjustable safety eye shield and spark resistors
Part Number: 6242
Weight: 60.0 lb
Weight: 60.0 lb
Price: $299.95
Share this page:
http://lmscnc.com/6242
http://lmscnc.com/6242

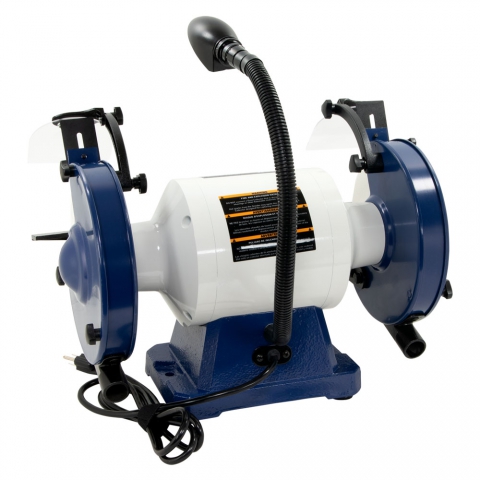

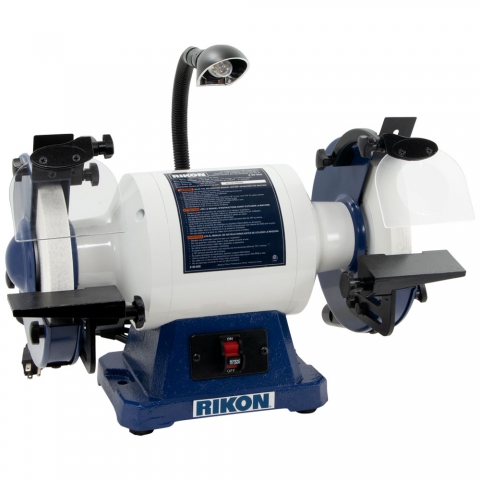

This 1 HP Low Speed Bench Grinder has a larger size motor and will tackle the tough grinding jobs that are typical in machine shops, as well as the finesse to shape and sharpen hand tools.
Tool rests on this machine are extra-large and flat, without a drill bit sharpening groove. Wheel flanges are cast metal. Grinder includes dual dust collection ports on the rear of the wheel guards.
The grinder comes with 90 grit and 120 grit white grinding wheels.
This is Rikon model 80-808
Chris' Tips| Wheel Diameter | 8" (203 mm) |
| Wheel Width | 1.0" (25 mm) |
| Arbor Diameter | 0.625" (15.88 mm) |
| Motor | 1.0 hp (746 Watts) |
| Arbor Speed (No Load) | 1750 RPM |
| Power Requirements | 120 V 60 Hz 7 Amps |
| Machine Weight | 54 lbs (25 kg) |
| Crated Weight | 59 lbs (27 kg) |
| Carton Dimensions (Wxdxh) | 24.0" x 15.4" x 14.0" (610 mm x 391 mm x 356 mm) |
 |
Reverse View |
 |

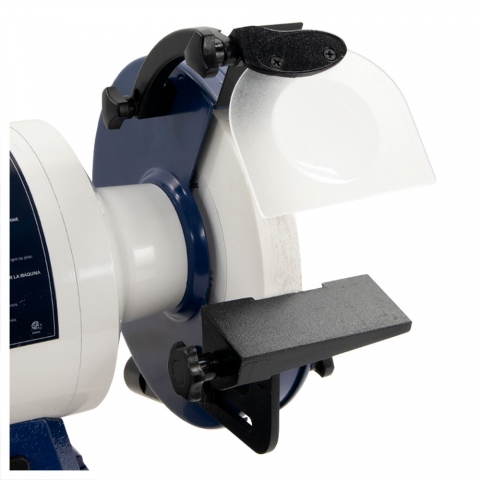

Right Grinding Wheel, Tool Rest and Safety Sheild with 2x Magnifier |
 |

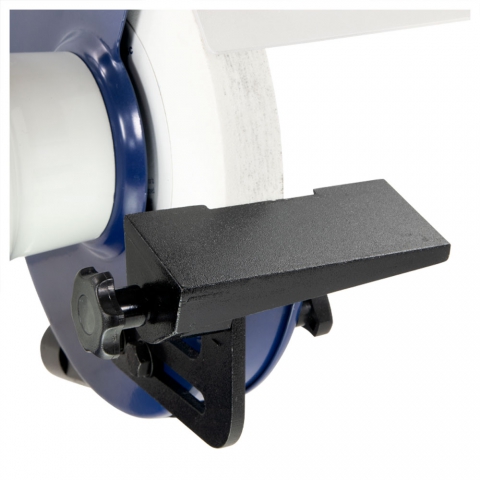

Right Adjustable Tool Rest |
 |

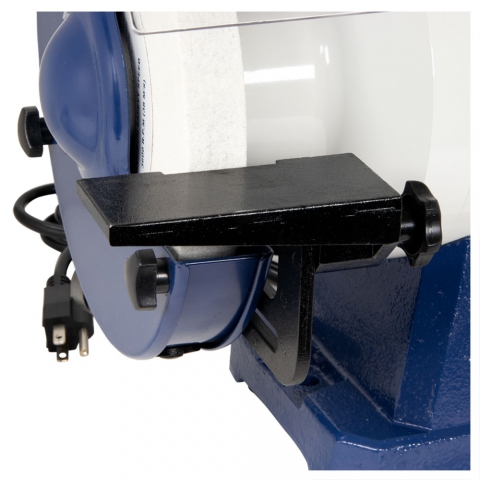

Left Adjustable Tool Rest |
 |

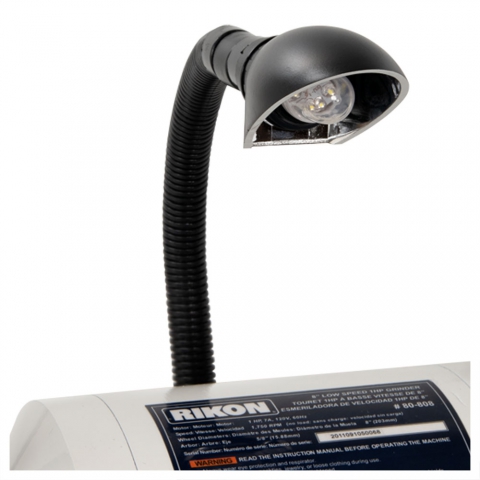

Flexible Work Light |
 |

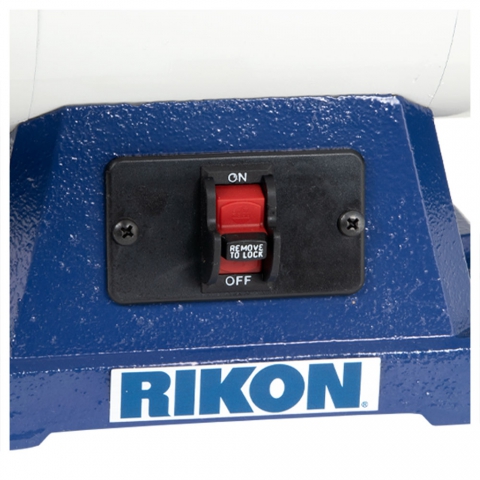

Power Switch and Base |
